Фрезы Iscar с режущими сменными твердосплавными пластинами для контурного фрезерования на станках с ЧПУ сложнопрофильных поверхностей PROFILING TOOLS 230 BA

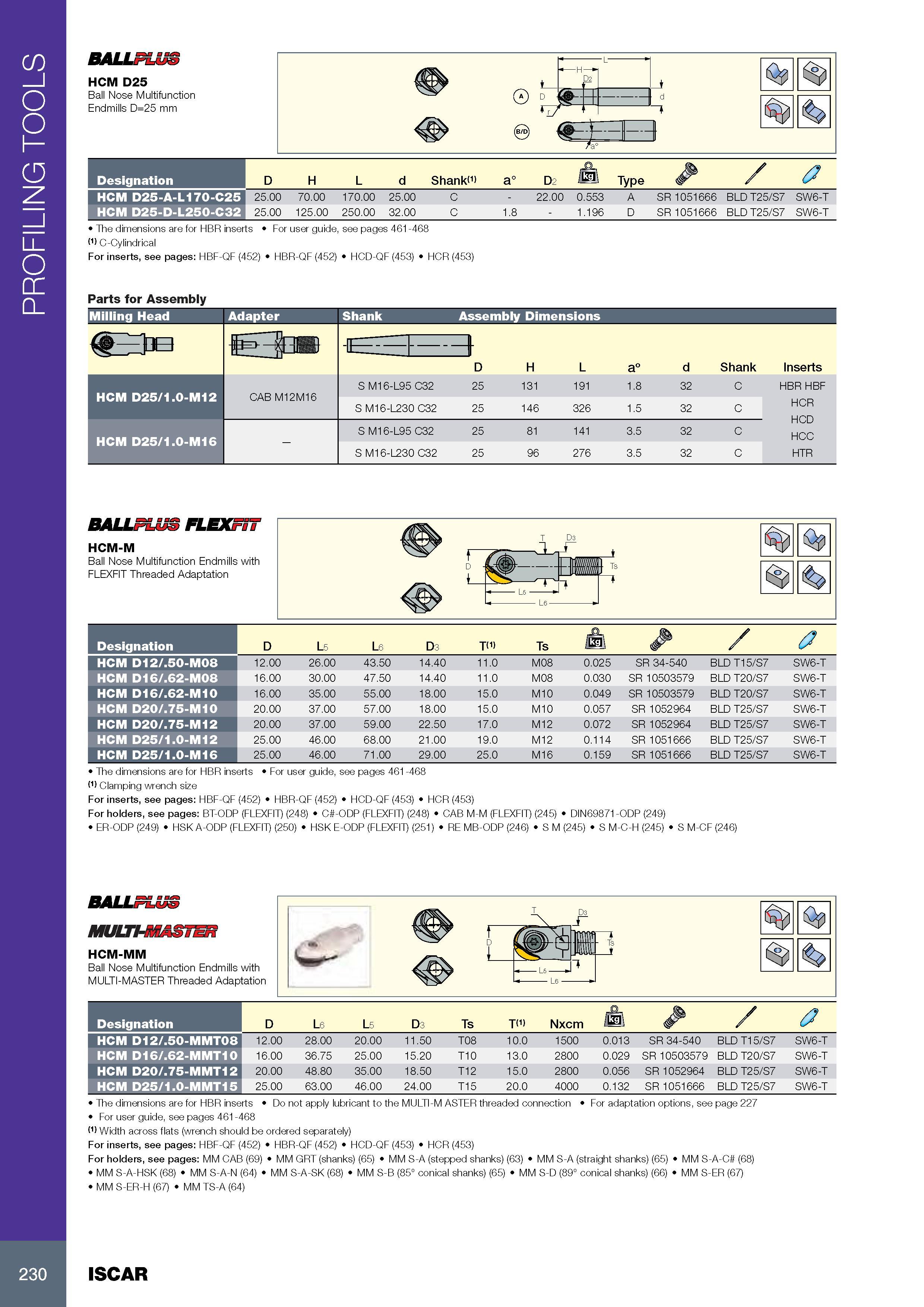

Фрезы Iscar с режущими сменными твердосплавными пластинами для контурного фрезерования на станках с ЧПУ сложнопрофильных поверхностей PROFILING TOOLS 230 BALLPLUS HCM D25 Ball Nose Multifunction Endmills D=25 mm Обозначение Designation D H L d Shank a° D2 Type / HCM D25-A-L170-C25 25.00 70.00 170.00 25.00 C - 22.00 0.553 A SR 1051666 BLD T25/S7 SW6-T HCM D25-D-L250-C32 25.00 125.00 250.00 32.00 C 1.8 - 1.196 D SR 1051666 BLD T25/S7 SW6-T The dimensions are for HBR inserts For user guide, see pages 461-468 (1) C-Cylindrical For inserts, see pages: HBF-QF (452) HBR-QF (452) HCD-QF (453) HCR (453) Parts for Assembly Milling Head Adapter Shank Assembly Размеры в мм Dimensions it i ffRIM I 3= AT 111111 prr j-" D H L a° d Shank Inserts HCM D25/1.0-M12 CAB M12M16 S M16-L95 C32 25 131 191 1.8 32 C HBR HBF S M16-L230 C32 25 146 326 1.5 32 C HCR 1 ipn HCM D25/1.0-M16 HCD S M16-L95 C32 25 81 141 3.5 32 C HCC S M16-L230 C32 25 96 276 3.5 32 C HTR BALLFLUS FLEXFiT HCM-M Ball Nose Multifunction Endmills with FLEXFIT Threaded Adaptation Обозначение Designation D L5 L6 D3 Ti1) Ts Ml / <7 HCM D12/.50-M08 12.00 26.00 43.50 14.40 11.0 M08 0.025 SR 34-540 BLD T15/S7 SW6-T HCM D16/.62-M08 16.00 30.00 47.50 14.40 11.0 M08 0.030 SR 10503579 BLD T20/S7 SW6-T HCM D16/.62-M10 16.00 35.00 55.00 18.00 15.0 M10 0.049 SR 10503579 BLD T20/S7 SW6-T HCM D20/.75-M10 20.00 37.00 57.00 18.00 15.0 M10 0.057 SR 1052964 BLD T25/S7 SW6-T HCM D20/.75-M12 20.00 37.00 59.00 22.50 17.0 M12 0.072 SR 1052964 BLD T25/S7 SW6-T HCM D25/1.0-M12 25.00 46.00 68.00 21.00 19.0 M12 0.114 SR 1051666 BLD T25/S7 SW6-T HCM D25/1.0-M16 25.00 46.00 71.00 29.00 25.0 M16 0.159 SR 1051666 BLD T25/S7 SW6-T The dimensions are for HBR inserts For user guide, see pages 461-468 (1) Clamping wrench size For inserts, see pages: HBF-QF (452) HBR-QF (452) HCD-QF (453) HCR (453) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) BALLFLUS MULTI-MASTER HCM-MM Ball Nose Multifunction Endmills with MULTI-MASTER Threaded Adaptation Обозначение Designation D L6 L5 D3 Ts T (1 Nxcm / 0 HCM D12/.50-MMT08 12.00 28.00 20.00 11.50 T08 10.0 1500 0.013 SR 34-540 BLD T15/S7 SW6-T HCM D16/.62-MMT10 16.00 36.75 25.00 15.20 T10 13.0 2800 0.029 SR 10503579 BLD T20/S7 SW6-T HCM D20/.75-MMT12 20.00 48.80 35.00 18.50 T12 15.0 2800 0.056 SR 1052964 BLD T25/S7 SW6-T HCM D25/1.0-MMT15 25.00 63.00 46.00 24.00 T15 20.0 4000 0.132 SR 1051666 BLD T25/S7 SW6-T The dimensions are for HBR inserts Do not apply lubricant to the MULTI-M ASTER threaded connection For adaptation options, see page 227 For user guide, see pages 461-468 (1) Width across flats (wrench should be ordered separately) For inserts, see pages: HBF-QF (452) HBR-QF (452) HCD-QF (453) HCR (453) For holders, see pages: MM CAB (69) MM GRT (shanks) (65) MM S-A (stepped shanks) (63) MM S-A (straight shanks) (65) MM S-A-C (68) MM S-A-HSK (68) MM S-A-N (64) MM S-A-SK (68) MM S-B (85° conical shanks) (65) MM S-D (89° conical shanks) (66) MM S-ER (67) MM S-ER-H (67) MM TS-A (64) ISCAR
