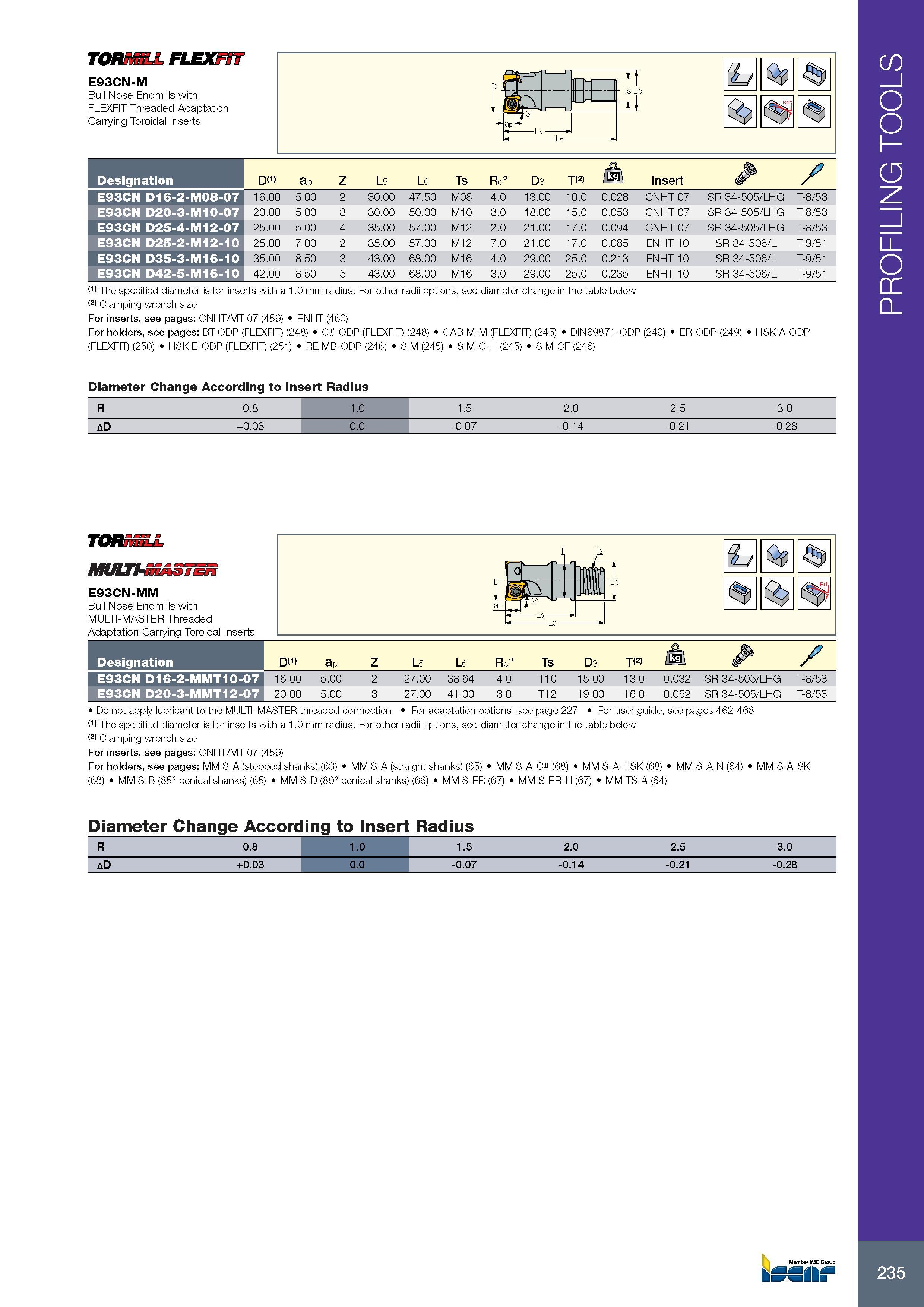

Фрезы Iscar с режущими сменными твердосплавными пластинами для контурного фрезерования на станках с ЧПУ сложнопрофильных поверхностей E93CN-M Bull Nose Endm

Фрезы Iscar с режущими сменными твердосплавными пластинами для контурного фрезерования на станках с ЧПУ сложнопрофильных поверхностей E93CN-M Bull Nose Endmills with F LEXFIT Threaded Adaptation Carrying Toroidal Inserts Обозначение Designation D(i) ap Z L5 L6 Ts R d° D3 T(2) / k i\ Insert / E93CN D16-2-M08-07 16.00 5.00 2 30.00 47.50 M08 4.0 13.00 10.0 0.028 CNHT 07 SR 34-505/LHG T-8/53 E93CN D20-3-M10-07 20.00 5.00 3 30.00 50.00 M10 3.0 18.00 15.0 0.053 CNHT 07 SR 34-505/LHG T-8/53 E93CN D25-4-M12-07 25.00 5.00 4 35.00 57.00 M12 2.0 21.00 17.0 0.094 CNHT 07 SR 34-505/LHG T-8/53 E93CN D25-2-M12-10 25.00 7.00 2 35.00 57.00 M12 7.0 21.00 17.0 0.085 ENHT 10 SR 34-506/L T-9/51 E93CN D35-3-M16-10 35.00 8.50 3 43.00 68.00 M16 4.0 29.00 25.0 0.213 ENHT 10 SR 34-506/L T-9/51 E93CN D42-5-M16-10 42.00 8.50 5 43.00 68.00 M16 3.0 29.00 25.0 0.235 ENHT 10 SR 34-506/L T-9/51 (1) The specified diameter is for inserts with a 1.0 mm radius. For other radii options, see diameter change in the table below (2) Clamping wrench size For inserts, see pages: CNHT/MT 07 (459) ENHT (460) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) Diameter Change According to Insert Radius R 0.8 1.0 1.5 2.0 2.5 3.0 aD +0.03 0.0 -0.07 -0.14 -0.21 -0.28 TORSELL MULTI-MASTER E93CN-MM Bull Nose Endmills with MULTI-MASTER Threaded Adaptation Carrying Toroidal Inserts Обозначение Designation D(i) ap Z L5 L6 Rd° Ts D 3 T(2) jD / k i\ / E93CN D16-2-MMT10-07 16.00 5.00 2 27.00 38.64 4.0 T10 15.00 13.0 0.032 SR 34-505/LHG T-8/53 E93CN D20-3-MMT12-07 20.00 5.00 3 27.00 41.00 3.0 T12 19.00 16.0 0.052 SR 34-505/LHG T-8/53 Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation options, see page 227 For user guide, see pages 462-468 (1) The specified diameter is for inserts with a 1.0 mm radius. For other radii options, see diameter change in the table below (2) Clamping wrench size For inserts, see pages: CNHT/MT 07 (459) For holders, see pages: MM S-A (stepped shanks) (63) MM S-A (straight shanks) (65) MM S-A-C (68) MM S-A-HSK (68) MM S-A-N (64) MM S-A-SK (68) MM S-B (85° conical shanks) (65) MM S-D (89° conical shanks) (66) MM S-ER (67) MM S-ER-H (67) MM TS-A (64) T Ts Diameter Change According to Insert Radius R 0.8 1.0 1.5 2.0 2.5 3.0 aD +0.03 0.0 -0.07 -0.14 -0.21 -0.28 PROFILING TOOLS
