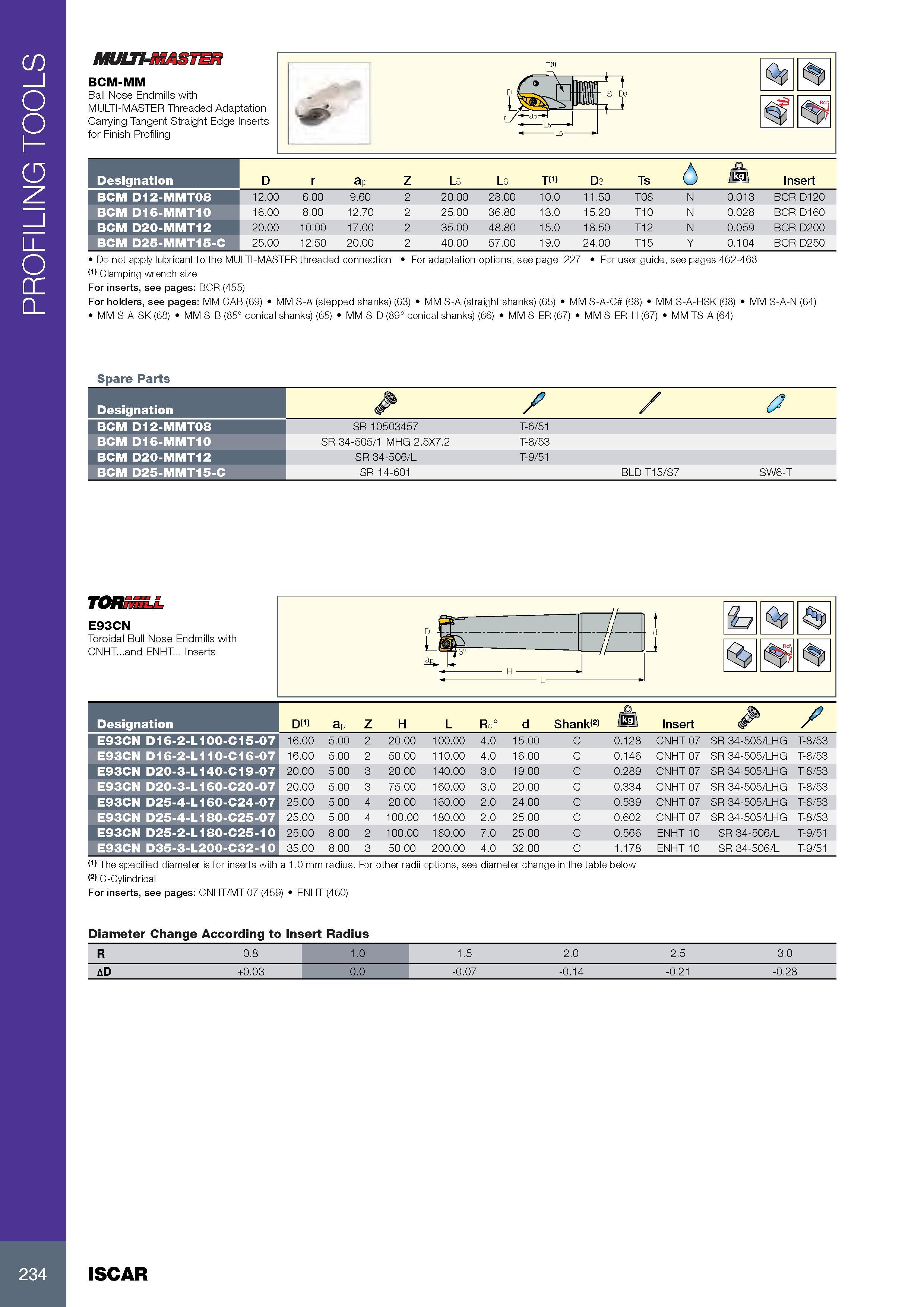

Фрезы Iscar с режущими сменными твердосплавными пластинами для контурного фрезерования на станках с ЧПУ сложнопрофильных поверхностей PROFILING TOOLS MULTI-MASTER BCM-MM Ball Nose Endmills with MULTI-MASTER Threaded Adaptation Carrying Tangent Straight Edge Inserts for Finish Profiling TS D3 D Обозначение Designation D r ap Z L5 L6 TM) D3 Ts 6 Insert BCM D12-MMT08 12.00 6.00 9.60 2 20.00 28.00 10.0 11.50 T08 N 0.013 BCR D120 BCM D16-MMT10 16.00 8.00 12.70 2 25.00 36.80 13.0 15.20 T10 N 0.028 BCR D160 BCM D20-MMT12 20.00 10.00 17.00 2 35.00 48.80 15.0 18.50 T12 N 0.059 BCR D200 BCM D25-MMT15-C 25.00 12.50 20.00 2 40.00 57.00 19.0 24.00 T15 Y 0.104 BCR D250 Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation options, see page 227 For user guide, see pages 462-468 (1) Clamping wrench size For inserts, see pages: BCR (455) For holders, see pages: MM CAB (69) MM S-A (stepped shanks) (63) MM S-A (straight shanks) (65) MM S-A-C (68) MM S-A-HSK (68) MM S-A-N (64) MM S-A-SK (68) MM S-B (85° conical shanks) (65) MM S-D (89° conical shanks) (66) MM S-ER (67) MM S-ER-H (67) MM TS-A (64) Spare Parts Обозначение Designation a BCM D12-MMT08 SR 10503457 T-6/51 BCM D16-MMT10 SR 34-505/1 MHG 2.5X7.2 T-8/53 BCM D20-MMT12 SR 34-506/L T-9/51 BCM D25-MMT15-C SR 14-601 BLD T15/S7 SW6-T TORSSLL E93CN Toroidal Bull Nose Endmills with CNHT...and ENHT... Inserts Обозначение Designation D(i) ap Z H L Rd° d Shank<2) IS) /kp Insert & z5 E93CN D16-2-L100-C15-07 16.00 5.00 2 20.00 100.00 4.0 15.00 C 0.128 CNHT 07 SR 34-505/LHG T-8/53 E93CN D16-2-L110-C16-07 16.00 5.00 2 50.00 110.00 4.0 16.00 C 0.146 CNHT 07 SR 34-505/LHG T-8/53 E93CN D20-3-L140-C19-07 20.00 5.00 3 20.00 140.00 3.0 19.00 C 0.289 CNHT 07 SR 34-505/LHG T-8/53 E93CN D20-3-L160-C20-07 20.00 5.00 3 75.00 160.00 3.0 20.00 C 0.334 CNHT 07 SR 34-505/LHG T-8/53 E93CN D25-4-L160-C24-07 25.00 5.00 4 20.00 160.00 2.0 24.00 C 0.539 CNHT 07 SR 34-505/LHG T-8/53 E93CN D25-4-L180-C25-07 25.00 5.00 4 100.00 180.00 2.0 25.00 C 0.602 CNHT 07 SR 34-505/LHG T-8/53 E93CN D25-2-L180-C25-10 25.00 8.00 2 100.00 180.00 7.0 25.00 C 0.566 ENHT 10 SR 34-506/L T-9/51 E93CN D35-3-L200-C32-10 35.00 8.00 3 50.00 200.00 4.0 32.00 C 1.178 ENHT 10 SR 34-506/L T-9/51 (1) The specified diameter is for inserts with a 1.0 mm radius. For other radii options, see diameter change in the table below (2) C-Cylindrical For inserts, see pages: CNHT/MT 07 (459) ENHT (460) Diameter Change According to Insert Radius R 0.8 1.0 1.5 2.0 2.5 3.0 aD +0.03 0.0 -0.07 -0.14 -0.21 -0.28 234 ISCAR
