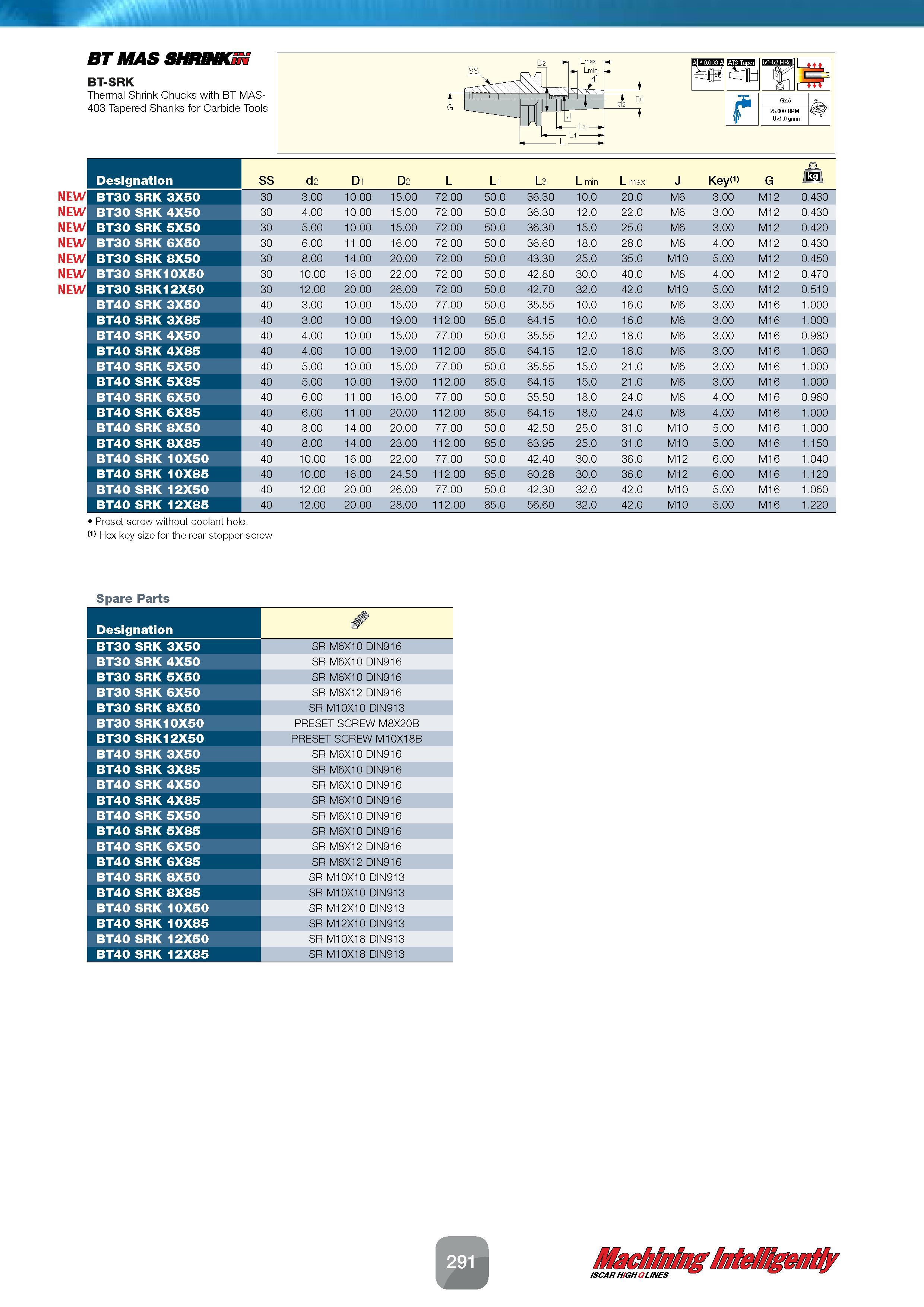

BT MAS SHRINKiN BT-SRK Thermal Shrink Chucks with BT MAS-403 Tapered Shanks for Carbide Tools f6 m G2.5 25,000 RPM U<1.0 gmm NEW Designation SS d2 D1 D2 L L1 L3 L min L max J Key(1) G BT30 SRK 3X50 30 3.00 10.00 15.00 72.00 50.0 36.30 10.0 20.0 M6 3.00 M 2 0.430 BT30 SRK 4X50 30 4.00 10.00 15.00 72.00 50.0 36.30 12.0 22.0 M6 3.00 M1 2 0.430 BT30 SRK 5X50 30 5.00 10.00 15.00 72.00 50.0 36.30 15.0 25.0 M6 3.00 M1 2 0.420 BT30 SRK 6X50 30 6.00 11.00 16.00 72.00 50.0 36.60 18.0 28.0 M8 4.00 M1 2 0.430 BT30 SRK 8X50 30 8.00 14.00 20.00 72.00 50.0 43.30 25.0 35.0 M10 5.00 M1 2 0.450 BT30 SRK10X50 30 10.00 16.00 22.00 72.00 50.0 42.80 30.0 40.0 M8 4.00 M1 2 0.470 BT30 SRK12X50 30 12.00 20.00 26.00 72.00 50.0 42.70 32.0 42.0 M10 5.00 M1 2 0.510 BT40 SRK 3X50 40 3.00 10.00 15.00 77.00 50.0 35.55 10.0 16.0 M6 3.00 M1 6 1.000 BT40 SRK 3X85 40 3.00 10.00 19.00 112.00 85.0 64.15 10.0 16.0 M6 3.00 M1 6 1.000 BT40 SRK 4X50 40 4.00 10.00 15.00 77.00 50.0 35.55 12.0 18.0 M6 3.00 M1 6 0.980 BT40 SRK 4X85 40 4.00 10.00 19.00 112.00 85.0 64.15 12.0 18.0 M6 3.00 M1 6 1.060 BT40 SRK 5X50 40 5.00 10.00 15.00 77.00 50.0 35.55 15.0 21.0 M6 3.00 M1 6 1.000 BT40 SRK 5X85 40 5.00 10.00 19.00 112.00 85.0 64.15 15.0 21.0 M6 3.00 M1 6 1.000 BT40 SRK 6X50 40 6.00 11.00 16.00 77.00 50.0 35.50 18.0 24.0 M8 4.00 M1 6 0.980 BT40 SRK 6X85 40 6.00 11.00 20.00 112.00 85.0 64.15 18.0 24.0 M8 4.00 M1 6 1.000 BT40 SRK 8X50 40 8.00 14.00 20.00 77.00 50.0 42.50 25.0 31.0 M10 5.00 M1 6 1.000 BT40 SRK 8X85 40 8.00 14.00 23.00 112.00 85.0 63.95 25.0 31.0 M10 5.00 M1 6 1.150 BT40 SRK 10X50 40 10.00 16.00 22.00 77.00 50.0 42.40 30.0 36.0 M12 6.00 M1 6 1.040 BT40 SRK 10X85 40 10.00 16.00 24.50 112.00 85.0 60.28 30.0 36.0 M12 6.00 M1 6 1.120 BT40 SRK 12X50 40 12.00 20.00 26.00 77.00 50.0 42.30 32.0 42.0 M10 5.00 M1 6 1.060 BT40 SRK 12X85 40 12.00 20.00 28.00 112.00 85.0 56.60 32.0 42.0 M10 5.00 M 6 1.220 Preset screw without coolant hole. (1) Hex key size for the rear stopper screw Spare Parts Designation < BT30 SRK 3X50 SR M6X10 DIN916 BT30 SRK 4X50 SR M6X10 DIN916 BT30 SRK 5X50 SR M6X10 DIN916 BT30 SRK 6X50 SR M8X12 DIN916 BT30 SRK 8X50 SR M10X10 DIN913 BT30 SRK10X50 PRESET SCREW M8X20B BT30 SRK12X50 PRESET SCREW M10X18B BT40 SRK 3X50 SR M6X10 DIN916 BT40 SRK 3X85 SR M6X10 DIN916 BT40 SRK 4X50 SR M6X10 DIN916 BT40 SRK 4X85 SR M6X10 DIN916 BT40 SRK 5X50 SR M6X10 DIN916 BT40 SRK 5X85 SR M6X10 DIN916 BT40 SRK 6X50 SR M8X12 DIN916 BT40 SRK 6X85 SR M8X12 DIN916 BT40 SRK 8X50 SR M10X10 DIN913 BT40 SRK 8X85 SR M10X10 DIN913 BT40 SRK 10X50 SR M12X10 DIN913 BT40 SRK 10X85 SR M12X10 DIN913 BT40 SRK 12X50 SR M10X18 DIN913 BT40 SRK 12X85 SR M10X18 DIN913
