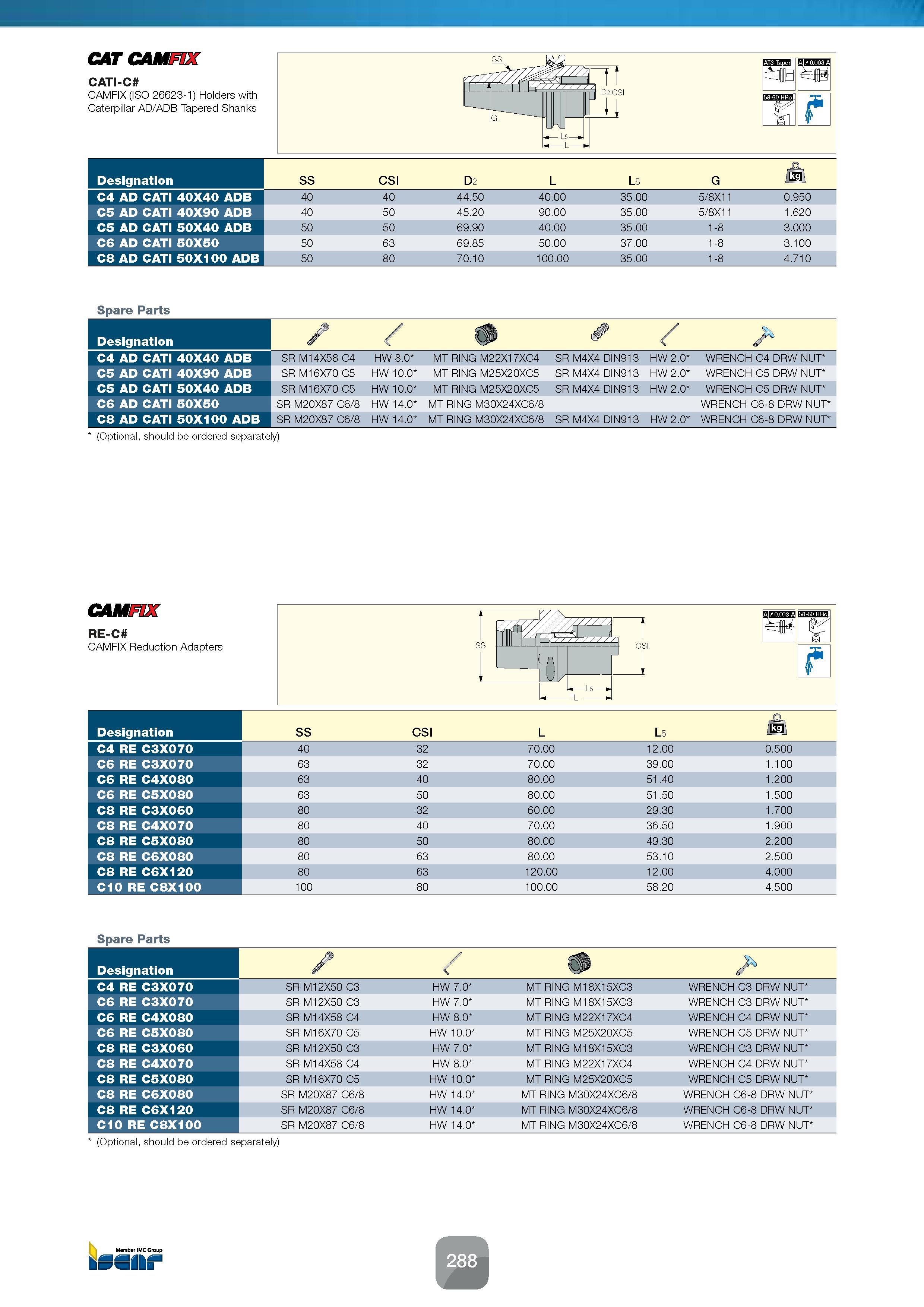

CAT CAMFIX CATI-C CAMFIX (ISO 26623-1) Holders with Caterpillar AD/ADB Tapered Shanks Designation SS CSI D2 L L5 G C4 AD CATI 40X40 ADB 40 40 44.50 40.00 35.00 5/8X11 0.950 C5 AD CATI 40X90 ADB 40 50 45.20 90.00 35.00 5/8X11 1.620 C5 AD CATI 50X40 ADB 50 50 69.90 40.00 35.00 1-8 3.000 C6 AD CATI 50X50 50 63 69.85 50.00 37.00 1-8 3.100 C8 AD CATI 50X100 ADB 50 80 70.10 100.00 35.00 1-8 4.710 Spare Parts Designation C4 AD CATI 40X40 ADB SR M14X58 C4 HW 8.0 MT RING M22X17XC4 SR M4X4 DIN913 HW 2.0 WRENCH C4 DRW NUT C5 AD CATI 40X90 ADB SR M16X70 C5 HW 10.0 MT RING M25X20XC5 SR M4X4 DIN913 HW 2.0 WRENCH C5 DRW NUT C5 AD CATI 50X40 ADB SR M16X70 C5 HW 10.0 MT RING M25X20XC5 SR M4X4 DIN913 HW 2.0 WRENCH C5 DRW NUT C6 AD CATI 50X50 SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT C8 AD CATI 50X100 ADB SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 SR M4X4 DIN913 HW 2.0 WRENCH C6-8 DRW NUT (Optional, should be ordered separately) CAMFIX RE-C CAMFIX Reduction Adapters Designation SS CSI L L5 C4 RE C3X070 40 32 70.00 12.00 0.500 C6 RE C3X070 63 32 70.00 39.00 1.100 C6 RE C4X080 63 40 80.00 51.40 1.200 C6 RE C5X080 63 50 80.00 51.50 1.500 C8 RE C3X060 80 32 60.00 29.30 1.700 C8 RE C4X070 80 40 70.00 36.50 1.900 C8 RE C5X080 80 50 80.00 49.30 2.200 C8 RE C6X080 80 63 80.00 53.10 2.500 C8 RE C6X120 80 63 120.00 12.00 4.000 C10 RE C8X100 100 80 100.00 58.20 4.500 Spare Parts Designation C4 RE C3X070 SR M12X50 C3 HW 7.0 MT RING M18X15XC3 WRENCH C3 DRW NUT C6 RE C3X070 SR M12X50 C3 HW 7.0 MT RING M18X15XC3 WRENCH C3 DRW NUT C6 RE C4X080 SR M14X58 C4 HW 8.0 MT RING M22X17XC4 WRENCH C4 DRW NUT C6 RE C5X080 SR M16X70 C5 HW 10.0 MT RING M25X20XC5 WRENCH C5 DRW NUT C8 RE C3X060 SR M12X50 C3 HW 7.0 MT RING M18X15XC3 WRENCH C3 DRW NUT C8 RE C4X070 SR M14X58 C4 HW 8.0 MT RING M22X17XC4 WRENCH C4 DRW NUT C8 RE C5X080 SR M16X70 C5 HW 10.0 MT RING M25X20XC5 WRENCH C5 DRW NUT C8 RE C6X080 SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT C8 RE C6X120 SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT C10 RE C8X100 SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT (Optional, should be ordered separately)
