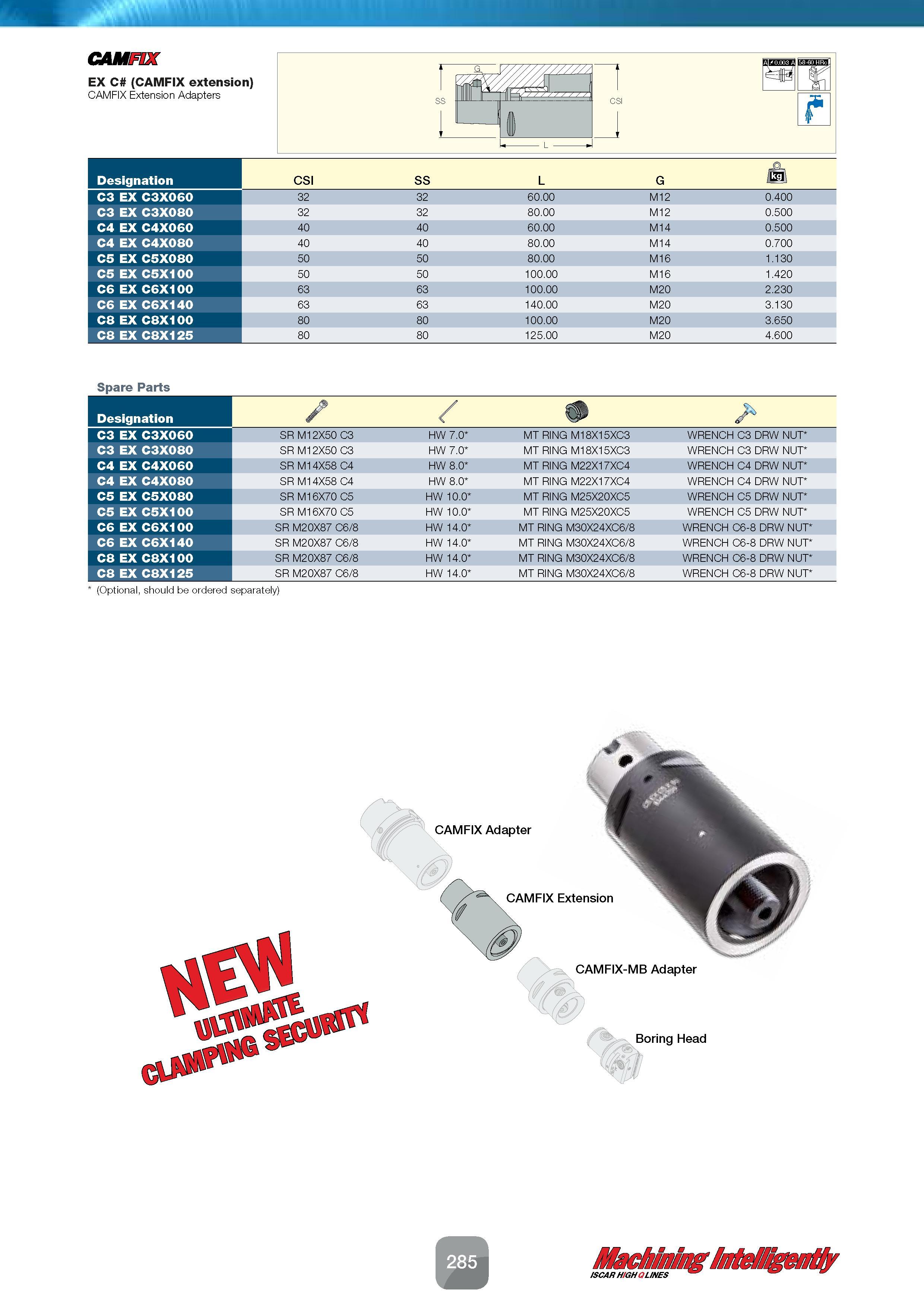

CAMFIX EX C (CAMFIX extension) CAMFIX Extension Adapters Designation CSI SS L G /TO C3 EX C3X060 32 32 60.00 M12 0.400 C3 EX C3X080 32 32 80.00 M12 0.500 C4 EX C4X060 40 40 60.00 M14 0.500 C4 EX C4X080 40 40 80.00 M14 0.700 C5 EX C5X080 50 50 80.00 M16 1.130 C5 EX C5X100 50 50 100.00 M16 1.420 C6 EX C6X100 63 63 100.00 M20 2.230 C6 EX C6X140 63 63 140.00 M20 3.130 C8 EX C8X100 80 80 100.00 M20 3.650 C8 EX C8X125 80 80 125.00 M20 4.600 Spare Parts Designation S C3 EX C3X060 SR M12X50 C3 HW 7.0 MT RING M18X15XC3 WRENCH C3 DRW NUT C3 EX C3X080 SR M12X50 C3 HW 7.0 MT RING M18X15XC3 WRENCH C3 DRW NUT C4 EX C4X060 SR M14X58 C4 HW 8.0 MT RING M22X17XC4 WRENCH C4 DRW NUT C4 EX C4X080 SR M14X58 C4 HW 8.0 MT RING M22X17XC4 WRENCH C4 DRW NUT C5 EX C5X080 SR M16X70 C5 HW 10.0 MT RING M25X20XC5 WRENCH C5 DRW NUT C5 EX C5X100 SR M16X70 C5 HW 10.0 MT RING M25X20XC5 WRENCH C5 DRW NUT C6 EX C6X100 SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT C6 EX C6X140 SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT C8 EX C8X100 SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT C8 EX C8X125 SR M20X87 C6/8 HW 14.0 MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT (Optional, should be ordered separately)
