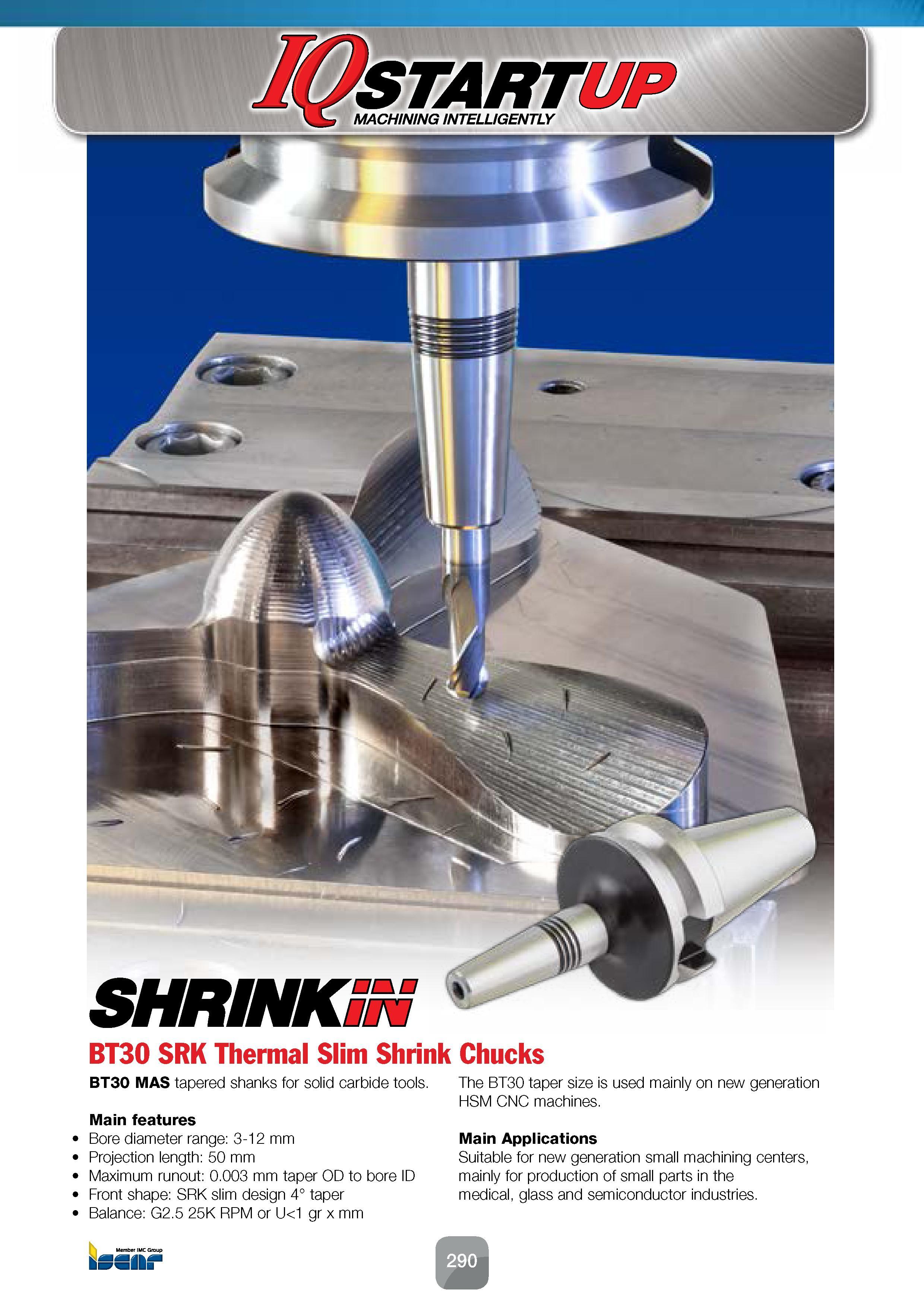

MK3 BT30 SRK Thermal Slim Shrink Chucks BT30 MAS tapered shanks for solid carbide tools Main features Bore diameter range: 3-12 mm Projection length: 50 mm Maximum runout: 0.003 mm taper OD to bore ID Front shape: SRK slim design 4° taper Balance: G2.5 25K RPM or U<1 gr x mm The BT30 taper size is used mainly on new generation HSM CNC machines. Main Applications Suitable for new generation small machining centers, mainly for production of small parts in the medical, glass and semiconductor industries. JS Member IMC Group
