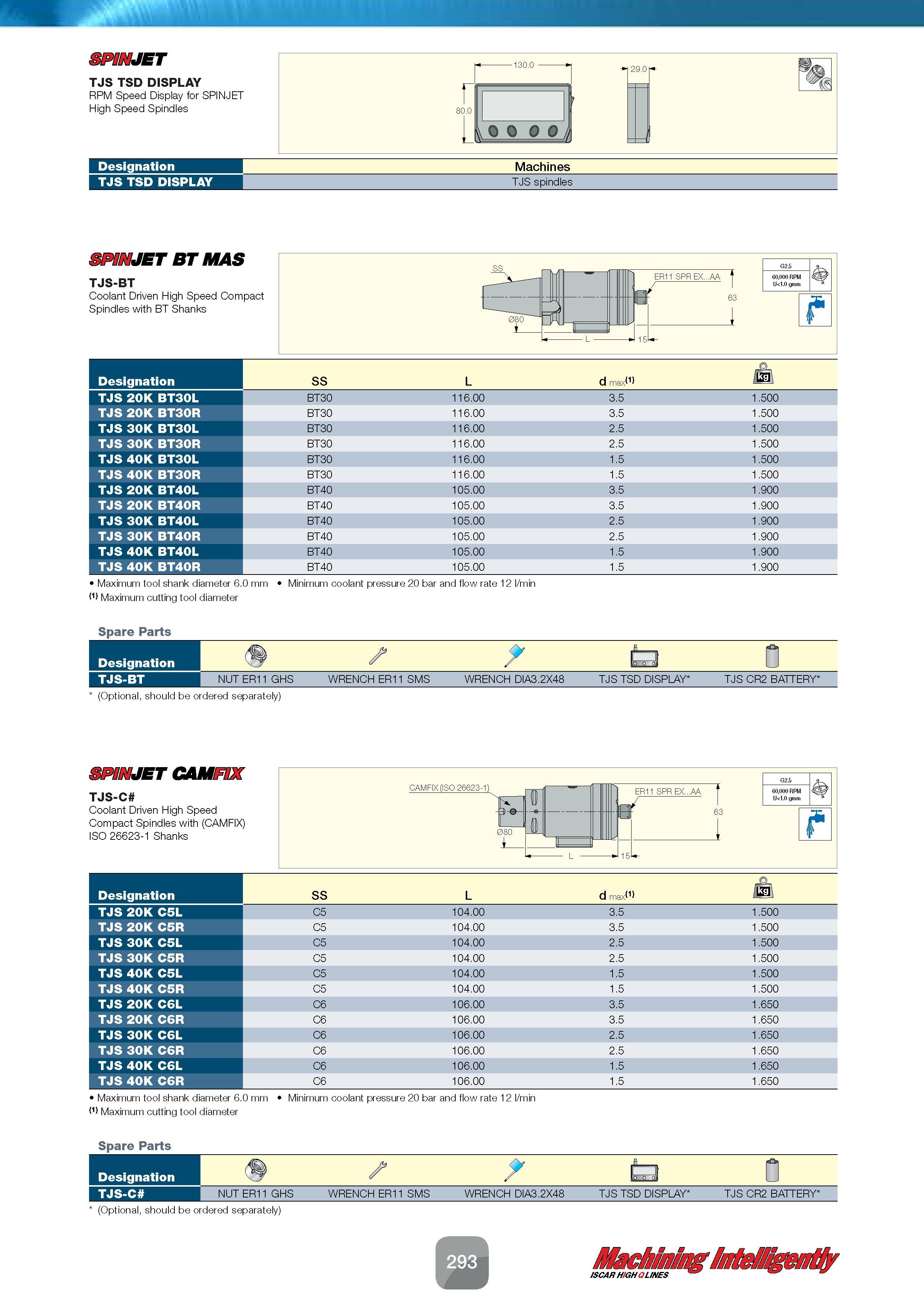

SPINJET TJS TSD DISPLAY RPM Speed Display for SPINJET High Speed Spindles Designation Machines TJS TSD DISPLAY TJS spindles SPINJET BT MAS TJS-BT Coolant Driven High Speed Compact Spindles with BT Shanks Designation SS L d max(1) TJS 20K BT30L BT30 116.00 3.5 1.500 TJS 20K BT30R BT30 116.00 3.5 1.500 TJS 30K BT30L BT30 116.00 2.5 1.500 TJS 30K BT30R BT30 116.00 2.5 1.500 TJS 40K BT30L BT30 116.00 1.5 1.500 TJS 40K BT30R BT30 116.00 1.5 1.500 TJS 20K BT40L BT40 105.00 3.5 1.900 TJS 20K BT40R BT40 105.00 3.5 1.900 TJS 30K BT40L BT40 105.00 2.5 1.900 TJS 30K BT40R BT40 105.00 2.5 1.900 TJS 40K BT40L BT40 105.00 1.5 1.900 TJS 40K BT40R BT40 105.00 1.5 1.900 Maximum tool shank diameter 6.0 mm Minimum coolant pressure 20 bar and flow rate 12 l/min (1) Maximum cutting tool diameter Spare Parts Designation f . fa TJS-BT NUT ER11 GHS WRENCH ER11 SMS WRENCH DIA3.2X48 TJS TSD DISPLAY TJS CR2 BATTERY (Optional, should be ordered separately) SPINJET CAMFIX TJS-C Coolant Driven High Speed Compact Spindles with (CAMFIX) ISO 26623-1 Shanks Designation SS L d max(1) n TJS 20K C5L C5 104.00 3.5 1.500 TJS 20K C5R C5 104.00 3.5 1.500 TJS 30K C5L C5 104.00 2.5 1.500 TJS 30K C5R C5 104.00 2.5 1.500 TJS 40K C5L C5 104.00 1.5 1.500 TJS 40K C5R C5 104.00 1.5 1.500 TJS 20K C6L C6 106.00 3.5 1.650 TJS 20K C6R C6 106.00 3.5 1.650 TJS 30K C6L C6 106.00 2.5 1.650 TJS 30K C6R C6 106.00 2.5 1.650 TJS 40K C6L C6 106.00 1.5 1.650 TJS 40K C6R C6 106.00 1.5 1.650 Maximum tool shank diameter 6.0 mm Minimum coolant pressure 20 bar and flow rate 12 l/min (1) Maximum cutting tool diameter Spare Parts Designation f . fa c TJS-C NUT ER11 GHS WRENCH ER11 SMS WRENCH DIA3.2X48 TJS TSD DISPLAY TJS CR2 BATTERY (Optional, should be ordered separately)
