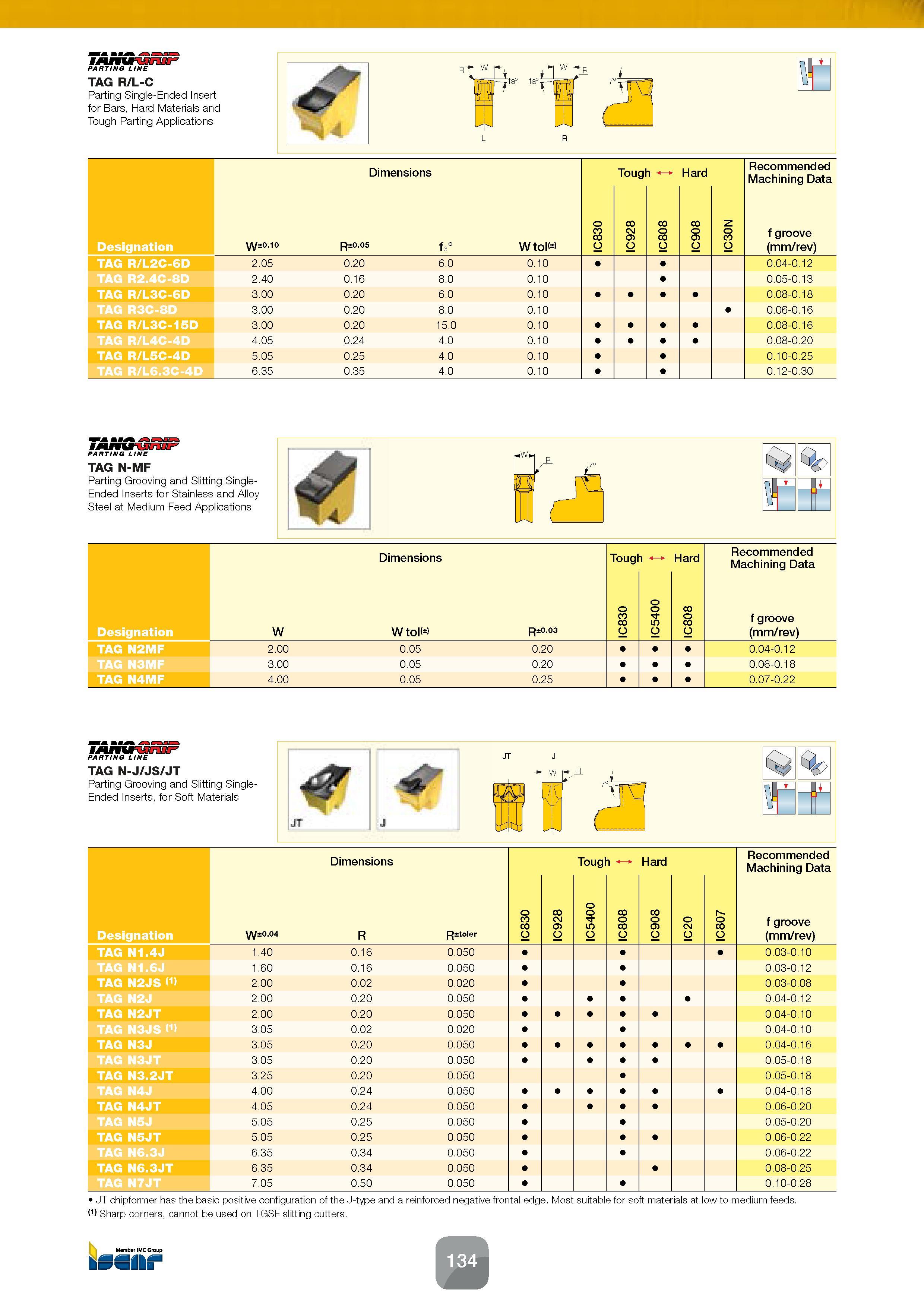

PARTING LINE TAG R/L-C Parting Single-Ended Insert for Bars, Hard Materials and Tough Parting Applications ,a° HiR 7°m B cj E Dimensions Recommended Machining Data Designation W±0.10 R±005 fa° W toll IC830 IC928 IC808 IC908 IC30N f groove (mm/rev) TAG R/L2C-6D 2.05 0.20 6.0 0.10 0.04-0.12 TAG R2.4C-8D 2.40 0.16 8.0 0.10 0.05-0.13 TAG R/L3C-6D 3.00 0.20 6.0 0.10 0.08-0.18 TAG R3C-8D 3.00 0.20 8.0 0.10 0.06-0.16 TAG R/L3C-15D 3.00 0.20 15.0 0.10 0.08-0.16 TAG R/L4C-4D 4.05 0.24 4.0 0.10 0.08-0.20 TAG R/L5C-4D 5.05 0.25 4.0 0.10 0.10-0.25 TAG R/L6.3C-4D 6.35 0.35 4.0 0.10 0.12-0.30 PARTING LINE TAG N-MF Parting Grooving and Slitting SingleEnded Inserts for Stainless and Alloy Steel at Medium Feed Applications Dimensions Recommended Machining Data Designation W W toll ) R±0.03 IC830 IC5400 IC808 f groove (mm/rev) TAG N2MF 2.00 0.05 0.20 0.04-0.12 TAG N3MF 3.00 0.05 0.20 0.06-0.18 TAG N4MF 4.00 0.05 0.25 0.07-0.22 PARTING LINE TAG N-J/JS/JT Parting Grooving and Slitting SingleEnded Inserts, for Soft Materials 'o' Dimensions Recommended Machining Data Designation W±0.04 R R±toler IC830 IC928 IC5400 IC808 IC908 IC20 IC807 f groove (mm/rev) TAG N1.4J 1.40 0.16 0.050 0.03-0.10 TAG N1.6J 1.60 0.16 0.050 0.03-0.12 TAG N2JS (1) 2.00 0.02 0.020 0.03-0.08 TAG N2J 2.00 0.20 0.050 0.04-0.12 TAG N2JT 2.00 0.20 0.050 0.04-0.10 TAG N3JS (1) 3.05 0.02 0.020 0.04-0.10 TAG N3J 3.05 0.20 0.050 0.04-0.16 TAG N3JT 3.05 0.20 0.050 0.05-0.18 TAG N3.2JT 3.25 0.20 0.050 0.05-0.18 TAG N4J 4.00 0.24 0.050 0.04-0.18 TAG N4JT 4.05 0.24 0.050 0.06-0.20 TAG N5J 5.05 0.25 0.050 0.05-0.20 TAG N5JT 5.05 0.25 0.050 0.06-0.22 TAG N6.3J 6.35 0.34 0.050 0.06-0.22 TAG N6.3JT 6.35 0.34 0.050 0.08-0.25 TAG N7JT 7.05 0.50 0.050 0.10-0.28 JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge. Most suitable for soft materials at low to medium feeds. (1) Sharp corners, cannot be used on TGSF slitting cutters. JS Member IMC Group L R
