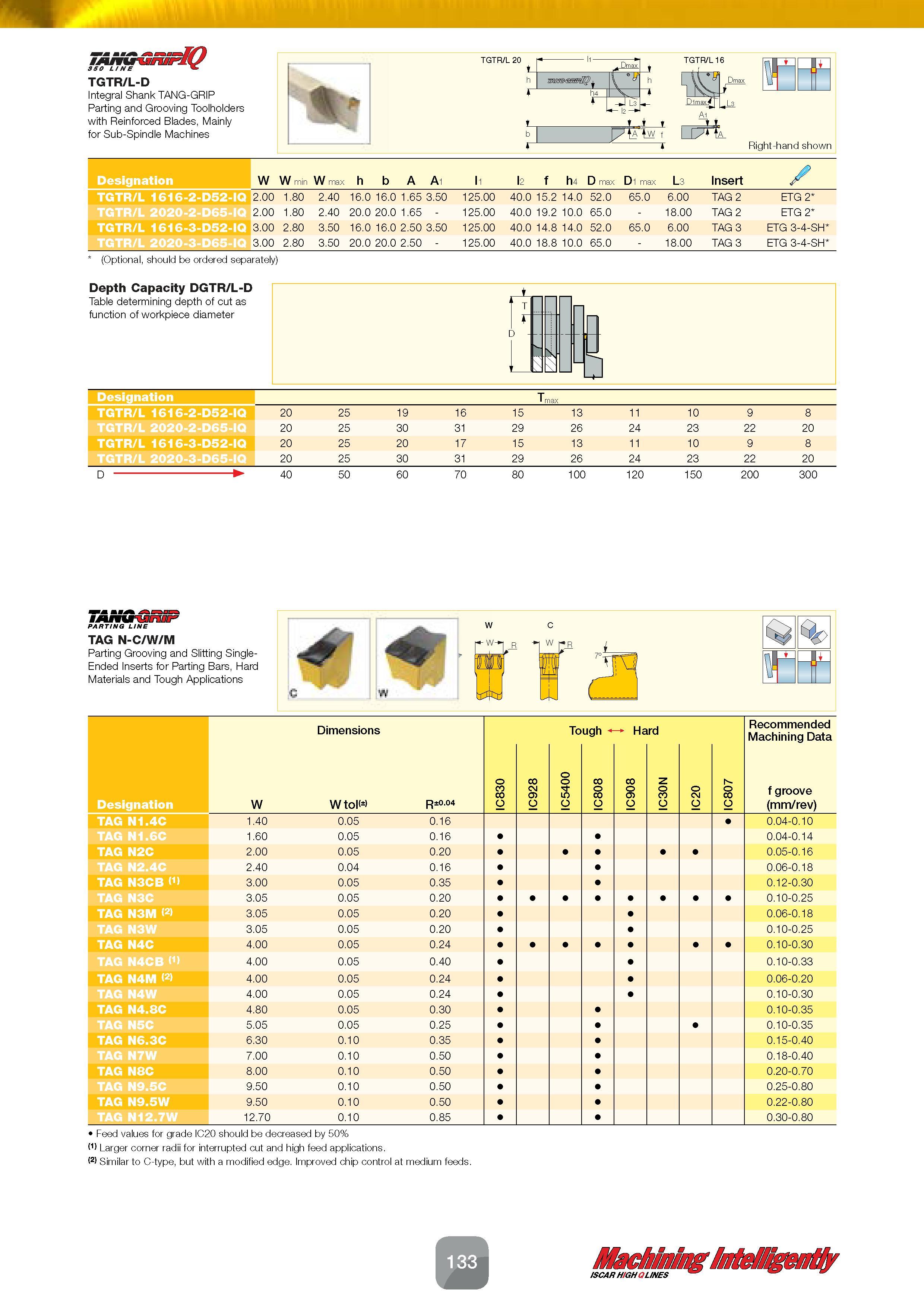

tanggsufIQ 350 LINE TGTR/L-D Integral Shank TANG-GRIP Parting and Grooving Toolholders with Reinforced Blades, Mainly for Sub-Spindle Machines h4 r l2 M _’ jTTmw f 0 Right-hand shown Designation W W min W max h b A A1 l1 l2 f h4 D max D1 max L3 Insert / TGTR/L 1616-2-D52-IQ 2.00 1.80 2.40 16.0 16.0 1.65 3.50 125.00 40.0 15.2 14.0 52.0 65.0 6.00 TAG 2 ETG 2 TGTR/L 2020-2-D65-IQ 2.00 1.80 2.40 20.0 20.0 1.65 - 125.00 40.0 19.2 10.0 65.0 - 18.00 TAG 2 ETG 2 TGTR/L 1616-3-D52-IQ 3.00 2.80 3.50 16.0 16.0 2.50 3.50 125.00 40.0 14.8 14.0 52.0 65.0 6.00 TAG 3 ETG 3-4-SH TGTR/L 2020-3-D65-IQ 3.00 2.80 3.50 20.0 20.0 2.50 - 125.00 40.0 18.8 10.0 65.0 - 18.00 TAG 3 ETG 3-4-SH (Optional, should be ordered separately) Depth Capacity DGTR/L-D Table determining depth of cut as function of workpiece diameter 40 50 60 70 80 100 120 150 200 Designation T max TGTR/L 1616-2-D52-IQ 20 25 19 16 15 13 11 10 9 8 TGTR/L 2020-2-D65-IQ 20 25 30 31 29 26 24 23 22 20 TGTR/L 1616-3-D52-IQ 20 25 20 17 15 13 11 10 9 8 TGTR/L 2020-3-D65-IQ 20 25 30 31 29 26 24 23 22 20 300 PARTING LINE TAG N-C/W/M Parting Grooving and Slitting SingleEnded Inserts for Parting Bars, Hard Materials and Tough Applications Dimensions Recommended Machining Data Designation W W tol(±) R±0.04 IC830 IC928 IC5400 IC808 IC908 IC30N IC20 0 8 IC f groove (mm/rev) TAG N1.4C 1.40 0.05 0.16 0.04-0.10 TAG N1.6C 1.60 0.05 0.16 0.04-0.14 TAG N2C 2.00 0.05 0.20 0.05-0.16 TAG N2.4C 2.40 0.04 0.16 0.06-0.18 TAG N3CB (1) 3.00 0.05 0.35 0.12-0.30 TAG N3C 3.05 0.05 0.20 0.10-0.25 TAG N3M (2) 3.05 0.05 0.20 0.06-0.18 TAG N3W 3.05 0.05 0.20 0.10-0.25 TAG N4C 4.00 0.05 0.24 0.10-0.30 TAG N4CB (1) 4.00 0.05 0.40 0.10-0.33 TAG N4M (2) 4.00 0.05 0.24 0.06-0.20 TAG N4W 4.00 0.05 0.24 0.10-0.30 TAG N4.8C 4.80 0.05 0.30 0.10-0.35 TAG N5C 5.05 0.05 0.25 0.10-0.35 TAG N6.3C 6.30 0.10 0.35 0.15-0.40 TAG N7W 7.00 0.10 0.50 0.18-0.40 TAG N8C 8.00 0.10 0.50 0.20-0.70 TAG N9.5C 9.50 0.10 0.50 0.25-0.80 TAG N9.5W 9.50 0.10 0.50 0.22-0.80 TAG N12.7W 12.70 0.10 0.85 0.30-0.80 Feed values for grade IC20 should be decreased by 50% (1) Larger corner radii for interrupted cut and high feed applications. Similar to C-type, but with a modified edge. Improved chip control at medium feeds. /SCAR HGH LINES TGTR/L 20 TGTR/L 16 D
