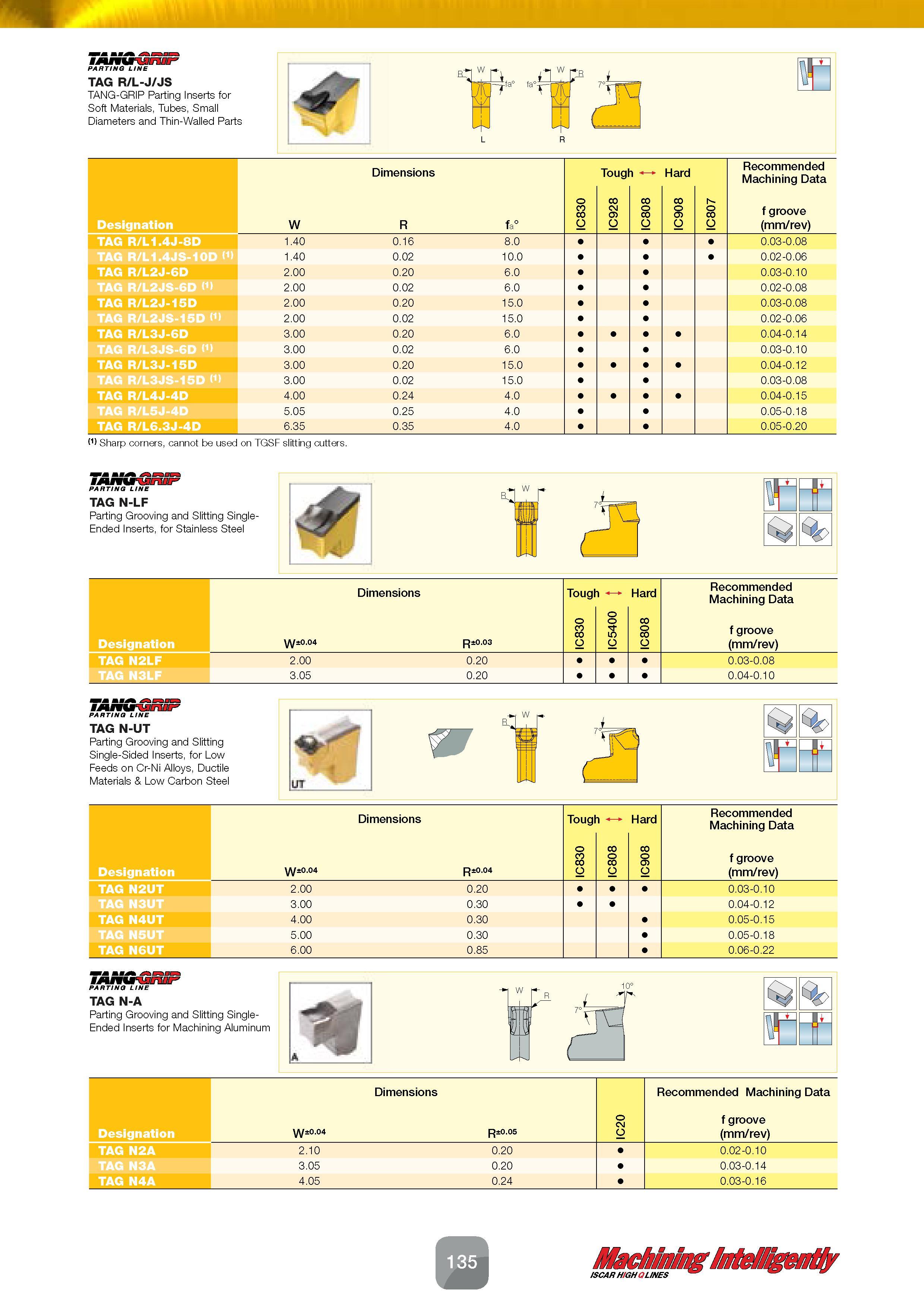

PARTING LINE TAG R/L-J/JS TANG-GRIP Parting Inserts for Soft Materials, Tubes, Small Diameters and Thin-Walled Parts m Dimensions Recommended Machining Data Designation W R fa° IC830 IC928 IC808 IC908 IC807 f groove (mm/rev) TAG R/L1.4J-8D 1.40 0.16 8.0 0.03-0.08 TAG R/L1.4JS-10D (1) TAG R/L2J-6D 1.40 2.00 0.02 0.20 10.0 6.0 0.02-0.06 0.03-0.10 TAG R/L2JS-6D (1) 2.00 0.02 6.0 0.02-0.08 TAG R/L2J-15D 2.00 0.20 15.0 0.03-0.08 TAG R/L2JS-15D (1) 2.00 0.02 15.0 0.02-0.06 TAG R/L3J-6D 3.00 0.20 6.0 0.04-0.14 TAG R/L3JS-6D (1) 3.00 0.02 6.0 0.03-0.10 TAG R/L3J-15D 3.00 0.20 15.0 0.04-0.12 TAG R/L3JS-15D (1) 3.00 0.02 15.0 0.03-0.08 TAG R/L4J-4D 4.00 0.24 4.0 0.04-0.15 TAG R/L5J-4D 5.05 0.25 4.0 0.05-0.18 TAG R/L6.3J-4D 6.35 0.35 4.0 0.05-0.20 Sharp corners, cannot be used on TGSF slitting cutters. PARTING LINE TAG N-LF Parting Grooving and Slitting SingleEnded Inserts, for Stainless Steel Pi 1 '1 % Dimensions Recommended Machining Data Designation W±0.04 R±0.03 IC830 IC5400 IC808 f groove (mm/rev) TAG N2LF 2.00 0.20 0.03-0.08 TAG N3LF 3.05 0.20 0.04-0.10 PARTING LINE TAG N-UT Parting Grooving and Slitting Single-Sided Inserts, for Low Feeds on Cr-Ni Alloys, Ductile Materials & Low Carbon Steel 13 H Dimensions Recommended Machining Data Designation W±0.04 R±0.04 IC830 IC808 IC908 f groove (mm/rev) TAG N2UT 2.00 0.20 0.03-0.10 TAG N3UT 3.00 0.30 0.04-0.12 TAG N4UT 4.00 0.30 0.05-0.15 TAG N5UT 5.00 0.30 0.05-0.18 TAG N6UT 6.00 0.85 0.06-0.22 PARTING LINE TAG N-A Parting Grooving and Slitting SingleEnded Inserts for Machining Aluminum 1 ;: Cl r Dimensions IC20 Recommended Machining Data Designation W±0.04 R±°.°5 f groove (mm/rev) TAG N2A 2.10 0.20 0.02-0.10 TAG N3A 3.05 0.20 0.03-0.14 TAG N4A 4.05 0.24 0.03-0.16 /SCAR HGH LINES L R W R
