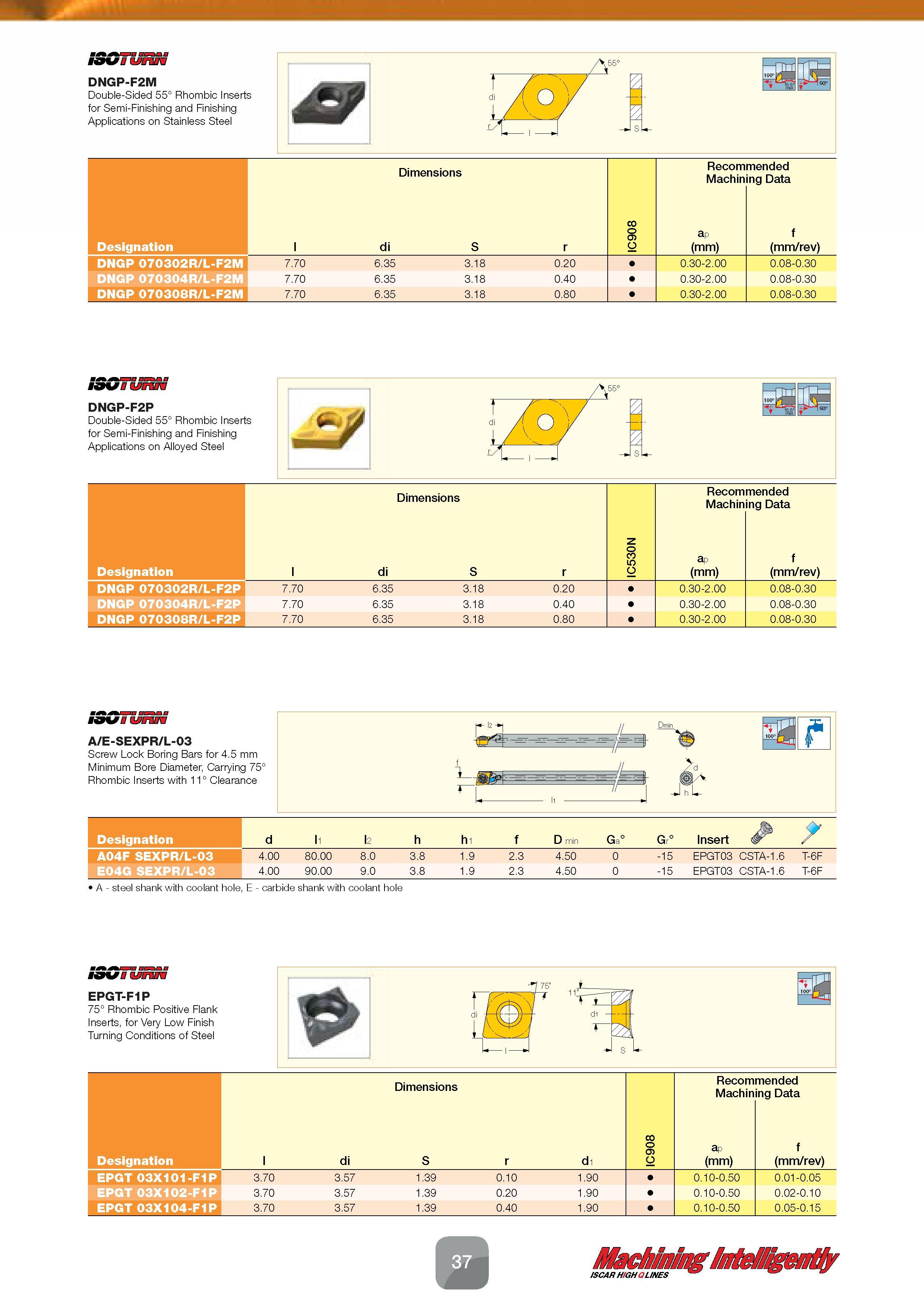

Double-Sided 55° Rhombic Inserts DNGP-F2M for Semi-Finishing and Finishing Applications on Stainless Steel Dimensions IC908 Recommended Machining

Double-Sided 55° Rhombic Inserts DNGP-F2M for Semi-Finishing and Finishing Applications on Stainless Steel Dimensions IC908 Recommended Machining Data l di S r ap (mm) f (mm/rev) 7.70 6.35 3.18 0.20 0.30-2.00 0.08-0.30 7.70 6.35 3.18 0.40 0.30-2.00 0.08-0.30 7.70 6.35 3.18 0.80 0.30-2.00 0.08-0.30 Designation DNGP 070302R/L-F2M DNGP 070304R/L-F2M DNGP 070308R/L-F2M 13Q7URN DNGP-F2P Double-Sided 55° Rhombic Inserts for Semi-Finishing and Finishing Applications on Alloyed Steel Designation DNGP 070302R/L-F2P DNGP 070304R/L-F2P DNGP 070308R/L-F2P Dimensions l di S r 0 co m C Recommended Machining Data ap (mm) f (mm/rev) 7.70 7.70 7.70 6.35 6.35 6.35 3.18 3.18 3.18 0.20 0.40 0.80 0.30-2.00 0.30-2.00 0.30-2.00 0.08-0.30 0.08-0.30 0.08-0.30 NVIWHI A/E-SEXPR/L-03 Screw Lock Boring Bars for 4.5 mm Minimum Bore Diameter, Carrying 75° Rhombic Inserts with 11° Clearance Designation d l1 l2 h h1 f D min Ga° Gr° Insert . A04F SEXPR/L-03 4.00 80.00 8.0 3.8 1.9 2.3 4.50 0 -15 EPGT03 CSTA-1.6 T-6F E04G SEXPR/L-03 4.00 90.00 9.0 3.8 1.9 2.3 4.50 0 -15 EPGT03 CSTA-1.6 T-6F A - steel shank with coolant hole, E - carbide shank with coolant hole fOTS/7 EPGT-F1P 75° Rhombic Positive Flank Inserts, for Very Low Finish Turning Conditions of Steel Dimensions IC908 Recommended Machining Data l di S r d1 ap (mm) f (mm/rev) 3.70 3.57 1.39 0.10 1.90 0.10-0.50 0.01-0.05 3.70 3.57 1.39 0.20 1.90 0.10-0.50 0.02-0.10 3.70 3.57 1.39 0.40 1.90 0.10-0.50 0.05-0.15 Designation EPGT 03X101-F1P EPGT 03X102-F1P EPGT 03X104-F1P
