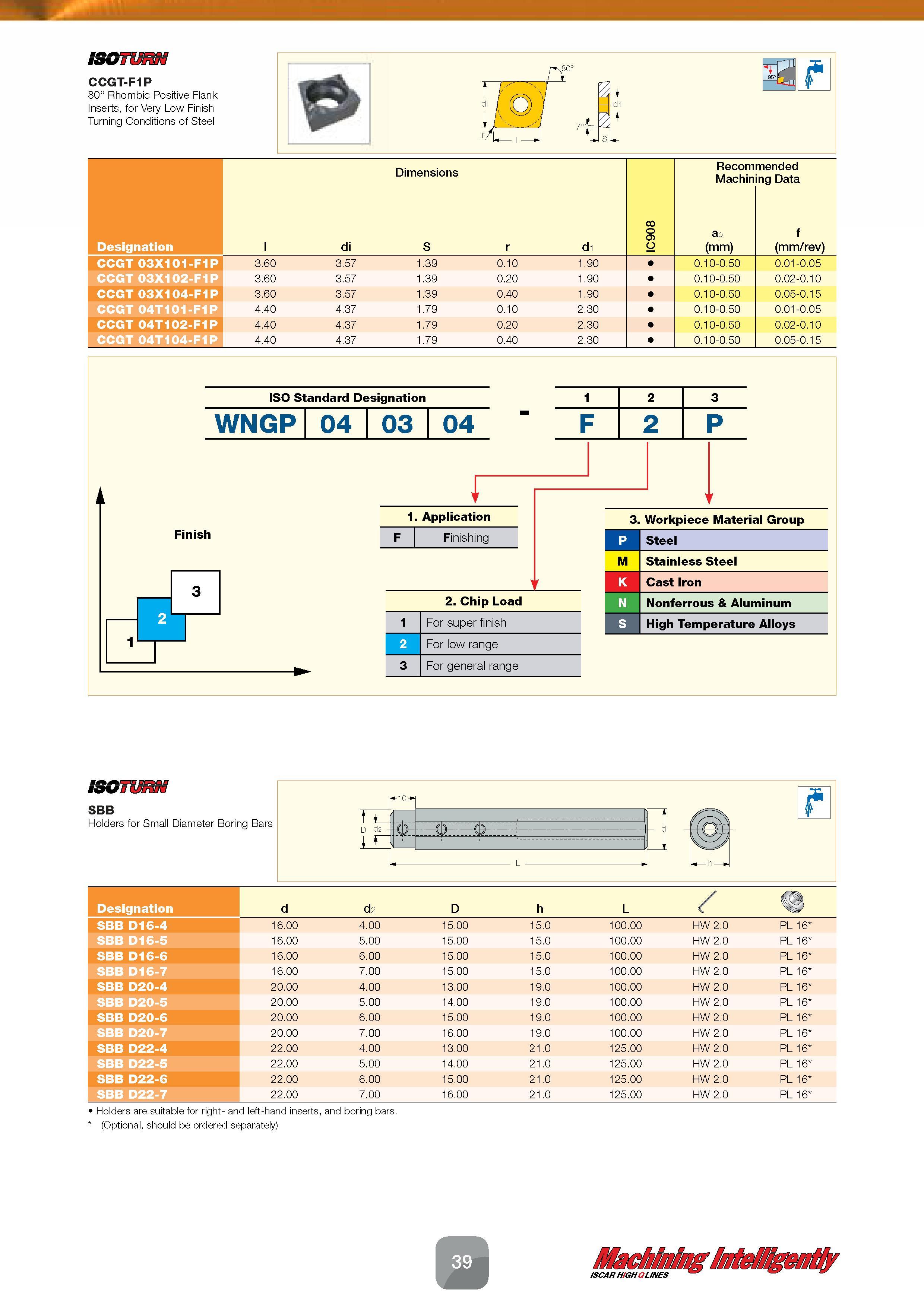

Rhombic Positive Flank Inserts CCGT-F1P 80° for Very Low Finish Turning Conditions of Steel -A Dimensions IC908 Recommended Machining Data Design

Rhombic Positive Flank Inserts CCGT-F1P 80° for Very Low Finish Turning Conditions of Steel -A Dimensions IC908 Recommended Machining Data Designation l di S r d1 ap (mm) f (mm/rev) CCGT 03X101-F1P 3.60 3.57 1.39 0.10 1.90 0.10-0.50 0.01-0.05 CCGT 03X102-F1P 3.60 3.57 1.39 0.20 1.90 0.10-0.50 0.02-0.10 CCGT 03X104-F1P 3.60 3.57 1.39 0.40 1.90 0.10-0.50 0.05-0.15 CCGT 04T101-F1P 4.40 4.37 1.79 0.10 2.30 0.10-0.50 0.01-0.05 CCGT 04T102-F1P 4.40 4.37 1.79 0.20 2.30 0.10-0.50 0.02-0.10 CCGT 04T104-F1P 4.40 4.37 1.79 0.40 2.30 0.10-0.50 0.05-0.15 ISO Standard Designation i 2 3 WNGP 04 03 04 F 2 P Finish 1 . Application 3. Workpiece Material Group F Finishing P Steel M Stainless Steel Cast Iron 2. Chip Load H N Nonferrous & Aluminum 1 For super finish H S High Temperature Alloys 2 For low range 3 For general range K 3 1 SSGTUrm SBB Holders for Small Diameter Boring Bars Designation d d2 D h L SBB D16-4 16.00 4.00 15.00 15.0 100.00 HW 2.0 PL 16 SBB D16-5 16.00 5.00 15.00 15.0 100.00 HW 2.0 PL 16 SBB D16-6 16.00 6.00 15.00 15.0 100.00 HW 2.0 PL 16 SBB D16-7 16.00 7.00 15.00 15.0 100.00 HW 2.0 PL 16 SBB D20-4 20.00 4.00 13.00 19.0 100.00 HW 2.0 PL 16 SBB D20-5 20.00 5.00 14.00 19.0 100.00 HW 2.0 PL 16 SBB D20-6 20.00 6.00 15.00 19.0 100.00 HW 2.0 PL 16 SBB D20-7 20.00 7.00 16.00 19.0 100.00 HW 2.0 PL 16 SBB D22-4 22.00 4.00 13.00 21.0 125.00 HW 2.0 PL 16 SBB D22-5 22.00 5.00 14.00 21.0 125.00 HW 2.0 PL 16 SBB D22-6 22.00 6.00 15.00 21.0 125.00 HW 2.0 PL 16 SBB D22-7 22.00 7.00 16.00 21.0 125.00 HW 2.0 PL 16 Holders are suitable for right- and left-hand inserts, and boring bars. (Optional, should be ordered separately)
