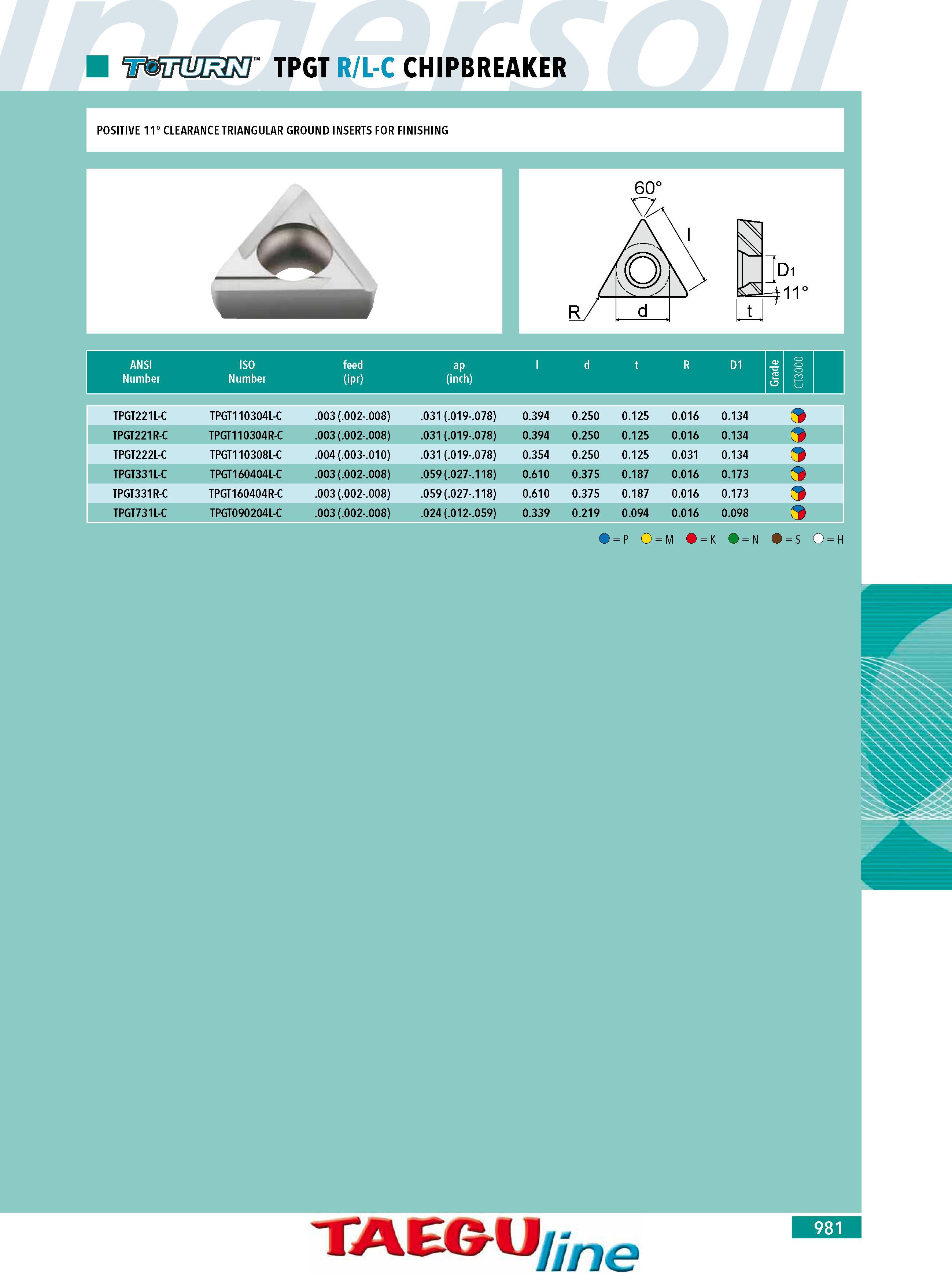

TPGT R L-C CHIPBREAKER POSITIVE 11 CLEARANCE TRIANGULAR GROUND INSERTS FOR FINISHING ANSI ISO fefeded ap l d tt RR D1 e o 0 0 Number Number (ip(irp)r) (inch) Gr co TC I TPGT221L-C TPGT110304L-C .003 (.002-.008) .031 (.019-.078) 0.394 0.250 0.125 0.016 0.134 9 TPGT221R-C TPGT110304R-C .003 (.002-.008) .031 (.019-.078) 0.394 0.250 0.125 0.016 0.134 9 TPGT222L-C TPGT110308L-C .004 (.003-.010) .031 (.019-.078) 0.354 0.250 0.125 0.031 0.134 9 TPGT331L-C TPGT160404L-C .003 (.002-.008) .059 (.027-.118) 0.610 0.375 0.187 0.016 0.173 9 TPGT331R-C TPGT160404R-C .003 (.002-.008) .059 (.027-.118) 0.610 0.375 0.187 0.016 0.173 9 TPGT731L-C TPGT090204L-C .003 (.002-.008) .024 (.012-.059) 0.339 0.219 0.094 0.016 0.098 9 O P O M O K O N O S O H TAEG-1J 7e 981
