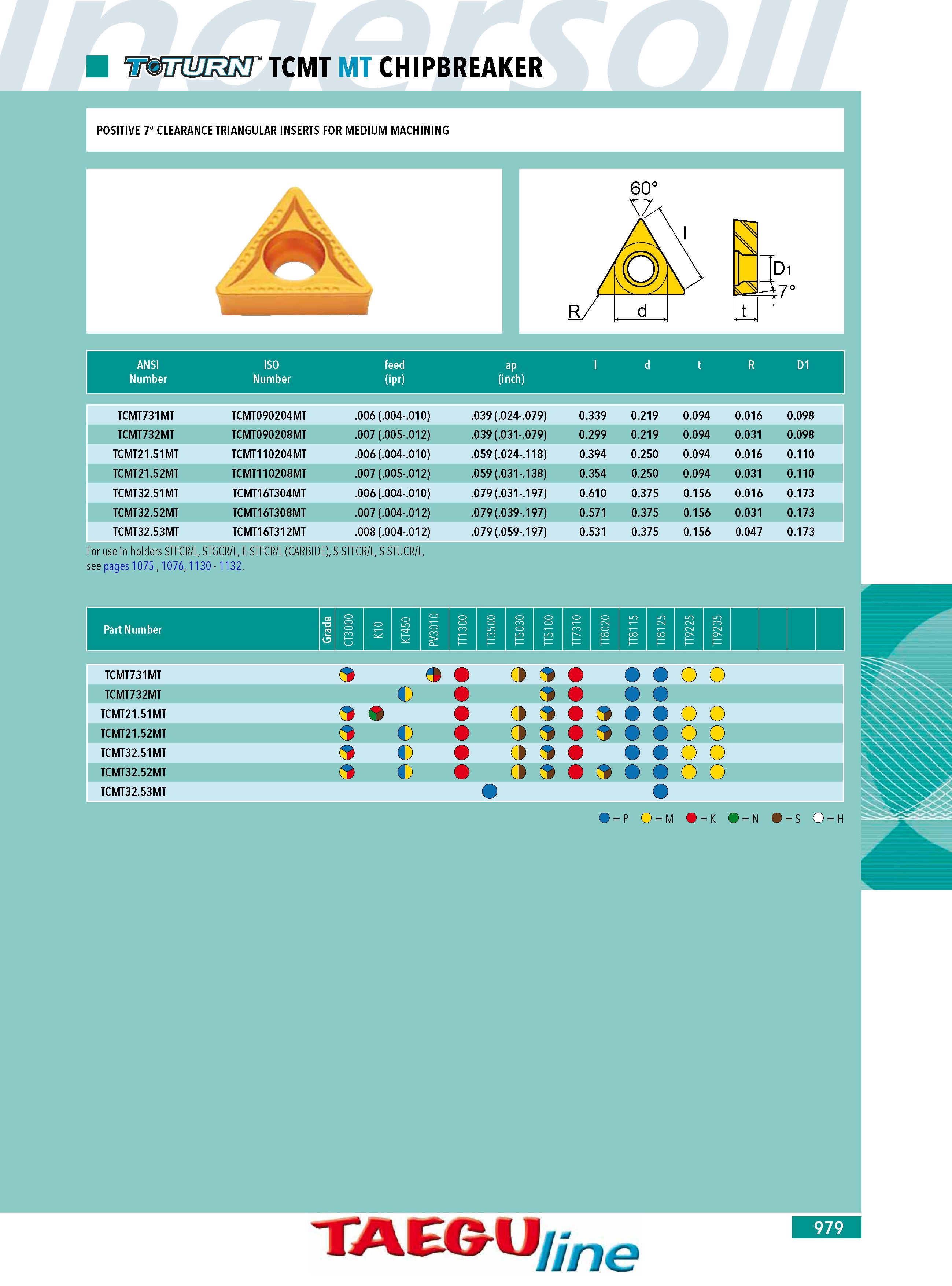

TCMT MT chipbreaker POSITIVE 7 CLEARANCE TRIANGULAR INSERTS FOR MEDIUM MACHINING ANSI ISO feed ap ld t R D1 Number Number (ipr) (inch) TCMT731MT TCMT090204MT .006 (.004-.010) .039 (.024-.079) 0.339 0.219 0.094 0.016 0.098 TCMT732MT TCMT090208MT .007 (.005-.012) .039 (.031-.079) 0.299 0.219 0.094 0.031 0.098 TCMT21.51MT TCMT110204MT .006 (.004-.010) .059 (.024-.118) 0.394 0.250 0.094 0.016 0.110 TCMT21.52MT TCMT110208MT .007 (.005-.012) .059 (.031-.138) 0.354 0.250 0.094 0.031 0.110 TCMT32.51MT TCMT16T304MT .006 (.004-.010) .079 (.031-.197) 0.610 0.375 0.156 0.016 0.173 TCMT32.52MT TCMT16T308MT .007 (.004-.012) .079 (.039-.197) 0.571 0.375 0.156 0.031 0.173 TCMT32.53MT TCMT16T312MT .008 (.004-.012) .079 (.059-.197) 0.531 0.375 0.156 0.047 0.173 For use in holders STFCR L STGCR L E-STFCR L (CARBIDE) S-STFCR L S-STUCR L see pages 1075 1076 1130 - 1132. Part Number TCMT731MT 3 9 3 TCMT732MT TCMT21.51MT o 3 TCMT21.52MT o 3 o TCMT32.51MT 3 TCMT32.52MT 3 () TCMT32.53MT ) P O M K N ) S O H TAEMJ ne 979
