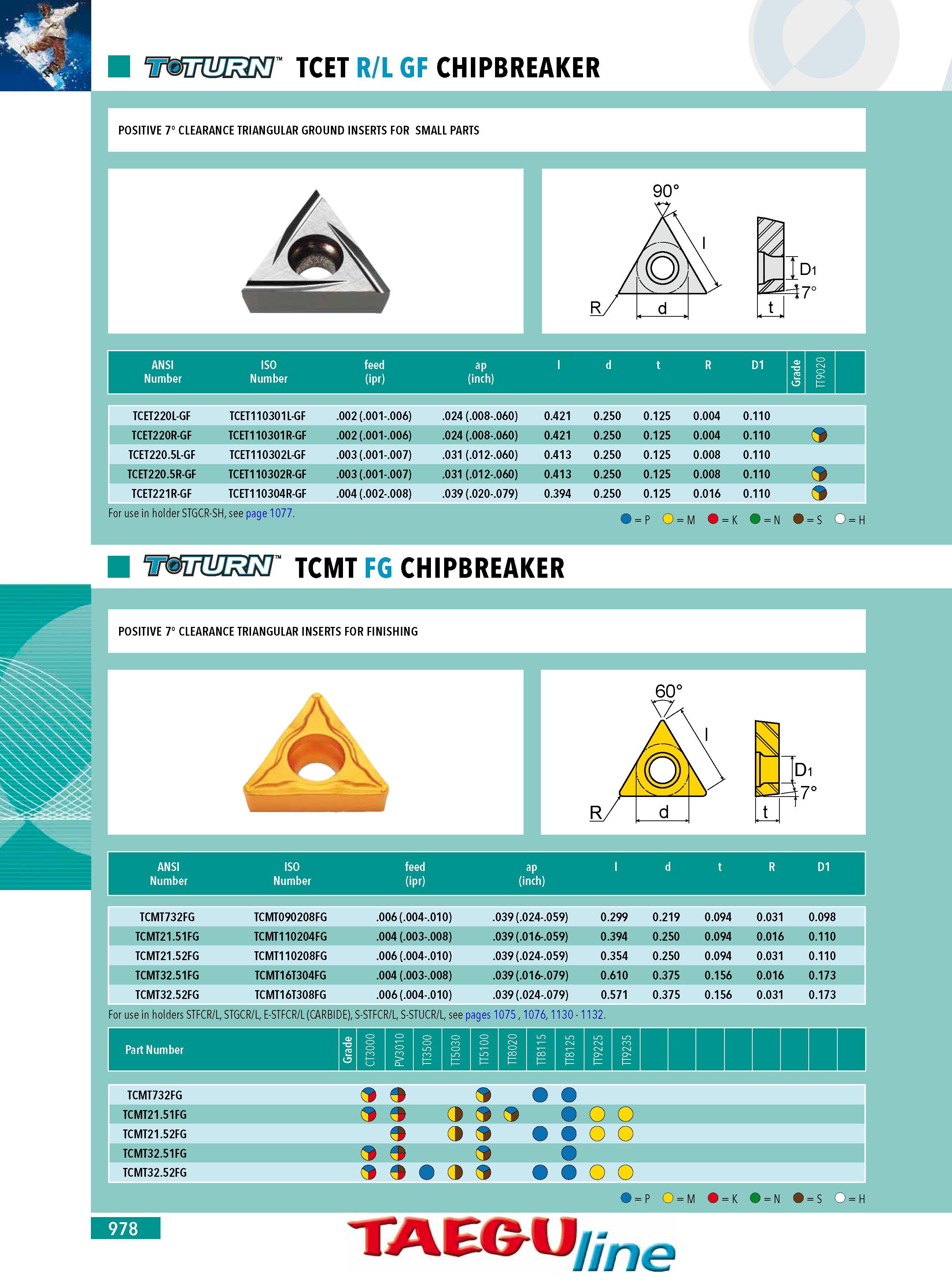

TCET R L GF CHIPBREAKER POSITIVE 7 CLEARANCE TRIANGULAR GROUND INSERTS FOR SMALL PARTS ANASINSI ISO feed ap l d td Rt D1 Number Number (ipr) (inch) TCET220L-GF TCET110301L-GF .002 (.001-.006) .024 (.008-.060) 0.421 0.250 0.125 0.004 0.110 TCET220R-GF TCET110301R-GF .002 (.001-.006) .024 (.008-.060) 0.421 0.250 0.125 0.004 0.110 O TCET220.5L-GF TCET110302L-GF .003 (.001-.007) .031 (.012-.060) 0.413 0.250 0.125 0.008 0.110 TCET220.5R-GF TCET110302R-GF .003 (.001-.007) .031 (.012-.060) 0.413 0.250 0.125 0.008 0.110 TCET221R-GF TCET110304R-GF .004 (.002-.008) .039 (.020-.079) 0.394 0.250 0.125 0.016 0.110 For use in holder STGCR-SH see page 1077. P o M O K O N S O H WmMMZTCMT FG CHIPBREAKER POSITIVE 7 CLEARANCE TRIANGULAR INSERTS FOR FINISHING 6 l s ( )) Di V O dt7 R d t ANSI ISO feed ap ld t R D1 Number Number (ipr) (inch) TCMT732FG TCMT090208FG .006 (.004-.010) .039 (.024-.059) 0.299 0.219 0.094 0.031 0.098 TCMT21.51FG TCMT110204FG .004 (.003-.008) .039 (.016-.059) 0.394 0.250 0.094 0.016 0.110 TCMT21.52FG TCMT110208FG .006 (.004-.010) .039 (.024-.059) 0.354 0.250 0.094 0.031 0.110 TCMT32.51FG TCMT16T304FG .004 (.003-.008) .039 (.016-.079) 0.610 0.375 0.156 0.016 0.173 TCMT32.52FG TCMT16T308FG .006 (.004-.010) .039 (.024-.079) 0.571 0.375 0.156 0.031 0.173 For use in holders STFCR L STGCR L E-STFCR L (CARBIDE) S-STFCR L S-STUCR L see pages 1075 1076 1130 - 1132. Part Number TCMT732FG 9 9 9 TCMT21.51FG 9 3 O o TCMT21.52FG 9 3 O o TCMT32.51FG o 9 TCMT32.52FG 9 3 978 O P O M O K O N O S O H TAC&Uf g
