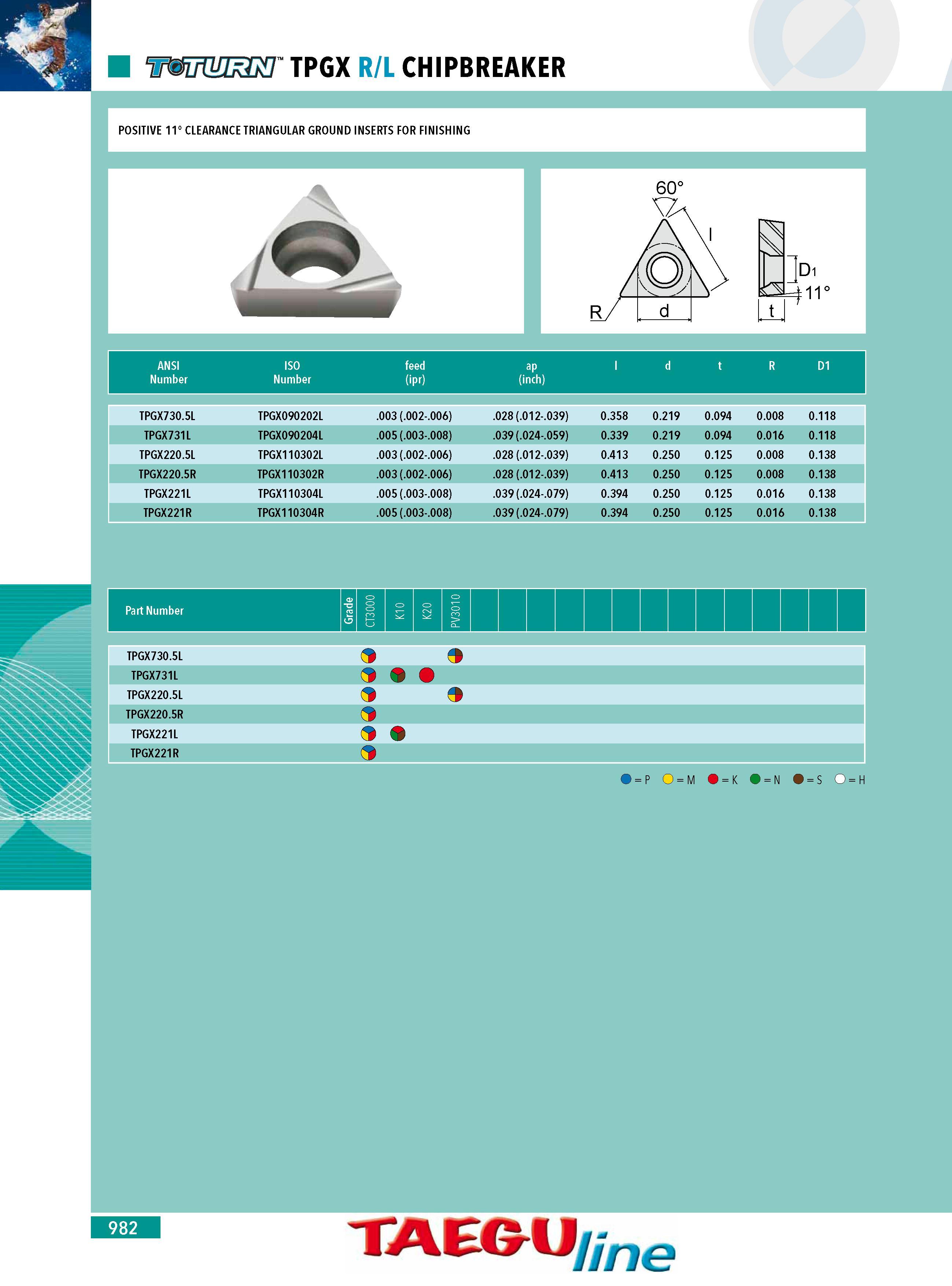

tpgx r l chipbreaker POSITIVE 11 CLEARANCE TRIANGULAR GROUND INSERTS FOR FINISHING 60 ANSI ISO feed ap ld t R D1 Number Number (ipr) (inch) TPGX730.5L TPGX090202L .003 (.002-.006) .028 (.012-.039) 0.358 0.219 0.094 0.008 0.118 TPGX731L TPGX090204L .005 (.003-.008) .039 (.024-.059) 0.339 0.219 0.094 0.016 0.118 TPGX220.5L TPGX110302L .003 (.002-.006) .028 (.012-.039) 0.413 0.250 0.125 0.008 0.138 TPGX220.5R TPGX110302R .003 (.002-.006) .028 (.012-.039) 0.413 0.250 0.125 0.008 0.138 TPGX221L TPGX110304L .005 (.003-.008) .039 (.024-.079) 0.394 0.250 0.125 0.016 0.138 TPGX221R TPGX110304R .005 (.003-.008) .039 (.024-.079) 0.394 0.250 0.125 0.016 0.138 Part Number TPGX730.5L 0 9 TPGX731L o TPGX220.5L o TPGX220.5R TPGX221L TPGX221R O P O M K O N S O H TAS&U me o 982
