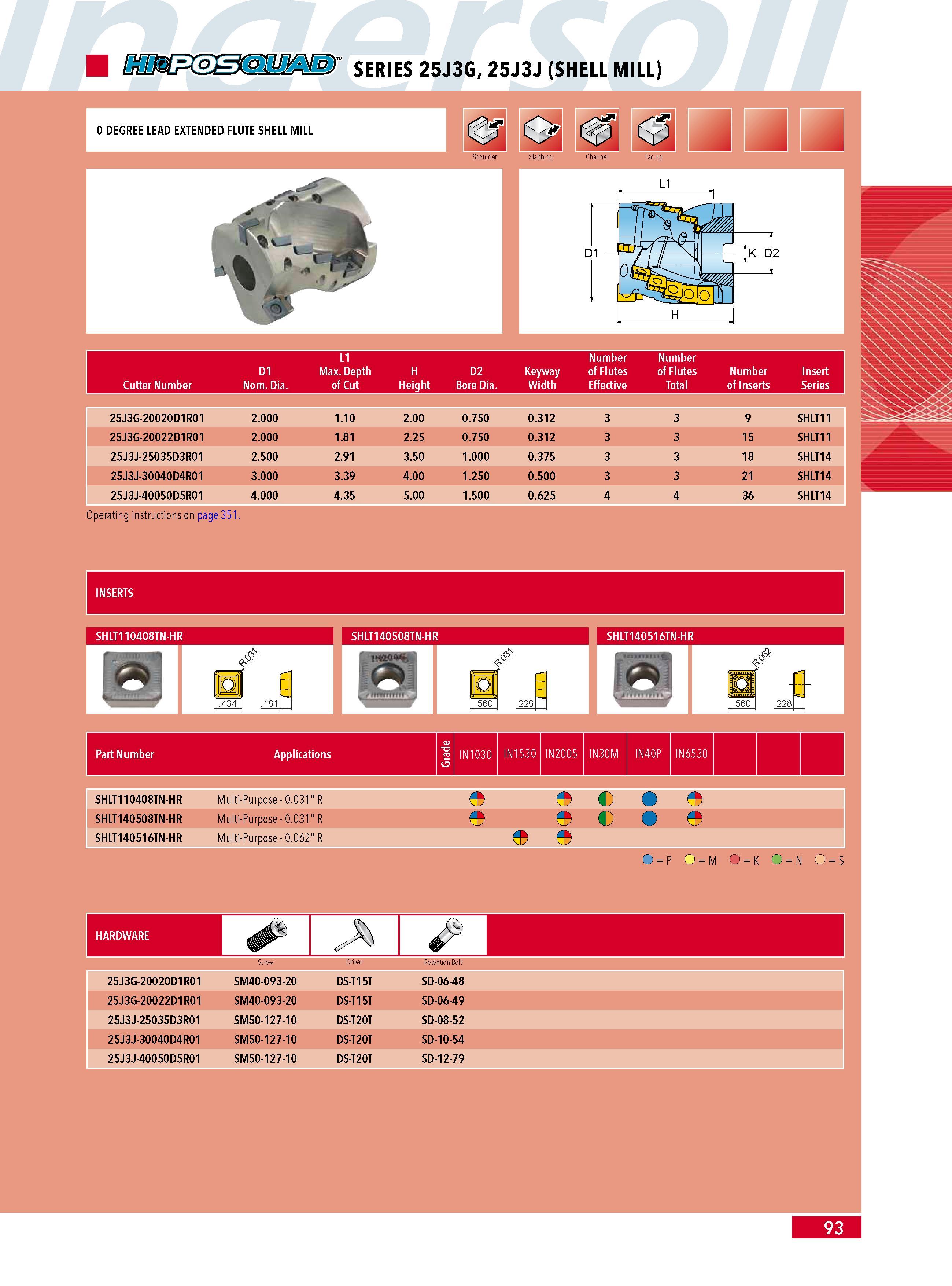

91 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.93

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 93 0091 Lab2u

SERIES 25J3G 25J3J (SHELL MILL) 0 DEGREE LEAD EXTENDED FLUTE SHELL MILL L1 1 rJ f k d: 1 i 'M H L1 Number Number D1 Max. Depth H D2 Keyway of Flutes of Flutes Number Insert Cutter Number Nom. Dia. of Cut Height Bore Dia. Width Effective Total of Inserts Series 25J3G-20020D1R01 2.000 1.10 2.00 0.750 0.312 3 3 9 SHLT11 25J3G-20022D1R01 2.000 1.81 2.25 0.750 0.312 3 3 15 SHLT11 25J3J-25035D3R01 2.500 2.91 3.50 1.000 0.375 3 3 18 SHLT14 25J3J-30040D4R01 3.000 3.39 4.00 1.250 0.500 3 3 21 SHLT14 25J3J-40050D5R01 4.000 4.35 5.00 1.500 0.625 4 4 36 SHLT14 Operating instructions on page 351. INSERTS SHLT110408TN-HR SHLT140508TN-HR SHLT140516TN-HR SHLT110408TN-HR Multi-Purpose - 0.031" R SHLT140508TN-HR Multi-Purpose - 0.031" R O SHLT140516TN-HR Multi-Purpose - 0.062" R O p O M O K O N O S Screw Driver Retention Bolt 25J3G-20020D1R01 SM40-093-20 DS-T15T SD-06-48 25J3G-20022D1R01 SM40-093-20 DS-T15T SD-06-49 25J3J-25035D3R01 SM50-127-10 DS-T20T SD-08-52 25J3J-30040D4R01 SM50-127-10 DS-T20T SD-10-54 25J3J-40050D5R01 SM50-127-10 DS-T20T SD-12-79 93
