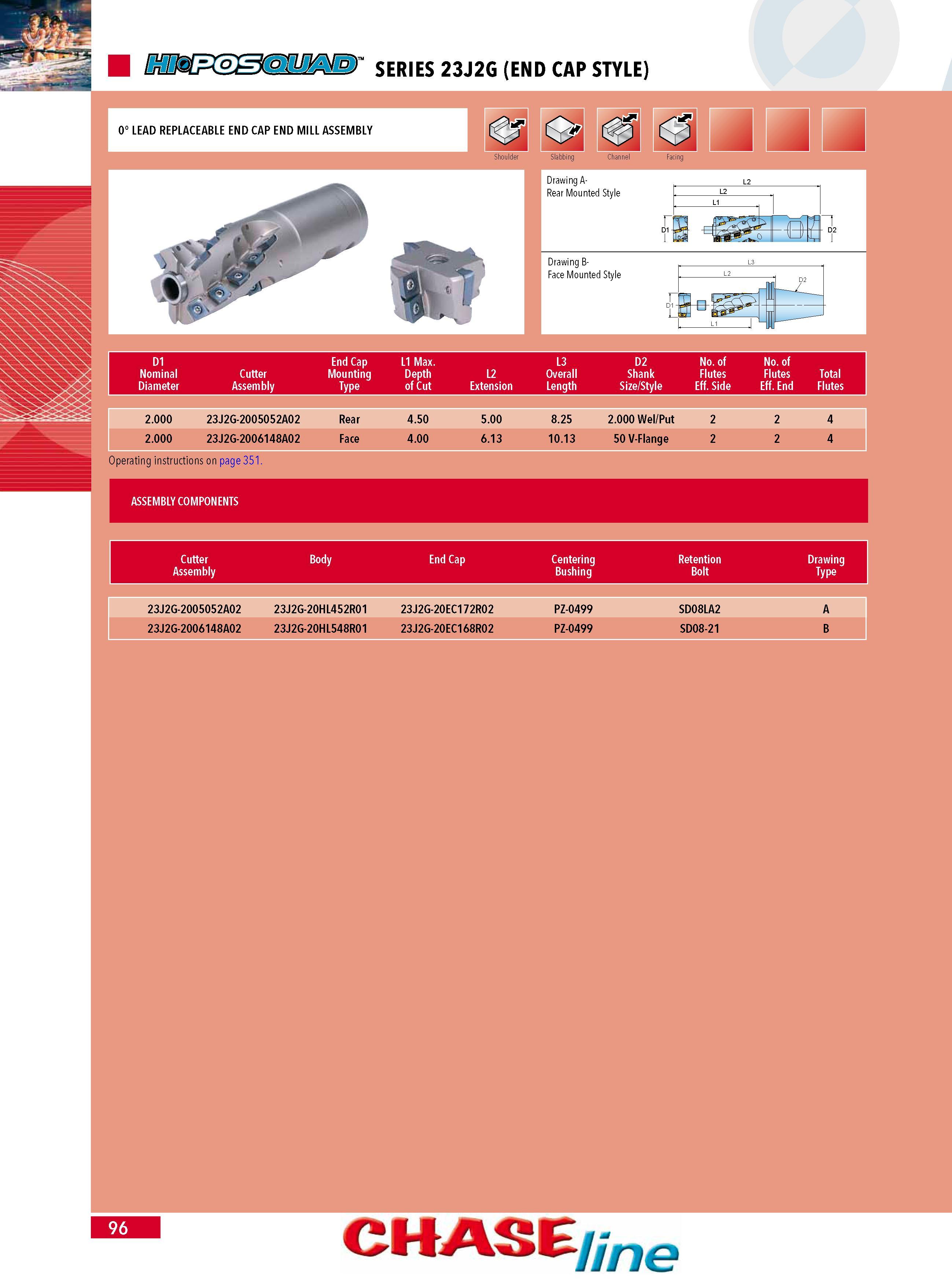

SERIES 23J2G (END CAP STYLE) 0 LEAD REPLACEABLE END CAP END MILL ASSEMBLY Shoulder Slabbing Channel Facing Drawing A-Rear Mounted Style Drawing B-Face Mounted Style L2 L1 -3 -iM D1 End Cap L1 Nominal Cutter Mounting D Diameter Assembly Type o L3 D2 No. of N L2 Overall Shank Flutes Fli Extension Length Size Style Eff. Side Eff. L2 5 1 D2 n u -1 L1 J2.000 23J2G-2005052A02 Rear 4.50 5.00 8.25 2.000 Wel Put 2 2 4 2.000 23J2G-2006148A02 Face 4.00 6.13 10.13 50 V-Flange 2 2 4 Operating instructions on page 351. Cutter Body End Cap Centering Retention Drawing Assembly Bushing Bolt Type 23J2G-2005052A02 23J2G-20HL452R01 23J2G-20EC172R02 PZ-0499 SD08LA2 A 23J2G-2006148A02 23J2G-20HL548R01 23J2G-20EC168R02 PZ-0499 SD08-21 B 96 CH VSE7e
