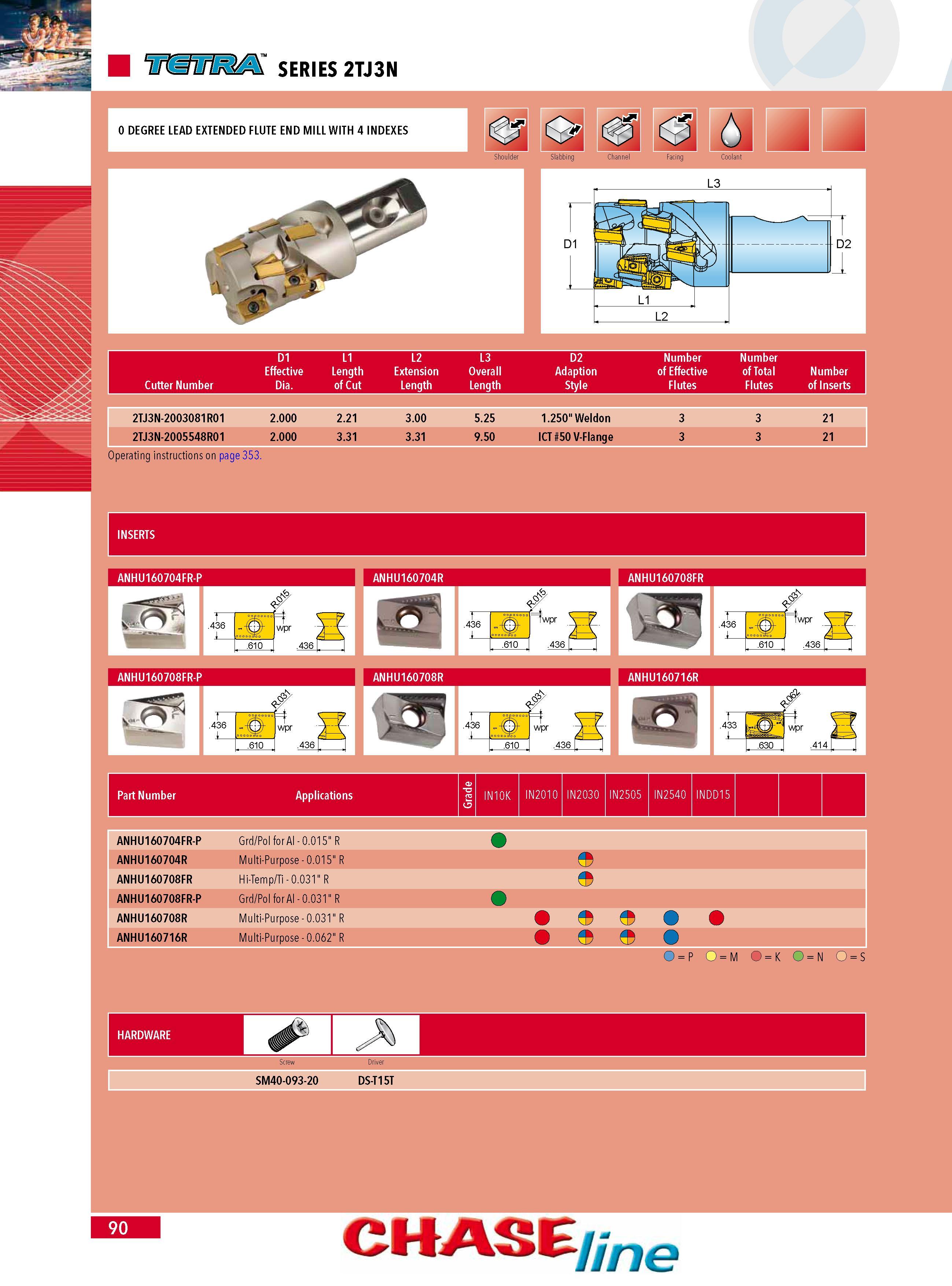

SERIES 2TJ3N 0 DEGREE LEAD EXTENDED FLUTE END MILL WITH 4 INDEXES Shoulder D1 L1 L2 L3 D2 Number Number Effective Length Extension Overall Adaption of Effective of Total Number Cutter Number Dia. of Cut Length Length Style Flutes Flutes of Inserts 2TJ3N-2003081R01 2.000 2.21 3.00 5.25 1.250" Weldon 3 3 21 2TJ3N-2005548R01 2.000 3.31 3.31 9.50 ICT 50 V-Flange 3 3 21 Operating instructions on page 353. ANHU160704FR-P ANHU160704R I ANHU160708FR ANHU160704FR-P Grd Pol for Al - 0.015" R ANHU160704R Multi-Purpose - 0.015" R ANHU160708FR Hi-Temp Ti - 0.031" R ANHU160708FR-P Grd Pol for Al - 0.031" R ANHU160708R Multi-Purpose - 0.031" R ANHU160716R Multi-Purpose - 0.062" R P O M O K O N O S 90 CHASt ne
