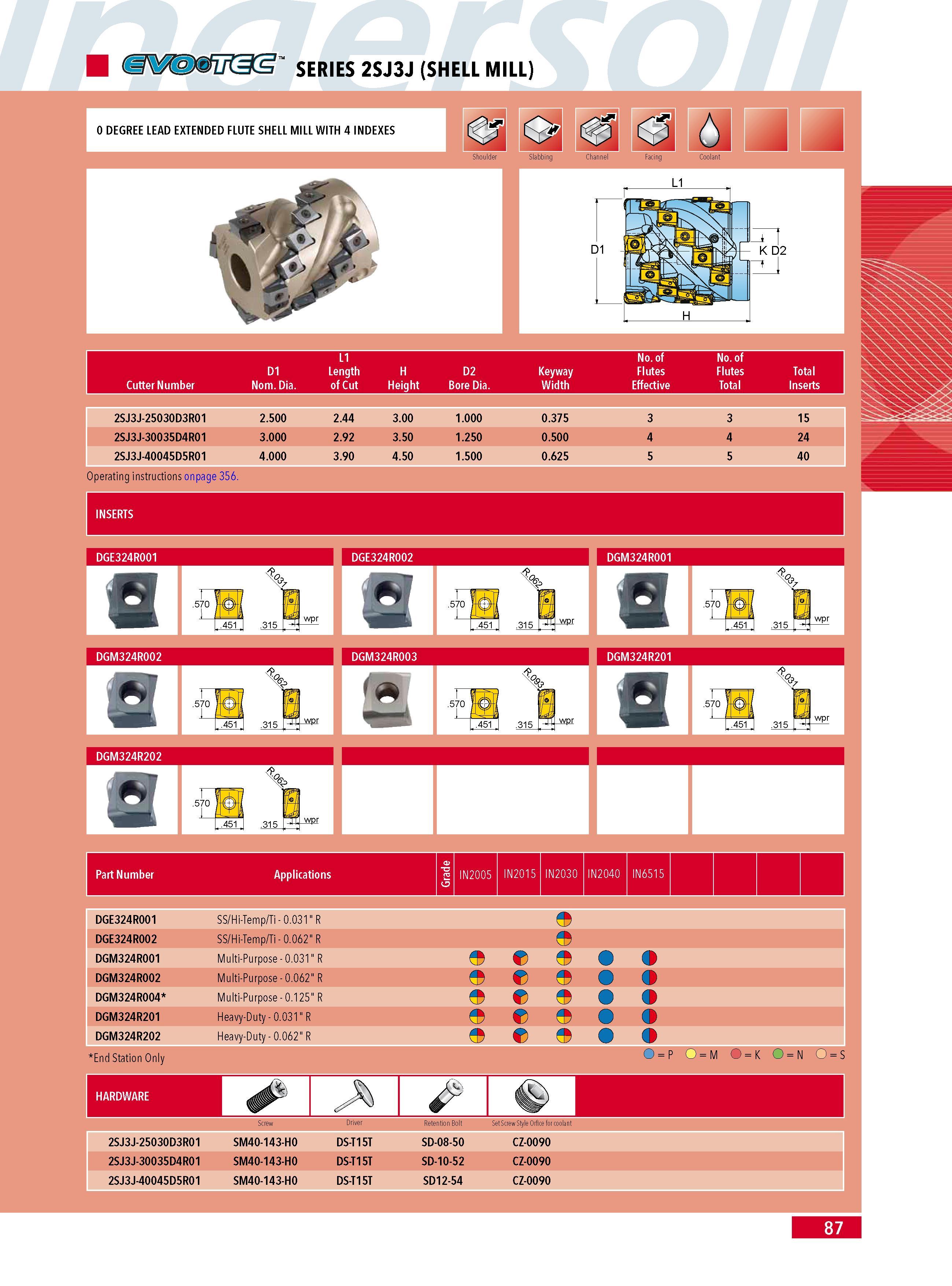

SERIES 2SJ3J (SHELL MILL) 0 DEGREE LEAD EXTENDED FLUTE SHELL MILL WITH 4 INDEXES Slabbing Facing C L1 D1 P KD2 Operating instructions onpage 356. L1 Nm No. of D1 Length H D2 Keyway Flutes Flutes Total Cutter Number Nom. Dia. of Cut Height Bore Dia. Width Effective Total Inserts 2SJ3J-25030D3R01 2.500 2.44 3.00 1.000 0.375 3 3 15 2SJ3J-30035D4R01 3.000 2.92 3.50 1.250 0.500 4 4 24 2SJ3J-40045D5R01 4.000 3.90 4.50 1.500 0.625 5 5 40 Shoulder Channel INSERTS DGE324R001 DGE324R002 DGM324R001 DGE324R001 SS Hi-Temp Ti - 0.031" R DGE324R002 SS Hi-Temp Ti - 0.062" R DGM324R001 Multi-Purpose - 0.031" R e DGM324R002 Multi-Purpose - 0.062" R o DGM324R004 Multi-Purpose - 0.125" R c DGM324R201 Heavy-Duty - 0.031" R o DGM324R202 Heavy-Duty - 0.062" R e End Station Only O P O M O K O N O S Screw Driver Retention Bolt Set Screw Style Orfice for coolant 2SJ3J-25030D3R01 SM40-143-H0 DS-T15T SD-08-50 CZ-0090 2SJ3J-30035D4R01 SM40-143-H0 DS-T15T SD-10-52 CZ-0090 2SJ3J-40045D5R01 SM40-143-H0 DS-T15T SD12-54 CZ-0090 87
