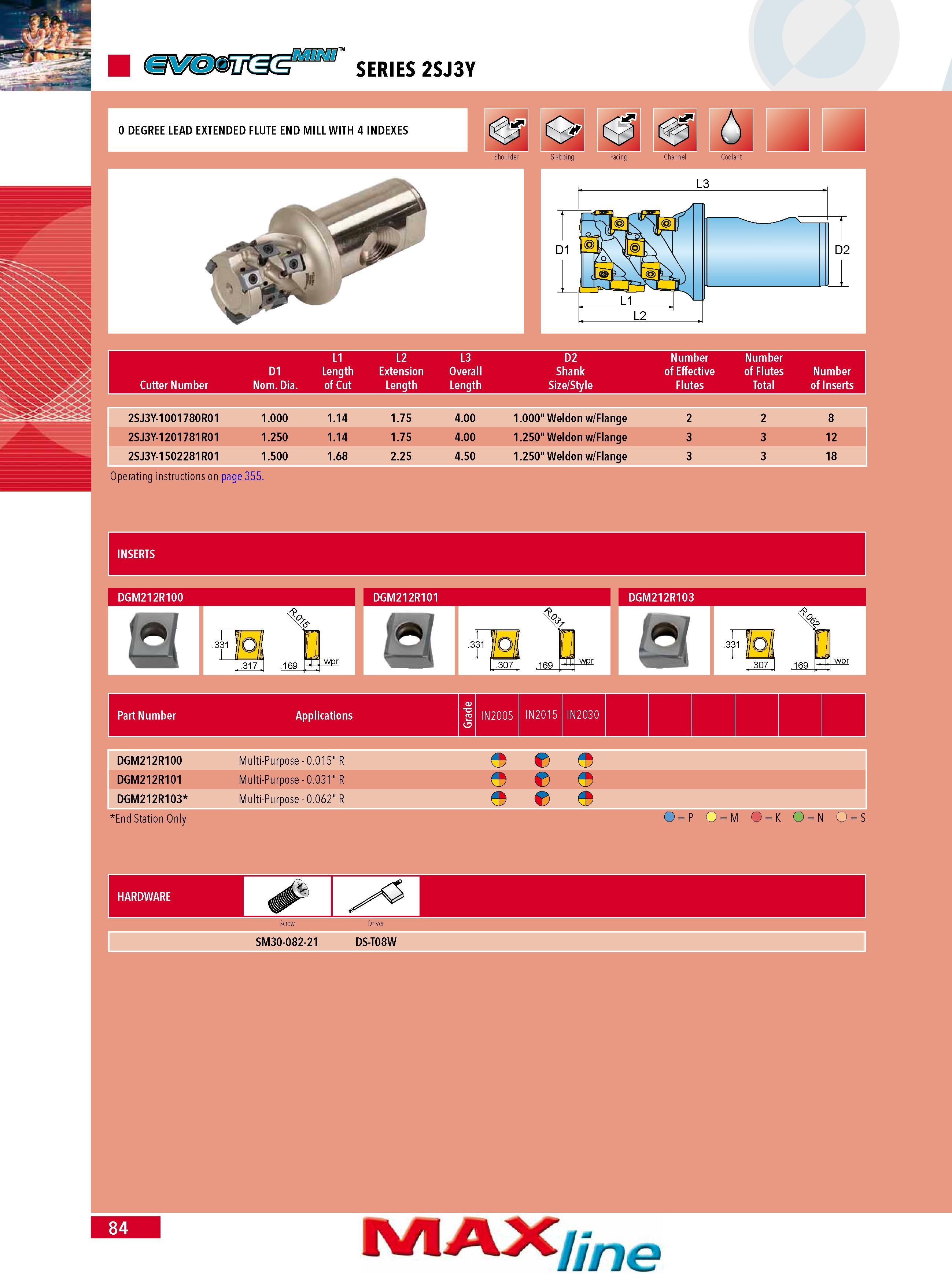

82 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.84

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 84 0082 Lab2u

SERIES 2SJ3Y 0 DEGREE LEAD EXTENDED FLUTE END MILL WITH 4 INDEXES L1 L2 L3 D2 Number Number D1 Length Extension Overall Shank of Effective of Flutes Number Cutter Number Nom. Dia. of Cut Length Length Size Style Flutes Total of Inserts 2SJ3Y-1001780R01 1.000 1.14 1.75 4.00 1.000" Weldon w Flange 2 2 8 2SJ3Y-1201781R01 1.250 1.14 1.75 4.00 1.250" Weldon w Flange 3 3 12 2SJ3Y-1502281R01 1.500 1.68 2.25 4.50 1.250" Weldon w Flange 3 3 18 Operating instructions on page 355. INSERTS DGM212R100 Multi-Purpose - 0.015" R c DGM212R101 Multi-Purpose - 0.031" R DGM212R103 Multi-Purpose - 0.062" R End Station Only O P O M O K O N O S 84 MAX me
