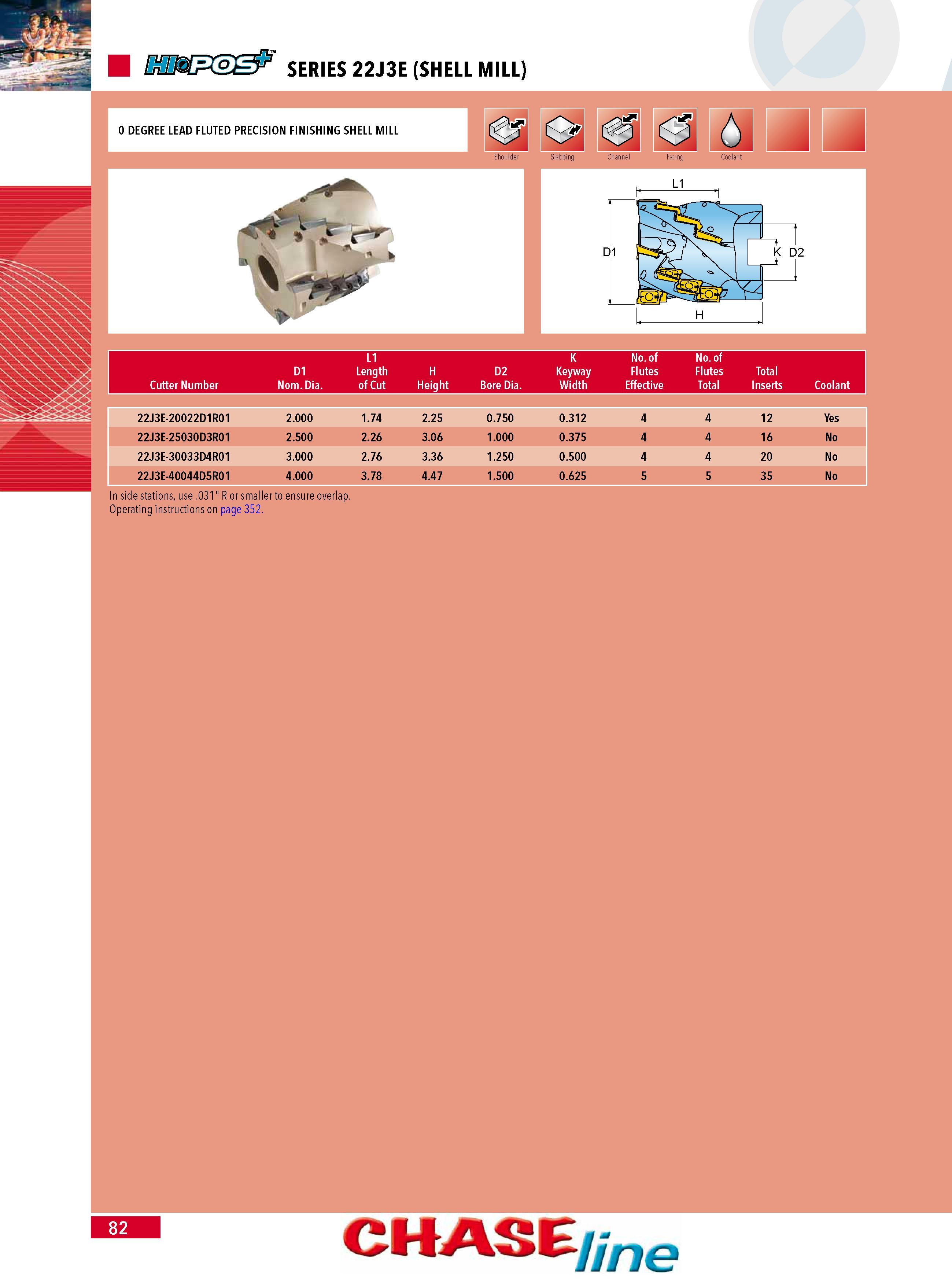

SERIES 22J3E (SHELL MILL) 0 DEGREE LEAD FLUTED PRECISION FINISHING SHELL MILL L1 K No. of No. of D1 Length H D2 Keyway Flutes Flutes Total Cutter Number Nom. Dia. of Cut Height Bore Dia. Width Effective Total Inserts Coolant 22J3E-20022D1R01 2.000 1.74 2.25 0.750 0.312 4 4 12 Yes 22J3E-25030D3R01 2.500 2.26 3.06 1.000 0.375 4 4 16 No 22J3E-30033D4R01 3.000 2.76 3.36 1.250 0.500 4 4 20 No 22J3E-40044D5R01 4.000 3.78 4.47 1.500 0.625 5 5 35 No In side stations use .031" R or smaller to ensure overlap. Operating instructions on page 352. 82 CHAS ne
