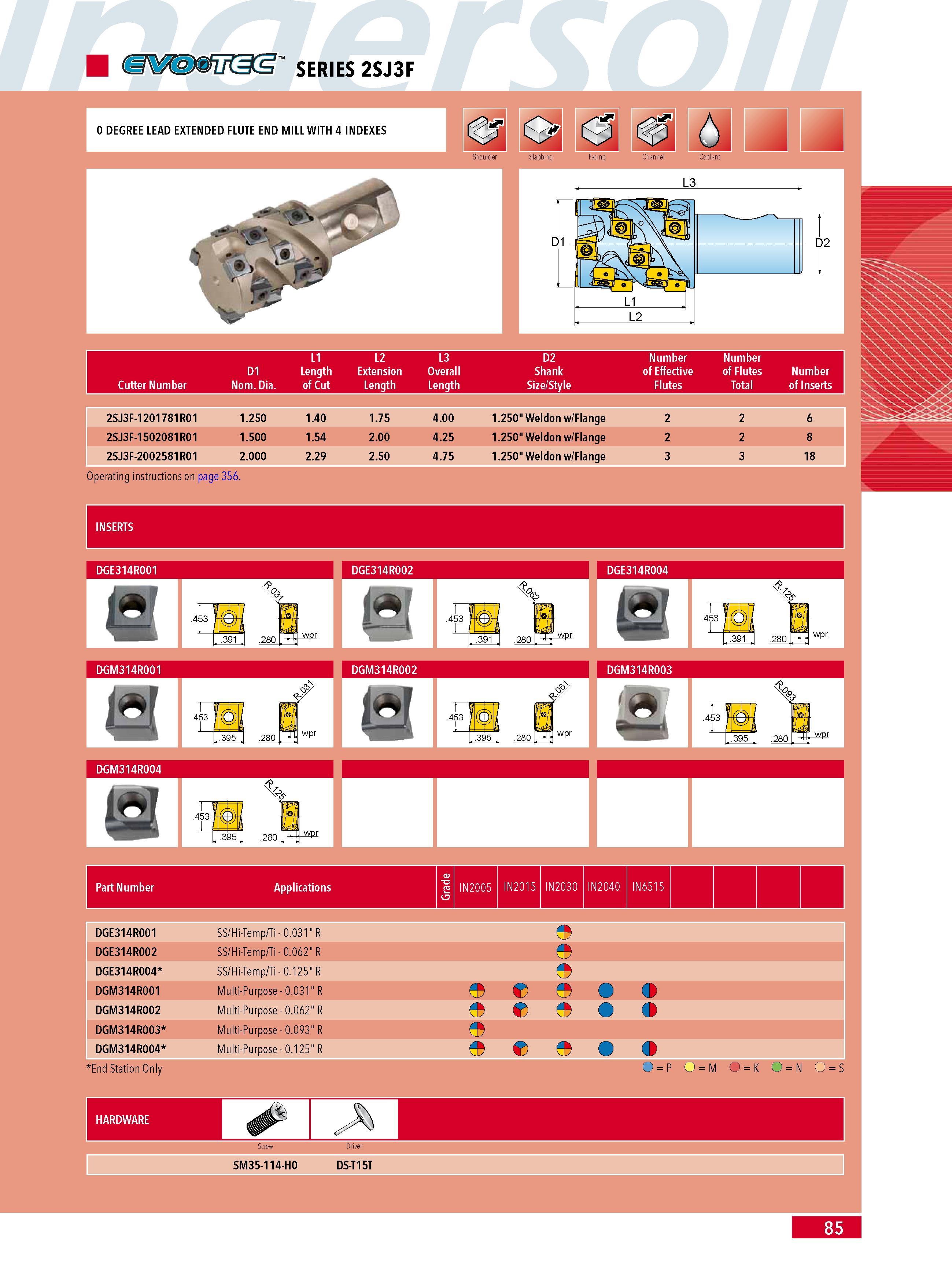

SERIES 2SJ3F 0 DEGREE LEAD EXTENDED FLUTE END MILL WITH 4 INDEXES L1 L2 L3 D2 Number Number D1 Length Extension Overall Shank of Effective of Flutes Number Cutter Number Nom. Dia. of Cut Length Length Size Style Flutes Total of Inserts 2SJ3F-1201781R01 1.250 1.40 1.75 4.00 1.250" Weldon w Flange 2 2 6 2SJ3F-1502081R01 1.500 1.54 2.00 4.25 1.250" Weldon w Flange 2 2 8 2SJ3F-2002581R01 2.000 2.29 2.50 4.75 1.250" Weldon w Flange 3 3 18 Operating instructions on page 356. INSERTS DGE314R001 SS Hi-Temp Ti - 0.031" R DGE314R002 SS Hi-Temp Ti - 0.062" R DGE314R004 SS Hi-Temp Ti - 0.125" R DGM314R001 Multi-Purpose - 0.031" R o 3 DGM314R002 Multi-Purpose - 0.062" R e DGM314R003 Multi-Purpose - 0.093" R DGM314R004 Multi-Purpose - 0.125" R c End Station Only O P O M O K O N O S 85
