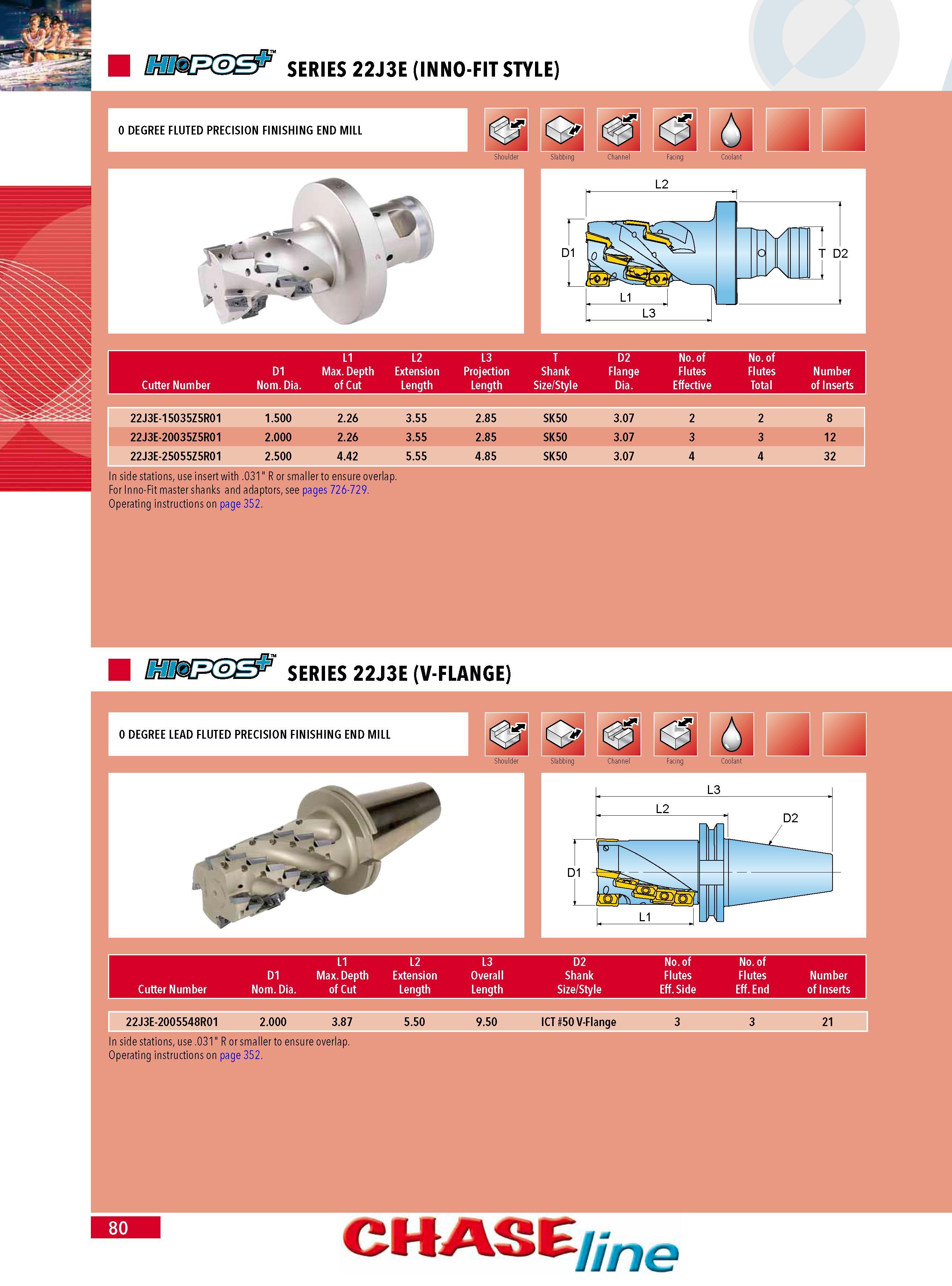

78 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.80

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 80 0078 Lab2u

SERIES 22J3E (INNO-FIT STYLE) 22J3E-15035Z5R01 1.500 2.26 3.55 2.85 SK50 3.07 2 2 8 22J3E-20035Z5R01 2.000 2.26 3.55 2.85 SK50 3.07 3 3 12 22J3E-25055Z5R01 2.500 4.42 5.55 4.85 SK50 3.07 4 4 32 In side stations use insert with .031" R or smaller to ensure overlap. For Inno-Fit master shanks and adaptors see pages 726-729. Operating instructions on page 352. SERIES 22J3E (V-FLANGE) 0 DEGREE LEAD FLUTED PRECISION FINISHING END MILL Shoulder Slabbing Channel Facing Coolant Cutter Number D1 Nom. Dia. L1 Max. Depth of Cut L2 Extension Length L3 Overall Length D2 Shank Size Style No. of Flutes Eff. Side No. of Flutes Nu ff. End of I mber nserts 22J3E-2005548R01 2.000 3.87 5.50 9.50 ICT 50 V-Flange 3 3 21 In side stations use .031" R or smaller to ensure overlap. Operating instructions on page 352. 80 CHASt ne
