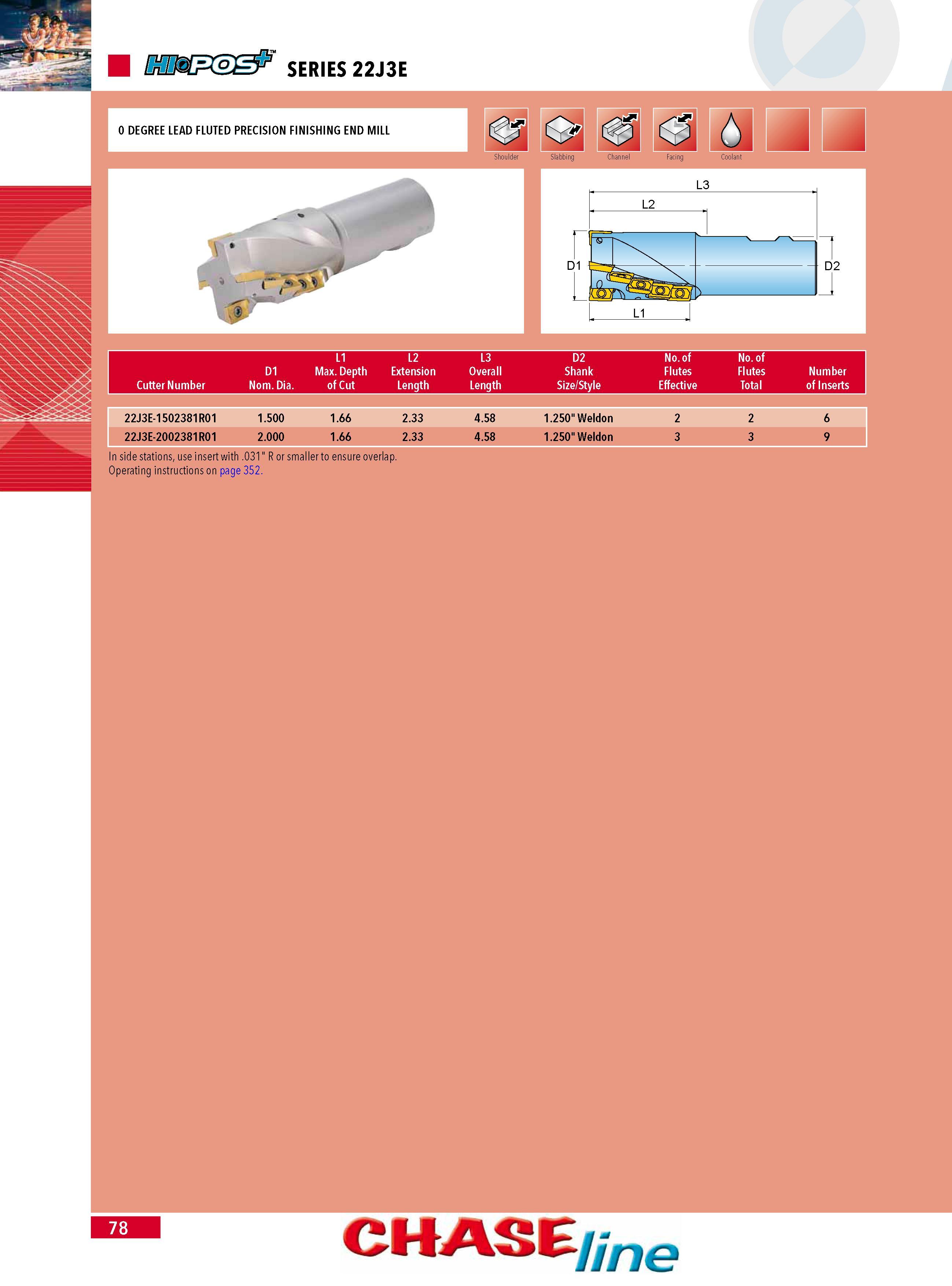

SERIES 22J3E 0 DEGREE LEAD FLUTED PRECISION FINISHING END MILL Shoulder Slabbing Channel Facing Coolant D1 L2 8 IrnH L1 In side stations use insert with .031" R or smaller to ensure overlap. Operating instructions on page 352. D2 L1 L2 L3 D2 No. of No. of D1 Max. Depth Extension Overall Shank Flutes Flutes Number Cutter Number Nom. Dia. of Cut Length Length Size Style E ffective Total of Inserts 22J3E-1502381R01 1.500 1.66 2.33 4.58 1.250" Weldon 2 2 6 22J3E-2002381R01 2.000 1.66 2.33 4.58 1.250" Weldon 3 3 9 78 CH VSE7e
