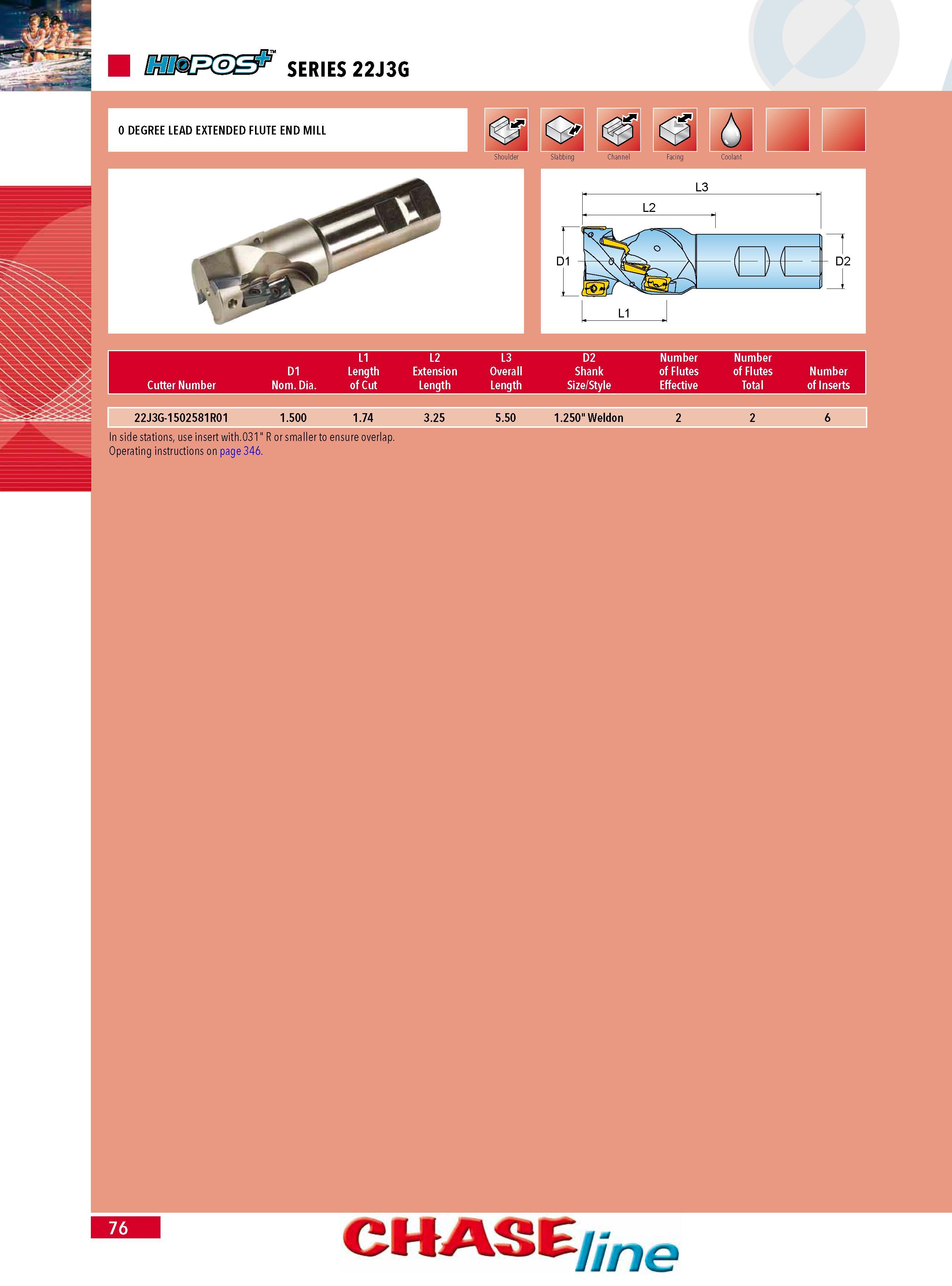

SERIES 22J3G 0 DEGREE LEAD EXTENDED FLUTE END MILL 6 Shoulder Slabbing Channel Facing Coolant In side stations use insert with.031" R or smaller to ensure overlap. Operating instructions on page 346. L1 L2 L3 D2 Number Number D1 Length Extension Overall Shank of Flutes of Flutes Number Cutter Number Nom. Dia. of Cut Length Length Size Style Effective Total of Inserts 22J3G-1502581R01 1.500 1.74 3.25 5.50 1.250" Weldon 2 2 6 76 CH VSE7e
