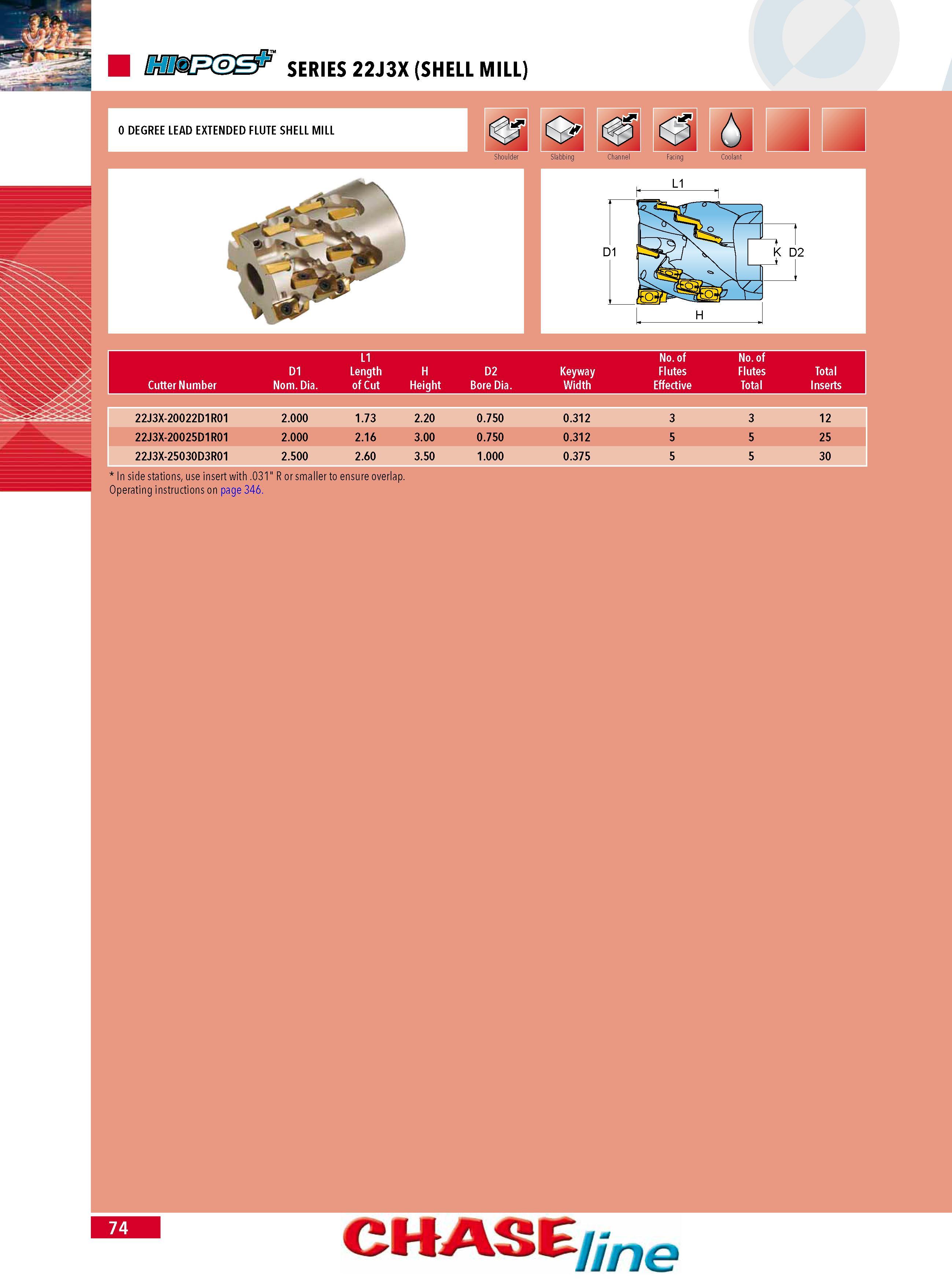

SERIES 22J3X (SHELL MILL) 0 DEGREE LEAD EXTENDED FLUTE SHELL MILL L1 No. of No. of D1 Length H D2 Keyway Flutes Flutes Total Cutter Number Nom. Dia. of Cut Height Bore Dia. Width Effective Total Inserts 22J3X-20022D1R01 2.000 1.73 2.20 0.750 0.312 3 3 12 22J3X-20025D1R01 2.000 2.16 3.00 0.750 0.312 5 5 25 22J3X-25030D3R01 2.500 2.60 3.50 1.000 0.375 5 5 30 In side stations use insert with .031" R or smaller to ensure overlap. Operating instructions on page 346. 74 CH VSE7e
