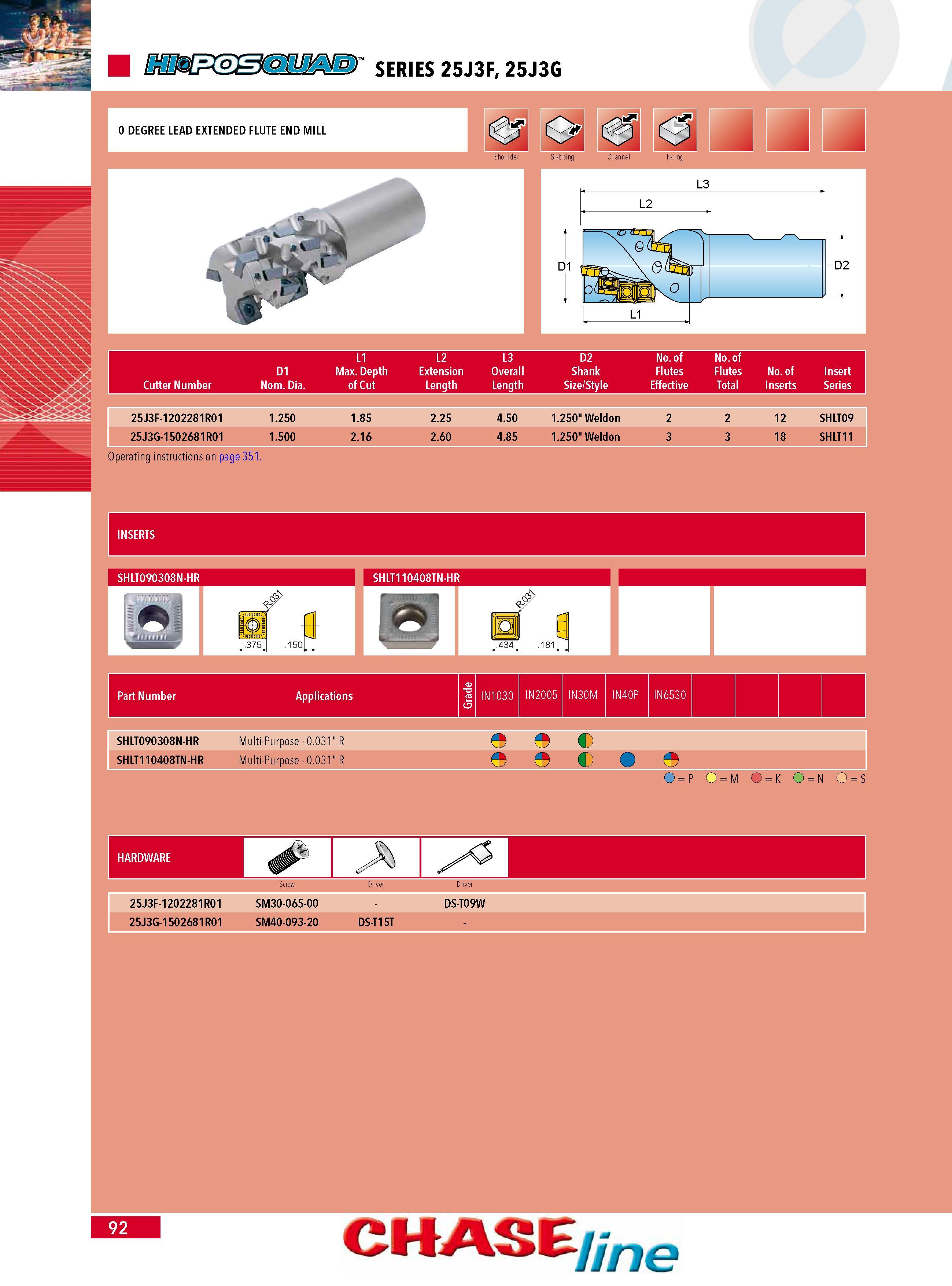

SERIES 25J3F 25J3G 0 DEGREE LEAD EXTENDED FLUTE END MILL Shoulder L1 L2 L3 D2 No. of No. of D1 Max. Depth Extension Overall Shank Flutes Flutes No. of Insert Cutter Number Nom. Dia. of Cut Length Length Size Style Effective Total Inserts Series 25J3F-1202281R01 1.250 1.85 2.25 4.50 1.250" Weldon 2 2 12 SHLT09 25J3G-1502681R01 1.500 2.16 2.60 4.85 1.250" Weldon 3 3 18 SHLT11 Operating instructions on page 351. SHLT090308N-HR Multi-Purpose - 0.031" R c SHLT110408TN-HR Multi-Purpose - 0.031" R P O M O K O N O S Screw Driver Driver 25J3F-1202281R01 SM30-065-00 DS-T09W 25J3G-1502681R01 SM40-093-20 DS-T15T 92 CH VSE7e
