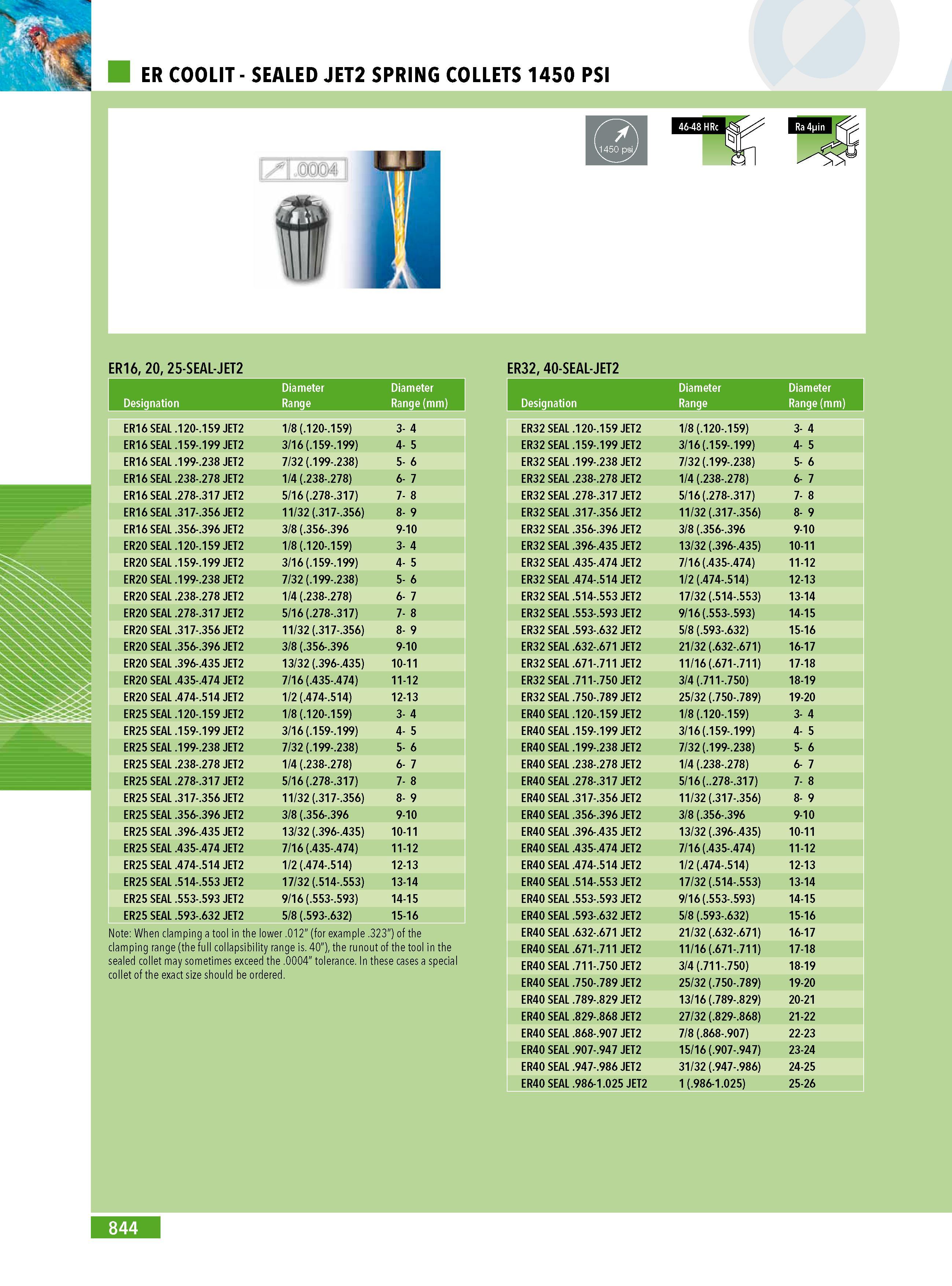

842 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.844

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 844 0842 Lab2u

ER COOLIT - SEALED JET2 SPRING COLLETS 1450 PSI ER16 20 25-SEAL-JET2 ER3240-SEAL-JET2 Diameter Diameter Diameter Diameter Designation Range Range (mm) Designation Range Range (mm) ER16 SEAL .120-.159 JET2 1 8 (.120-.159) 3- 4 ER16 SEAL .159-.199 JET2 3 16 (.159-.199) 5 4- ER16 SEAL .199-.238 JET2 7 32 (.199-.238) 6 5- ER16 SEAL .238-.278 JET2 1 4 (.238-.278) 7 6- ER16 SEAL .278-.317 JET2 5 16 (.278-.317) 8 7- ER16 SEAL .317-.356 JET2 11 32 (.317-.356) 9 8- ER16 SEAL .356-.396 JET2 3 8 (.356-.396 9-10 ER20 SEAL .120-.159 JET2 1 8 (.120-.159) 3- 4 ER20 SEAL .159-.199 JET2 3 16 (.159-.199) 5 4- ER20 SEAL .199-.238 JET2 7 32 (.199-.238) 6 5- ER20 SEAL .238-.278 JET2 1 4 (.238-.278) 7 6- ER20 SEAL .278-.317 JET2 5 16 (.278-.317) 8 7- ER20 SEAL .317-.356 JET2 11 32 (.317-.356) 9 8- ER20 SEAL .356-.396 JET2 3 8 (.356-.396 9-10 ER20 SEAL .396-.435 JET2 13 32 (.396-.435) 10-11 ER20 SEAL .435-.474 JET2 7 16 (.435-.474) 11-12 ER20 SEAL .474-.514 JET2 1 2 (.474-.514) 12-13 ER25 SEAL .120-.159 JET2 1 8 (.120-.159) 3- 4 ER25 SEAL .159-.199 JET2 3 16 (.159-.199) 5 4- ER25 SEAL .199-.238 JET2 7 32 (.199-.238) 6 5- ER25 SEAL .238-.278 JET2 1 4 (.238-.278) 7 6- ER25 SEAL .278-.317 JET2 5 16 (.278-.317) 8 7- ER25 SEAL .317-.356 JET2 11 32 (.317-.356) 9 8- ER25 SEAL .356-.396 JET2 3 8 (.356-.396 9-10 ER25 SEAL .396-.435 JET2 13 32 (.396-.435) 10-11 ER25 SEAL .435-.474 JET2 7 16 (.435-.474) 11-12 ER25 SEAL .474-.514 JET2 1 2 (.474-.514) 12-13 ER25 SEAL .514-.553 JET2 17 32 (.514-.553) 13-14 ER25 SEAL .553-.593 JET2 9 16 (.553-.593) 14-15 ER25 SEAL .593-.632 JET2 5 8 (.593-.632) 15-16 Note: When clamping a tool in the lower .012" (for example .323") of the clamping range (the full collapsibility range is. 40") the runout of the tool in the sealed collet may sometimes exceed the .0004" tolerance. In these cases a special collet of the exact size should be ordered. ER32 SEAL .120-.159 JET2 1 8 (.120-.159) 3- 4 ER32 SEAL .159-.199 JET2 3 16 (.159-.199) 4- 5 ER32 SEAL .199-.238 JET2 7 32 (.199-.238) 5- 6 ER32 SEAL .238-.278 JET2 1 4 (.238-.278) 7 6- ER32 SEAL .278-.317 JET2 5 16 (.278-.317) 8 7- ER32 SEAL .317-.356 JET2 11 32 (.317-.356) 9 8- ER32 SEAL .356-.396 JET2 3 8 (.356-.396 9-10 ER32 SEAL .396-.435 JET2 13 32 (.396-.435) 10-11 ER32 SEAL .435-.474 JET2 7 16 (.435-.474) 11-12 ER32 SEAL .474-.514 JET2 1 2 (.474-.514) 12-13 ER32 SEAL .514-.553 JET2 17 32 (.514-.553) 13-14 ER32 SEAL .553-.593 JET2 9 16 (.553-.593) 14-15 ER32 SEAL .593-.632 JET2 5 8 (.593-.632) 15-16 ER32 SEAL .632-.671 JET2 21 32 (.632-.671) 16-17 ER32 SEAL .671-.711 JET2 11 16 (.671-.711) 17-18 ER32 SEAL .711-.750 JET2 3 4 (.711-.750) 18-19 ER32 SEAL .750-.789 JET2 25 32 (.750-.789) 19-20 ER40 SEAL .120-.159 JET2 1 8 (.120-.159) 3- 4 ER40 SEAL .159-.199 JET2 3 16 (.159-.199) 4- 5 ER40 SEAL .199-.238 JET2 7 32 (.199-.238) 5- 6 ER40 SEAL .238-.278 JET2 1 4 (.238-.278) 7 6- ER40 SEAL .278-.317 JET2 5 16 (..278-.317) 8 7- ER40 SEAL .317-.356 JET2 11 32 (.317-.356) 9 8- ER40 SEAL .356-.396 JET2 3 8 (.356-.396 9-10 ER40 SEAL .396-.435 JET2 13 32 (.396-.435) 10-11 ER40 SEAL .435-.474 JET2 7 16 (.435-.474) 11-12 ER40 SEAL .474-.514 JET2 1 2 (.474-.514) 12-13 ER40 SEAL .514-.553 JET2 17 32 (.514-.553) 13-14 ER40 SEAL .553-.593 JET2 9 16 (.553-.593) 14-15 ER40 SEAL .593-.632 JET2 5 8 (.593-.632) 15-16 ER40 SEAL .632-.671 JET2 21 32 (.632-.671) 16-17 ER40 SEAL .671-.711 JET2 11 16 (.671-.711) 17-18 ER40 SEAL .711-.750 JET2 3 4 (.711-.750) 18-19 ER40 SEAL .750-.789 JET2 25 32 (.750-.789) 19-20 ER40 SEAL .789-.829 JET2 13 16 (.789-.829) 20-21 ER40 SEAL .829-.868 JET2 27 32 (.829-.868) 21-22 ER40 SEAL .868-.907 JET2 7 8 (.868-.907) 22-23 ER40 SEAL .907-.947 JET2 15 16 (.907-.947) 23-24 ER40 SEAL .947-.986 JET2 31 32 (.947-.986) 24-25 ER40 SEAL .986-1.025 JET2 1 (.986-1.025) 25-26 844
