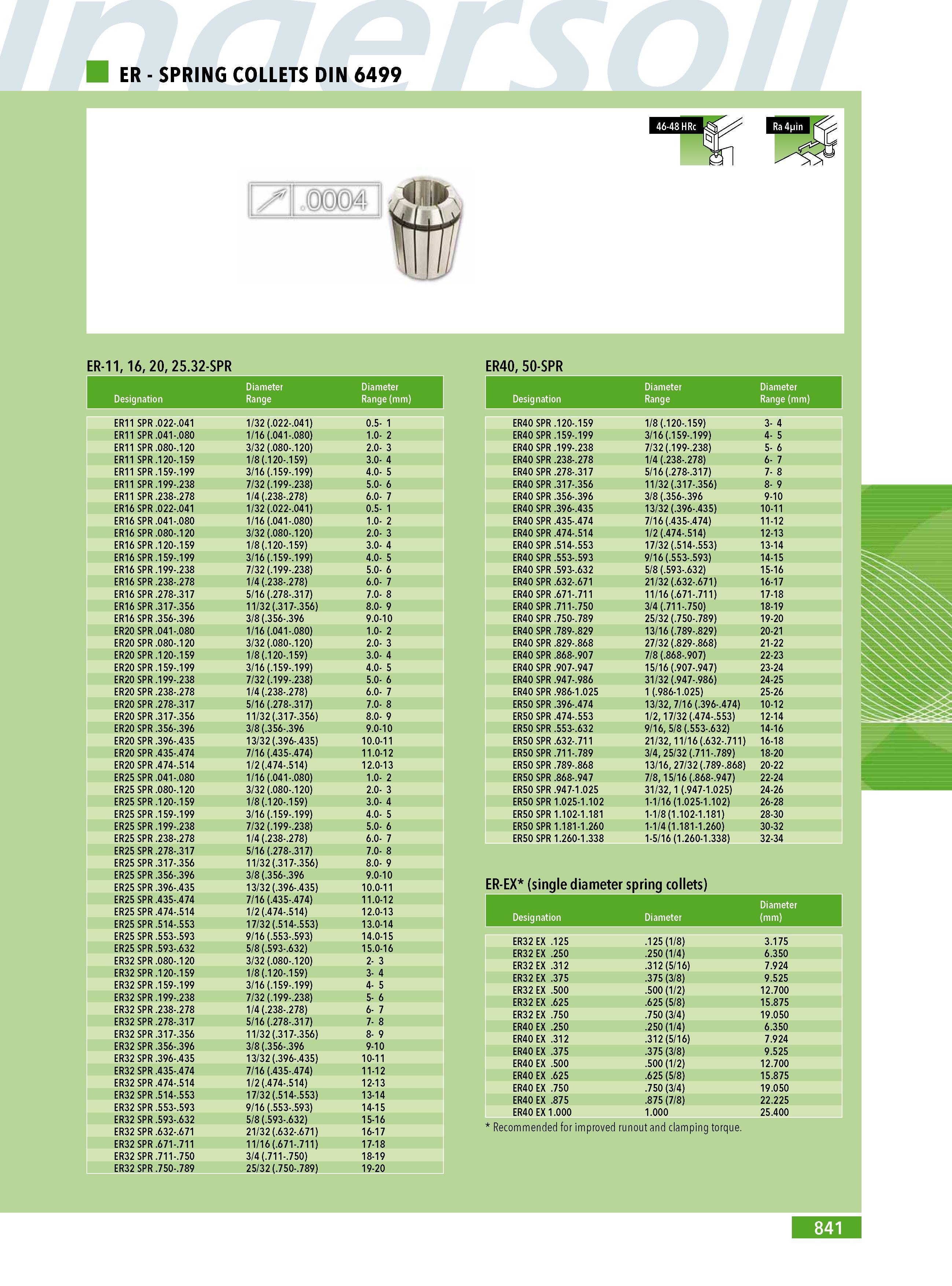

ER - SPRING COLLETS DIN 6499 ER-11 16 20 25.32-SPR Designation Diameter Range Diameter Range (mm) ER11 SPR .022-.041 1 32 (.022-.041) 0.5- 1 ER11 SPR .041-.080 1 16 (.041-.080) 1.0- 2 ER11 SPR .080-.120 3 32 (.080-.120) 2.0- 3 ER11 SPR .120-.159 1 8 (.120-.159) 3.0- 4 ER11 SPR .159-.199 3 16 (.159-.199) 4.0- 5 ER11 SPR .199-.238 7 32 (.199-.238) 5.0- 6 ER11 SPR .238-.278 1 4 (.238-.278) 6.0- 7 ER16 SPR .022-.041 1 32 (.022-.041) 0.5- 1 ER16 SPR .041-.080 1 16 (.041-.080) 1.0- 2 ER16 SPR .080-.120 3 32 (.080-.120) 2.0- 3 ER16 SPR .120-.159 1 8 (.120-.159) 3.0- 4 ER16 SPR .159-.199 3 16 (.159-.199) 4.0- 5 ER16 SPR .199-.238 7 32 (.199-.238) 5.0- 6 ER16 SPR .238-.278 1 4 (.238-.278) 6.0- 7 ER16 SPR .278-.317 5 16 (.278-.317) 7.0- 8 ER16 SPR .317-.356 11 32 (.317-.356) 8.0- 9 ER16 SPR .356-.396 3 8 (.356-.396 9.0-10 ER20 SPR .041-.080 1 16 (.041-.080) 1.0- 2 ER20 SPR .080-.120 3 32 (.080-.120) 2.0- 3 ER20 SPR .120-.159 1 8 (.120-.159) 3.0- 4 ER20 SPR .159-.199 3 16 (.159-.199) 4.0- 5 ER20 SPR .199-.238 7 32 (.199-.238) 5.0- 6 ER20 SPR .238-.278 1 4 (.238-.278) 6.0- 7 ER20 SPR .278-.317 5 16 (.278-.317) 7.0- 8 ER20 SPR .317-.356 11 32 (.317-.356) 8.0- 9 ER20 SPR .356-.396 3 8 (.356-.396 9.0-10 ER20 SPR .396-.435 13 32 (.396-.435) 10.0-11 ER20 SPR .435-.474 7 16 (.435-.474) 11.0-12 ER20 SPR .474-.514 1 2 (.474-.514) 12.0-13 ER25 SPR .041-.080 1 16 (.041-.080) 1.0- 2 ER25 SPR .080-.120 3 32 (.080-.120) 2.0- 3 ER25 SPR .120-.159 1 8 (.120-.159) 3.0- 4 ER25 SPR .159-.199 3 16 (.159-.199) 4.0- 5 ER25 SPR .199-.238 7 32 (.199-.238) 5.0- 6 ER25 SPR .238-.278 1 4 (.238-.278) 6.0- 7 ER25 SPR .278-.317 5 16 (.278-.317) 7.0- 8 ER25 SPR .317-.356 11 32 (.317-.356) 8.0- 9 ER25 SPR .356-.396 3 8 (.356-.396 9.0-10 ER25 SPR .396-.435 13 32 (.396-.435) 10.0-11 ER25 SPR .435-.474 7 16 (.435-.474) 11.0-12 ER25 SPR .474-.514 1 2 (.474-.514) 12.0-13 ER25 SPR .514-.553 17 32 (.514-.553) 13.0-14 ER25 SPR .553-.593 9 16 (.553-.593) 14.0-15 ER25 SPR .593-.632 5 8 (.593-.632) 15.0-16 ER32 SPR .080-.120 3 32 (.080-.120) 2- 3 ER32 SPR .120-.159 1 8 (.120-.159) 3- 4 ER32 SPR .159-.199 3 16 (.159-.199) 4- 5 ER32 SPR .199-.238 7 32 (.199-.238) 5- 6 ER32 SPR .238-.278 1 4 (.238-.278) 6- 7 ER32 SPR .278-.317 5 16 (.278-.317) 7- 8 ER32 SPR .317-.356 11 32 (.317-.356) 8- 9 ER32 SPR .356-.396 3 8 (.356-.396 9-10 ER32 SPR .396-.435 13 32 (.396-.435) 10-11 ER32 SPR .435-.474 7 16 (.435-.474) 11-12 ER32 SPR .474-.514 1 2 (.474-.514) 12-13 ER32 SPR .514-.553 17 32 (.514-.553) 13-14 ER32 SPR .553-.593 9 16 (.553-.593) 14-15 ER32 SPR .593-.632 5 8 (.593-.632) 15-16 ER32 SPR .632-.671 21 32 (.632-.671) 16-17 ER32 SPR .671-.711 11 16 (.671-.711) 17-18 ER32 SPR .711-.750 3 4 (.711-.750) 18-19 ER32 SPR .750-.789 25 32 (.750-.789) 19-20 ER40 50-SPR Designation Diameter Range Diameter Range (mm) ER40 SPR .120-.159 1 8 (.120-.159) 3- 4 ER40 SPR .159-.199 3 16 (.159-.199) 4- 5 ER40 SPR .199-.238 7 32 (.199-.238) 5- 6 ER40 SPR .238-.278 1 4 (.238-.278) 6- 7 ER40 SPR .278-.317 5 16 (.278-.317) 7- 8 ER40 SPR .317-.356 11 32 (.317-.356) 8- 9 ER40 SPR .356-.396 3 8 (.356-.396 9-10 ER40 SPR .396-.435 13 32 (.396-.435) 10-11 ER40 SPR .435-.474 7 16 (.435-.474) 11-12 ER40 SPR .474-.514 1 2 (.474-.514) 12-13 ER40 SPR .514-.553 17 32 (.514-.553) 13-14 ER40 SPR .553-.593 9 16 (.553-.593) 14-15 ER40 SPR .593-.632 5 8 (.593-.632) 15-16 ER40 SPR .632-.671 21 32 (.632-.671) 16-17 ER40 SPR .671-.711 11 16 (.671-.711) 17-18 ER40 SPR .711-.750 3 4 (.711-.750) 18-19 ER40 SPR .750-.789 25 32 (.750-.789) 19-20 ER40 SPR .789-.829 13 16 (.789-.829) 20-21 ER40 SPR .829-.868 27 32 (.829-.868) 21-22 ER40 SPR .868-.907 7 8 (.868-.907) 22-23 ER40 SPR .907-.947 15 16 (.907-.947) 23-24 ER40 SPR .947-.986 31 32 (.947-.986) 24-25 ER40 SPR .986-1.025 1 (.986-1.025) 25-26 ER50 SPR .396-.474 13 32 7 16 (.396-.474) 10-12 ER50 SPR .474-.553 1 2 17 32 (.474-.553) 12-14 ER50 SPR .553-.632 9 16 5 8 (.553-.632) 14-16 ER50 SPR .632-.711 21 32 11 16 (.632-.711) 16-18 ER50 SPR .711-.789 3 4 25 32 (.711-.789) 18-20 ER50 SPR .789-.868 13 16 27 32 (.789-.868) 20-22 ER50 SPR .868-.947 7 8 15 16 (.868-.947) 22-24 ER50 SPR .947-1.025 31 32 1 (.947-1.025) 24-26 ER50 SPR 1.025-1.102 1-1 16 (1.025-1.102) 26-28 ER50 SPR 1.102-1.181 1-1 8 (1.102-1.181) 28-30 ER50 SPR 1.181-1.260 1-1 4 (1.181-1.260) 30-32 ER50 SPR 1.260-1.338 1-5 16 (1.260-1.338) 32-34 ER-EX (single diameter spring collets) Designation Diameter Diameter (mm) ER32 EX .125 .125 (1 8) 3.175 ER32 EX .250 .250 (1 4) 6.350 ER32 EX .312 .312 (5 16) 7.924 ER32 EX .375 .375 (3 8) 9.525 ER32 EX .500 .500 (1 2) 12.700 ER32 EX .625 .625 (5 8) 15.875 ER32 EX .750 .750 (3 4) 19.050 ER40 EX .250 .250 (1 4) 6.350 ER40 EX .312 .312 (5 16) 7.924 ER40 EX .375 .375 (3 8) 9.525 ER40 EX .500 .500 (1 2) 12.700 ER40 EX .625 .625 (5 8) 15.875 ER40 EX .750 .750 (3 4) 19.050 ER40 EX .875 .875 (7 8) 22.225 ER40 EX 1.000 1.000 25.400 Recommended for improved ru inout and clamping torque. 841
