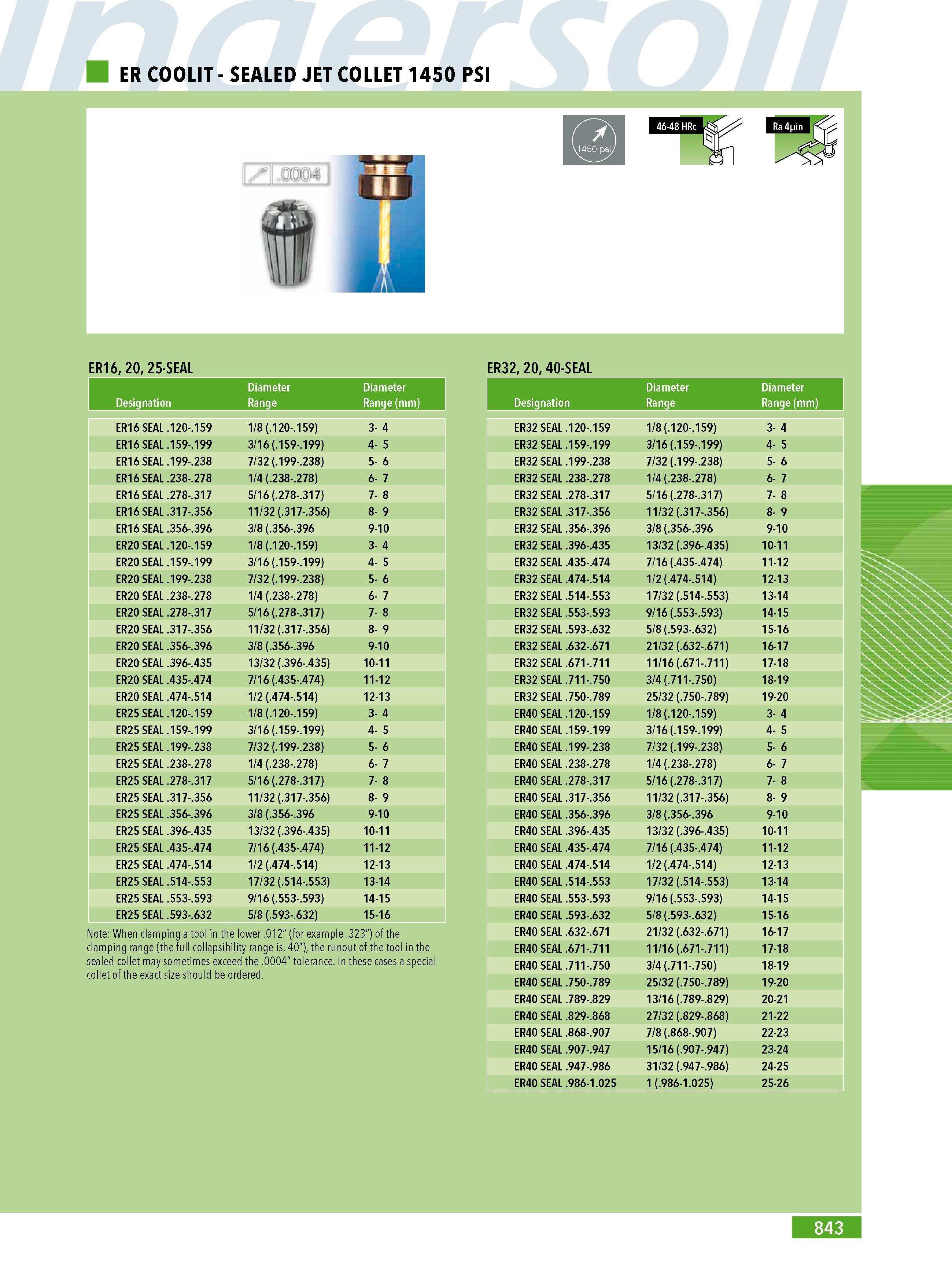

841 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.843

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 843 0841 Lab2u

ER COOLIT - SEALED JET COLLET 1450 PSI ER16 20 25-SEAL Diameter Diameter Designation Range Range (mm) ER32 20 40-SEAL Diameter Diameter Designation Range Range (mm) ER16 SEAL .120-.159 1 8 (.120-.159) 3- 4 ER16 SEAL .159-.199 3 16 (.159-.199) 5 4- ER16 SEAL .199-.238 7 32 (.199-.238) 6 5- ER16 SEAL .238-.278 1 4 (.238-.278) 7 6- ER16 SEAL .278-.317 5 16 (.278-.317) 8 7- ER16 SEAL .317-.356 11 32 (.317-.356) 9 8- ER16 SEAL .356-.396 3 8 (.356-.396 9-10 ER20 SEAL .120-.159 1 8 (.120-.159) 3- 4 ER20 SEAL .159-.199 3 16 (.159-.199) 5 4- ER20 SEAL .199-.238 7 32 (.199-.238) 6 5- ER20 SEAL .238-.278 1 4 (.238-.278) 7 6- ER20 SEAL .278-.317 5 16 (.278-.317) 8 7- ER20 SEAL .317-.356 11 32 (.317-.356) 9 8- ER20 SEAL .356-.396 3 8 (.356-.396 9-10 ER20 SEAL .396-.435 13 32 (.396-.435) 10-11 ER20 SEAL .435-.474 7 16 (.435-.474) 11-12 ER20 SEAL .474-.514 1 2 (.474-.514) 12-13 ER25 SEAL .120-.159 1 8 (.120-.159) 3- 4 ER25 SEAL .159-.199 3 16 (.159-.199) 5 4- ER25 SEAL .199-.238 7 32 (.199-.238) 6 5- ER25 SEAL .238-.278 1 4 (.238-.278) 7 6- ER25 SEAL .278-.317 5 16 (.278-.317) 8 7- ER25 SEAL .317-.356 11 32 (.317-.356) 9 8- ER25 SEAL .356-.396 3 8 (.356-.396 9-10 ER25 SEAL .396-.435 13 32 (.396-.435) 10-11 ER25 SEAL .435-.474 7 16 (.435-.474) 11-12 ER25 SEAL .474-.514 1 2 (.474-.514) 12-13 ER25 SEAL .514-.553 17 32 (.514-.553) 13-14 ER25 SEAL .553-.593 9 16 (.553-.593) 14-15 ER25 SEAL .593-.632 5 8 (.593-.632) 15-16 Note: When clamping a tool in the lower .012" (for example .323") of the clamping range (the full collapsibility range is. 40") the runout of the tool in the sealed collet may sometimes exceed the .0004" tolerance. In these cases a special collet of the exact size should be ordered. ER32 SEAL .120-.159 1 8 (.120-.159) 3- 4 ER32 SEAL .159-.199 3 16 (.159-.199) 5 4- ER32 SEAL .199-.238 7 32 (.199-.238) 6 5- ER32 SEAL .238-.278 1 4 (.238-.278) 7 6- ER32 SEAL .278-.317 5 16 (.278-.317) 8 7- ER32 SEAL .317-.356 11 32 (.317-.356) 9 8- ER32 SEAL .356-.396 3 8 (.356-.396 9-10 ER32 SEAL .396-.435 13 32 (.396-.435) 10-11 ER32 SEAL .435-.474 7 16 (.435-.474) 11-12 ER32 SEAL .474-.514 1 2 (.474-.514) 12-13 ER32 SEAL .514-.553 17 32 (.514-.553) 13-14 ER32 SEAL .553-.593 9 16 (.553-.593) 14-15 ER32 SEAL .593-.632 5 8 (.593-.632) 15-16 ER32 SEAL .632-.671 21 32 (.632-.671) 16-17 ER32 SEAL .671-.711 11 16 (.671-.711) 17-18 ER32 SEAL .711-.750 3 4 (.711-.750) 18-19 ER32 SEAL .750-.789 25 32 (.750-.789) 19-20 ER40 SEAL .120-.159 1 8 (.120-.159) 3- 4 ER40 SEAL .159-.199 3 16 (.159-.199) 5 4- ER40 SEAL .199-.238 7 32 (.199-.238) 6 5- ER40 SEAL .238-.278 1 4 (.238-.278) 7 6- ER40 SEAL .278-.317 5 16 (.278-.317) 8 7- ER40 SEAL .317-.356 11 32 (.317-.356) 9 8- ER40 SEAL .356-.396 3 8 (.356-.396 9-10 ER40 SEAL .396-.435 13 32 (.396-.435) 10-11 ER40 SEAL .435-.474 7 16 (.435-.474) 11-12 ER40 SEAL .474-.514 1 2 (.474-.514) 12-13 ER40 SEAL .514-.553 17 32 (.514-.553) 13-14 ER40 SEAL .553-.593 9 16 (.553-.593) 14-15 ER40 SEAL .593-.632 5 8 (.593-.632) 15-16 ER40 SEAL .632-.671 21 32 (.632-.671) 16-17 ER40 SEAL .671-.711 11 16 (.671-.711) 17-18 ER40 SEAL .711-.750 3 4 (.711-.750) 18-19 ER40 SEAL .750-.789 25 32 (.750-.789) 19-20 ER40 SEAL .789-.829 13 16 (.789-.829) 20-21 ER40 SEAL .829-.868 27 32 (.829-.868) 21-22 ER40 SEAL .868-.907 7 8 (.868-.907) 22-23 ER40 SEAL .907-.947 15 16 (.907-.947) 23-24 ER40 SEAL .947-.986 31 32 (.947-.986) 24-25 ER40 SEAL .986-1.025 1 (.986-1.025) 25-26 843
