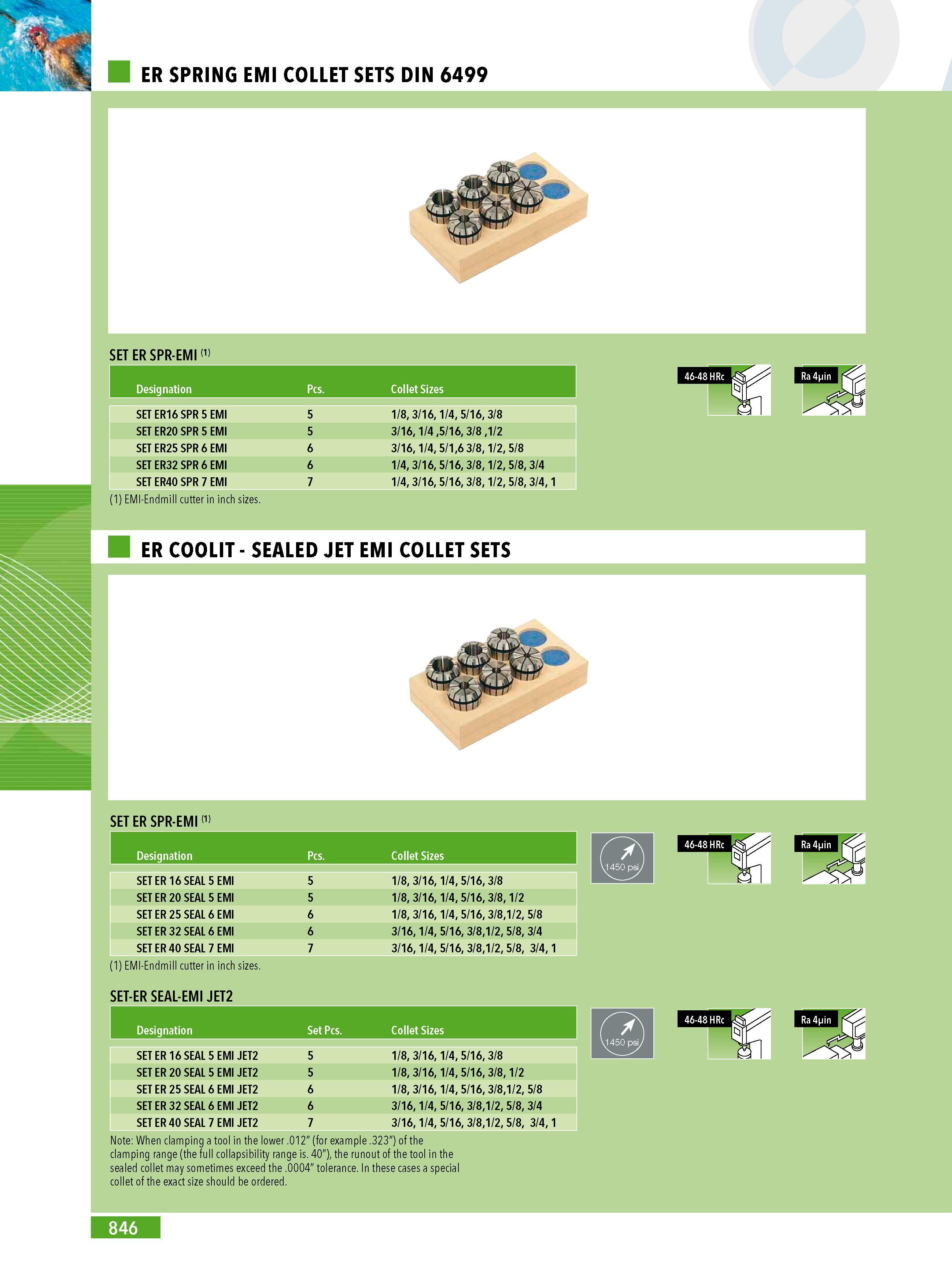

844 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.846

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 846 0844 Lab2u

ER SPRING EMI COLLET SETS DIN 6499 SET ER SPR-EMI (1) Designation Collet Sizes SET ER16 SPR 5 EMI 5 1 8 3 16 1 4 5 16 3 8 SET ER20 SPR 5 EMI 5 3 16 1 4 5 16 3 8 1 2 SET ER25 SPR 6 EMI 6 3 16 1 4 5 16 3 8 1 2 5 8 SET ER32 SPR 6 EMI 6 1 4 3 16 5 16 3 8 1 2 5 8 3 4 SET ER40 SPR 7 EMI 7 1 4 3 16 5 16 3 8 1 2 5 8 3 4 1 (1) EMI-Endmill cutter in inch sizes. ER COOLIT - SEALED JET EMI COLLET SETS SET ER SPR-EMI (1) Designation Collet Sizes SET ER 16 SEAL 5 EMI 5 1 8 3 16 1 4 5 16 3 8 SET ER 20 SEAL 5 EMI 5 1 8 3 16 1 4 5 16 3 8 1 2 SET ER 25 SEAL 6 EMI 6 1 8 3 16 1 4 5 16 3 81 2 5 8 SET ER 32 SEAL 6 EMI 6 3 16 1 4 5 16 3 81 2 5 8 3 4 SET ER 40 SEAL 7 EMI 7 3 16 1 4 5 16 3 81 2 5 8 3 4 1 (1) EMI-Endmill cutter in inch sizes. SET-ER SEAL-EMI JET2 Designation Collet Sizes SET ER 16 SEAL 5 EMI JET2 5 1 8 3 16 1 4 5 16 3 8 SET ER 20 SEAL 5 EMI JET2 5 1 8 3 16 1 4 5 16 3 8 1 2 SET ER 25 SEAL 6 EMI JET2 6 1 8 3 16 1 4 5 16 3 81 2 5 8 SET ER 32 SEAL 6 EMI JET2 6 3 16 1 4 5 16 3 81 2 5 8 3 4 SET ER 40 SEAL 7 EMI JET2 7 3 16 1 4 5 16 3 81 2 5 8 3 4 1 Note: When clamping a tool in the lower .012" (for clamping range (the full collapsibility range is. 40" example .323") of the the runout of the tool in the sealed collet may sometimes exceed the .0004" tolerance. In these cases a special collet of the exact size should be ordered. Ra 4uin Set Pcs 846
