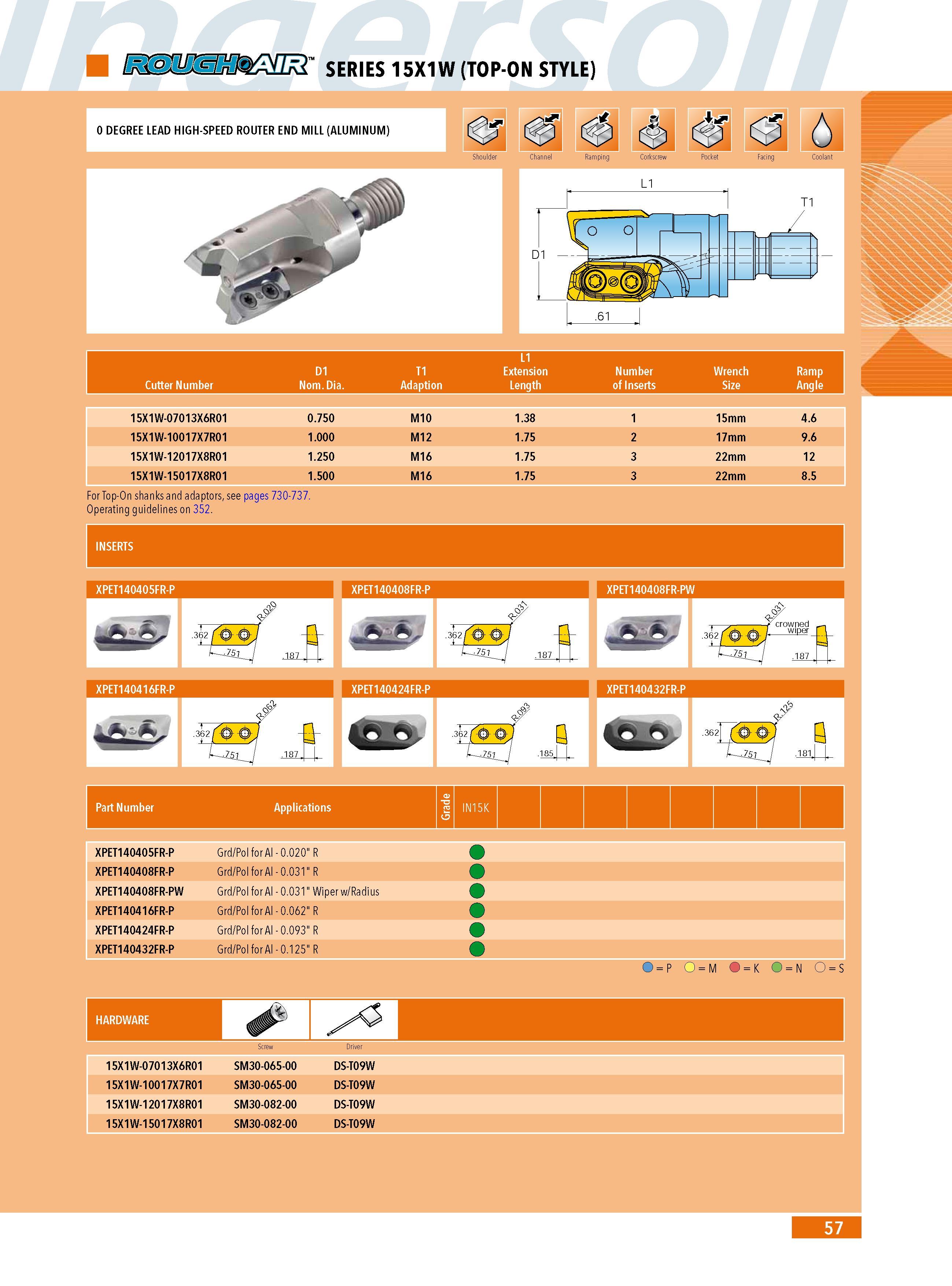

SERIES 15X1W (TOP-ON STYLE) 0 DEGREE LEAD HIGH-SPEED ROUTER END MILL (ALUMINUM) & A (m 3 6 Shoulder Channel Ramping Corkscrew Pocket Facing Coolant L1 D1 .61 For Top-On shanks and adaptors see pages 730-737. Operating guidelines on 352. T1 D1 T1 L1 Extension Number Wrench Ramp Cutter Number Nom. Dia. Adaption Length of Inserts Size Angle 15X1W-07013X6R01 0.750 M10 1.38 1 15mm 4.6 15X1W-10017X7R01 1.000 M12 1.75 2 17mm 9.6 15X1W-12017X8R01 1.250 M16 1.75 3 22mm 12 15X1W-15017X8R01 1.500 M16 1.75 3 22mm 8.5 XPET140405FR-P XPET140408FR-P XPET140408FR-PW XPET140416FR-P XPET140424FR-P XPET140432FR-P B Part Number Applications 2 IN15K XPET140405FR-P Grd Pol for Al - 0.020" R O XPET140408FR-P Grd Pol for Al - 0.031" R O XPET140408FR-PW 31 .0 0. Al for ol P rd Gr ius di a R er ip Wi XPET140416FR-P Grd Pol for Al - 0.062" R O XPET140424FR-P Grd Pol for Al - 0.093" R O XPET140432FR-P Grd Pol for Al - 0.125" R P O M O K O N O S Screw Driver 15X1W-07013X6R01 SM30-065-00 DS-T09W 15X1W-10017X7R01 SM30-065-00 DS-T09W 15X1W-12017X8R01 SM30-082-00 DS-T09W 15X1W-15017X8R01 SM30-082-00 DS-T09W 57
