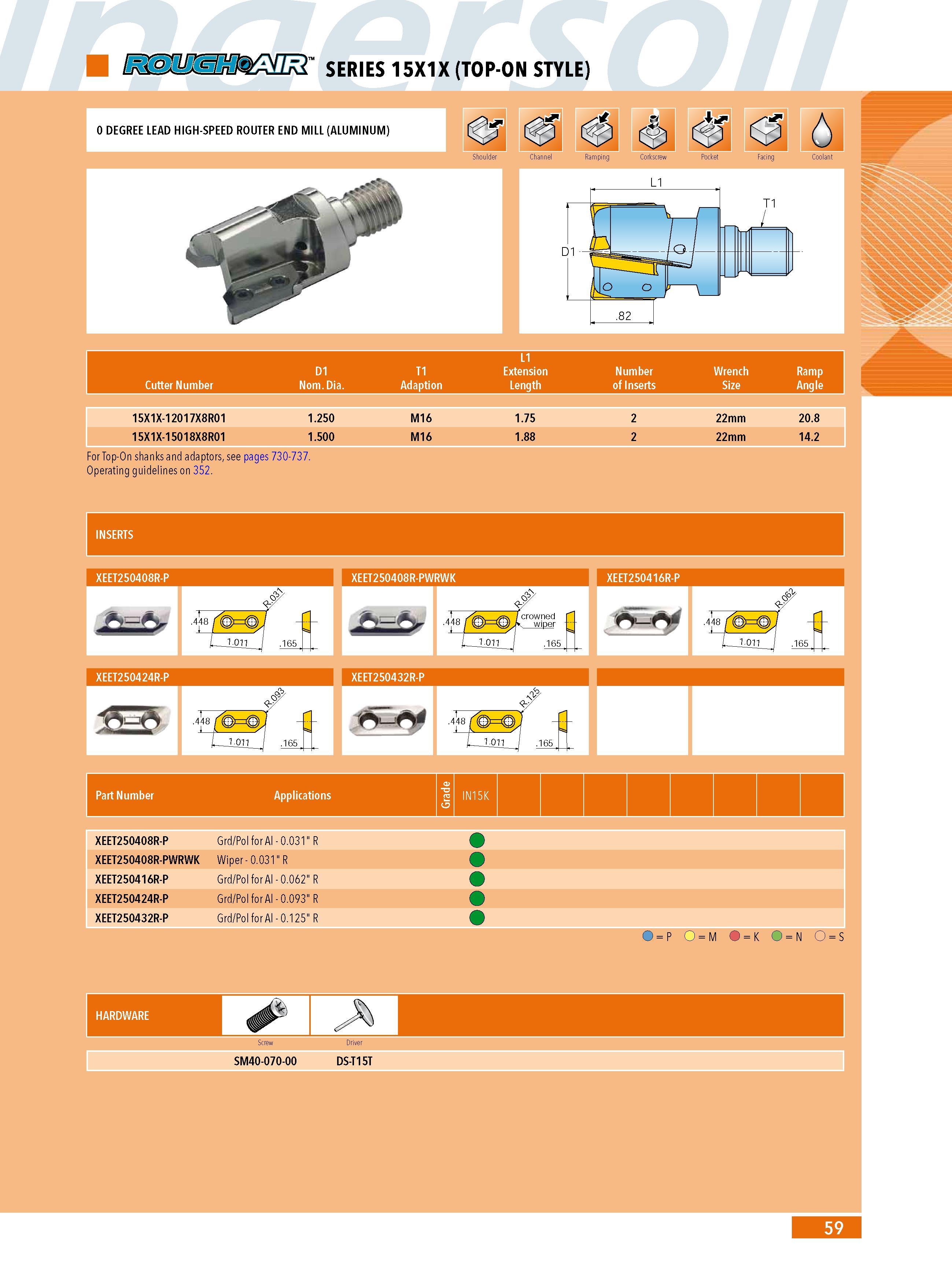

SERIES 15X1X (TOP-ON STYLE) L1 D1 0 DEGREE LEAD HIGH-SPEED ROUTER END MILL (ALUMINUM) & A (m 3 6 Shoulder Channel Ramping Corkscrew Pocket Facing Coolant For Top-On shanks and adaptors see pages 730-737. Operating guidelines on 352. D1 T1 L1 Extension Number Wrench Ramp Cutter Number Nom. Dia. Adaption Length of Inserts Size Angle 15X1X-12017X8R01 1.250 M16 1.75 2 22mm 20.8 15X1X-15018X8R01 1.500 M16 1.88 2 22mm 14.2 XEET250408R-P XEET250408R-PWRWK .44 CrWPedr fl L 1.011 1 .165 XEET250416R-P XEET250424R-P XEET250432R-P Part Number Applications e 1 IN15K G XEET250408R-P Grd Pol for Al - 0.031" R XEET250408R-PWRWK Wiper - 0.031" R XEET250416R-P Grd Pol for Al - 0.062" R XEET250424R-P Grd Pol for Al - 0.093" R XEET250432R-P Grd Pol for Al - 0.125" R O P O M O K O N O S 59
