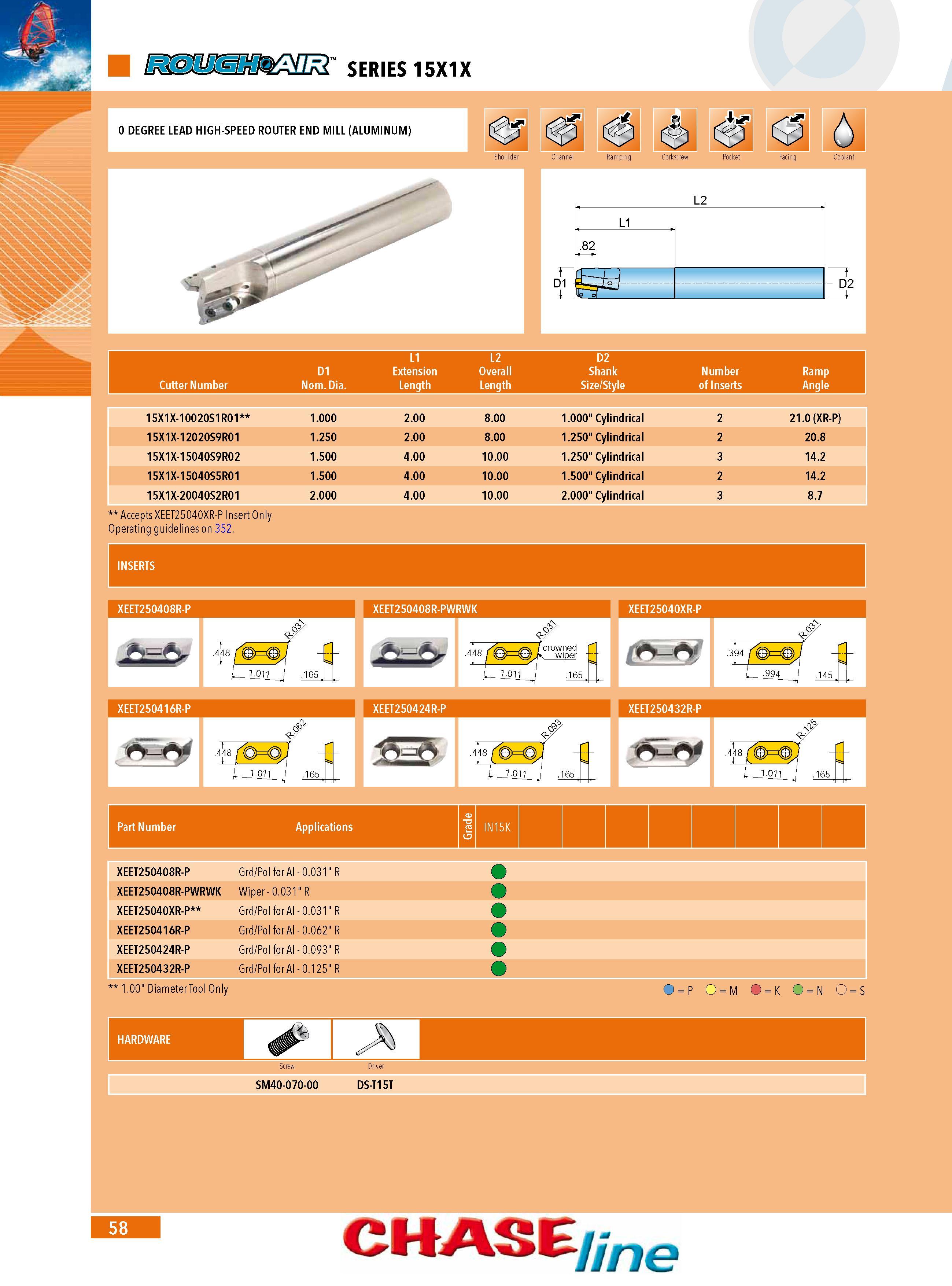

SERIES 15X1X 0 DEGREE LEAD HIGH-SPEED ROUTER END MILL (ALUMINUM) & (35 o Shoulder Channel Ramping Corkscrew Pocket Facing Coolant D1 L2 L1 .82 iNF'' f D2 L1 L2 D2 D1 Extension Overall Shank Number Ramp Cutter Number Nom. Dia. Length Length Size Style of Inserts Angle 15X1X-10020S1R01 1.000 2.00 8.00 1.000" Cylindrical 2 21.0 (XR-P) 15X1X-12020S9R01 1.250 2.00 8.00 1.250" Cylindrical 2 20.8 15X1X-15040S9R02 1.500 4.00 10.00 1.250" Cylindrical 3 14.2 15X1X-15040S5R01 1.500 4.00 10.00 1.500" Cylindrical 2 14.2 15X1X-20040S2R01 2.000 4.00 10.00 2.000" Cylindrical 3 8.7 Accepts XEET25040XR-P Insert Only Operating guidelines on 352. INSERTS e d Part Number Applications IN15K Gr 1.00" Diameter Tool Only O P O M O K O N O S HARDWARE Screw Driver SM40-070-00 DS-T15T 58 CH VSE7e
