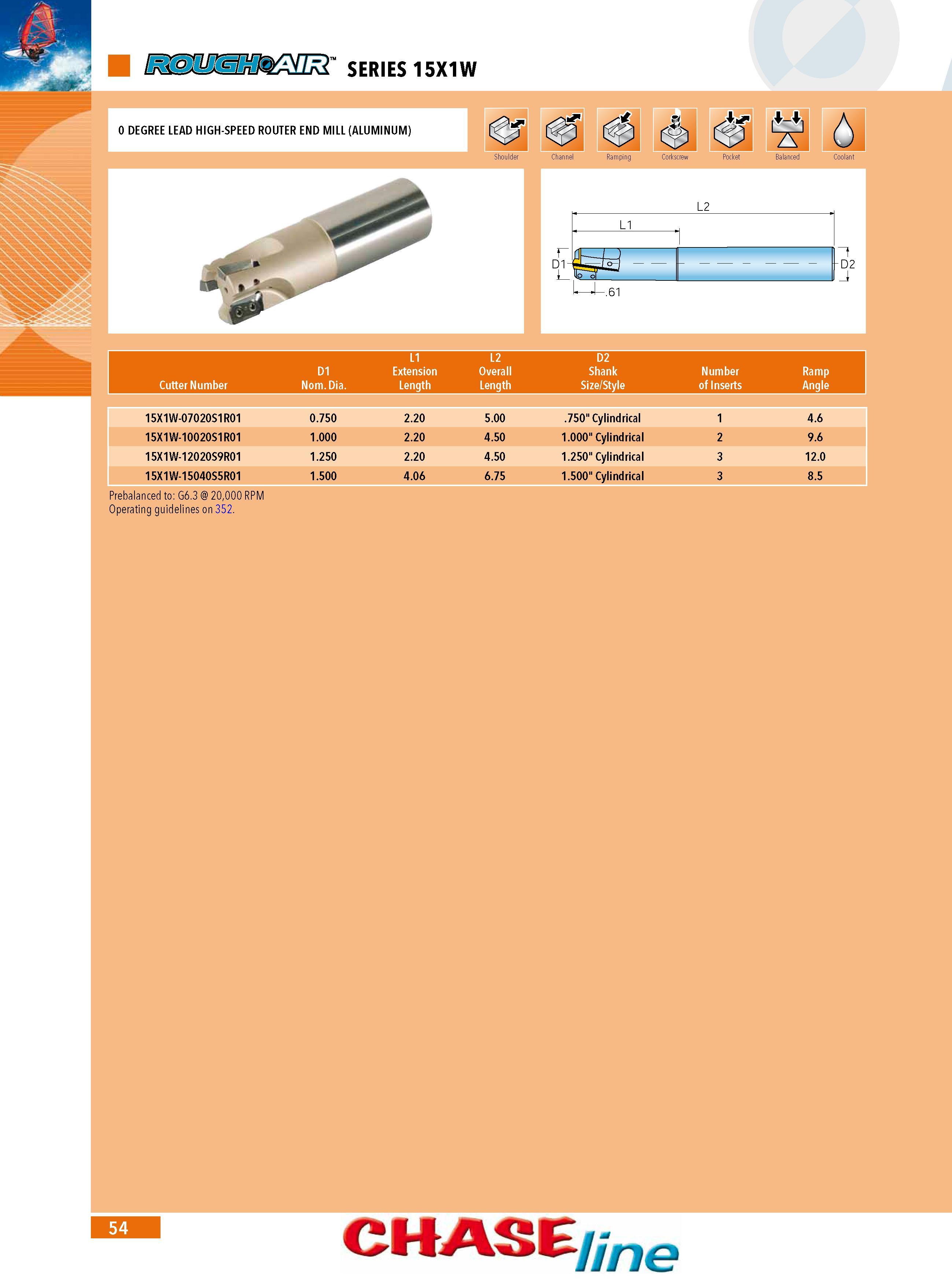

SERIES 15X1W 0 DEGREE LEAD HIGH-SPEED ROUTER END MILL (ALUMINUM) I % D1 61 Shoulder Channel Ramping Corkscrew Pocket Balanced Coolant L1 1- T D2 J L1 L2 D2 D1 Extension Overall Shank Number Ramp Cutter Number Nom. Dia. Length Length Size Style of Inserts Angle 15X1W-07020S1R01 0.750 2.20 5.00 .750" Cylindrical 1 4.6 15X1W-10020S1R01 1.000 2.20 4.50 1.000" Cylindrical 2 9.6 15X1W-12020S9R01 1.250 2.20 4.50 1.250" Cylindrical 3 12.0 15X1W-15040S5R01 1.500 4.06 6.75 1.500" Cylindrical 3 8.5 Prebalanced to: G6.3 20000 RPM Operating guidelines on 352. 54 CHASE ne
