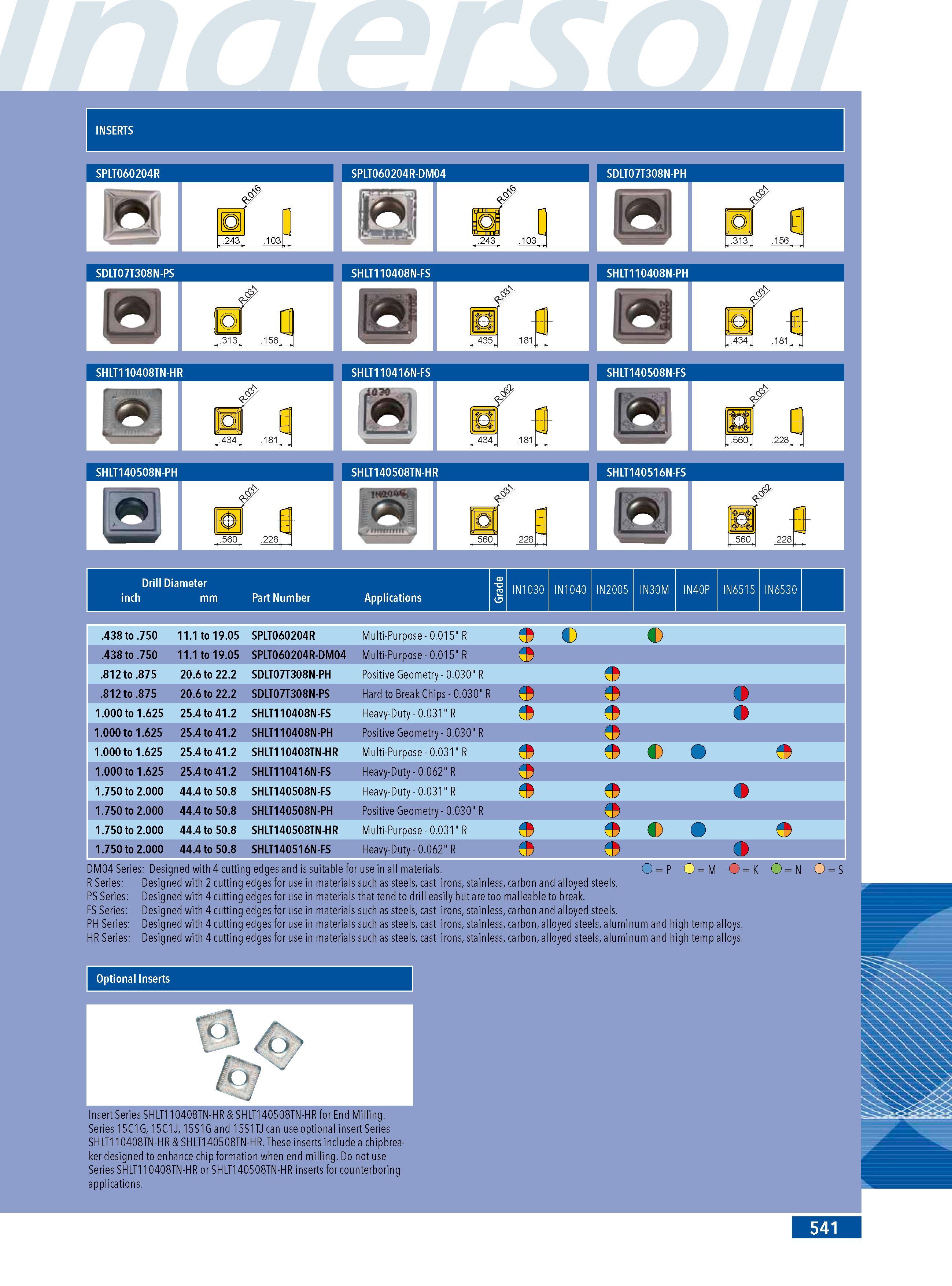

SPLT060204R .103 SPLT060204R-DM04 .103 SDLT07T308N-PH SDLT07T308N-PS SHLT110408N-FS SHLT110408N-PH SHLT110408TN-HR Q .434 SHLT110416N-FS SHLT140508N-FS SHLT140508N-PH 560 .2281 SHLT140508TN-HR SHLT140516N-FS .228JJ Drill Diameter inch mm Part Number Applications .438 to .750 11.1 to 19.05 SPLT060204R Multi-Purpose - 0.015 R .438 to .750 11.1 to 19.05 SPLT060204R-DM04 Multi-Purpose - 0.015 R .812 to .875 20.6 to 22.2 SDLT07T308N-PH Positive Geometry - 0.030 R .812 to .875 20.6 to 22.2 SDLT07T308N-PS Hard to Break Chips - 0.030 R Cl 1.000 to 1.625 25.4 to 41.2 SHLT110408N-FS Heavy-Duty - 0.031 R 1.000 to 1.625 25.4 to 41.2 SHLT110408N-PH Positive Geometry - 0.030 R 1.000 to 1.625 25.4 to 41.2 SHLT110408TN-HR Multi-Purpose - 0.031 R 1.000 to 1.625 25.4 to 41.2 SHLT110416N-FS Heavy-Duty - 0.062 R 1.750 to 2.000 44.4 to 50.8 SHLT140508N-FS Heavy-Duty - 0.031 R 1.750 to 2.000 44.4 to 50.8 SHLT140508N-PH Positive Geometry - 0.030 R 1.750 to 2.000 44.4 to 50.8 SHLT140508TN-HR Multi-Purpose - 0.031 R C 1.750 to 2.000 44.4 to 50.8 SHLT140516N-FS Heavy-Duty - 0.062 R Cl DM04 Series: Designed with 4 cutting edges and is suitable for use in all materials. R Series: Designed with 2 cutting edges for use in materials such as steels cast irons stainless carbon and alloyed steels. PS Series: Designed with 4 cutting edges for use in materials that tend to drill easily but are too malleable to break. FS Series: Designed with 4 cutting edges for use in materials such as steels cast irons stainless carbon and alloyed steels. PH Series: Designed with 4 cutting edges for use in materials such as steels cast irons stainless carbon alloyed steels aluminum and high temp alloys HR Series: Designed with 4 cutting edges for use in materials such as steels cast irons stainless carbon alloyed steels aluminum and high temp alloys O P O M O K O N O S Optional Inserts Insert Series SHLT1 10408TN-HR & SHLT140508TN-HR for End Milling. Series 15C1G 15C1J 15S1G and 15S1TJ can use optional insert Series SHLT110408TN-HR & SHLT140508TN-HR. These inserts include a chipbrea-ker designed to enhance chip formation when end milling. Do not use Series SHLT110408TN-HR or SHLT140508TN-HR inserts for counterboring applications. 541
