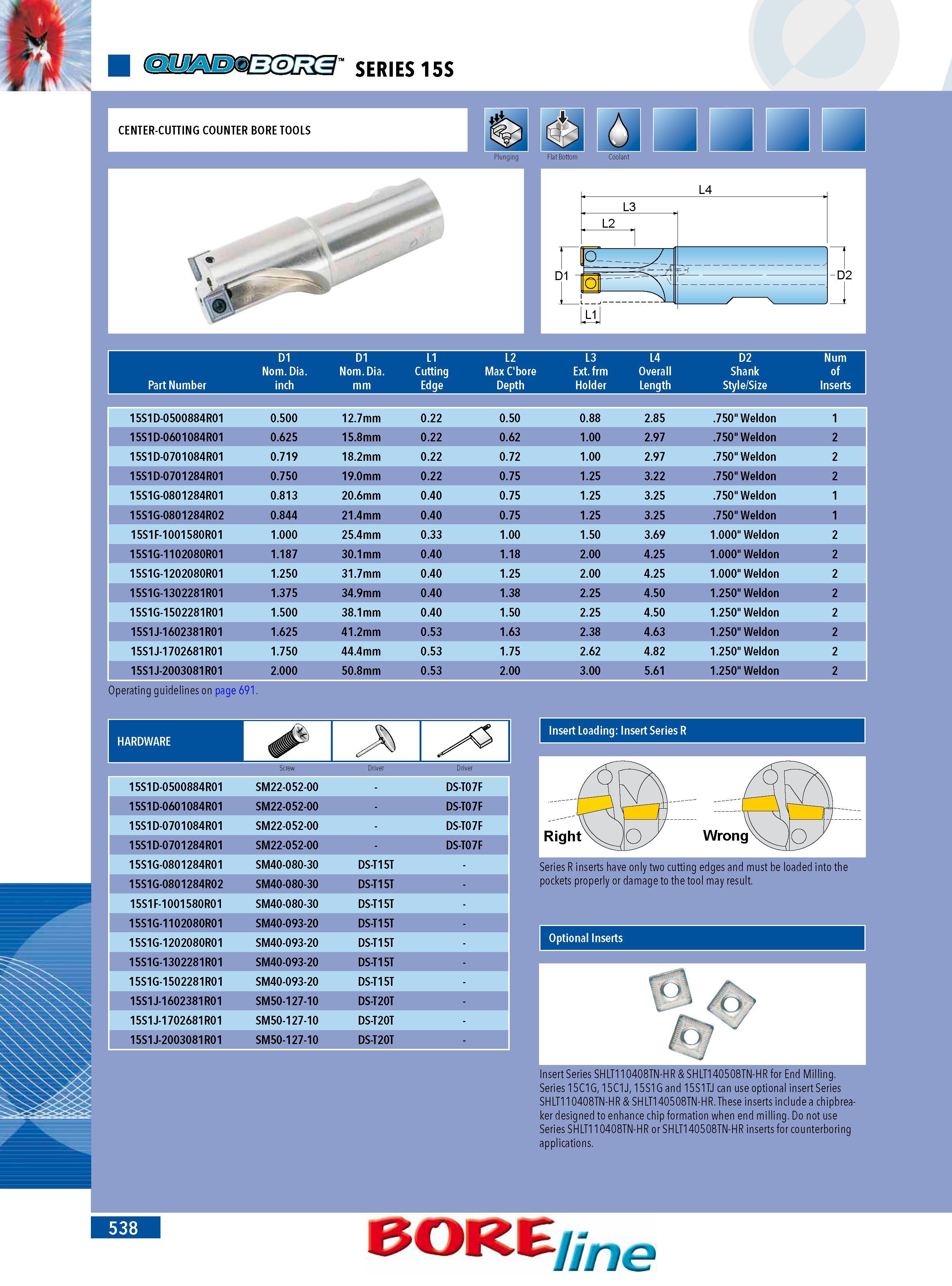

536 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.538

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 538 0536 Lab2u

series 15S L3 L2 -T I' P D2 Part Number D1 Nom. Dia. inch D1 Nom. Dia. mm L1 Cutting Edge L2 Max C'bore Depth L3 Ext. frm Holder L4 Overall Length D2 Shank Style Size Num of Inserts 15S1D-0500884R01 0.500 12.7mm 0.22 0.50 0.88 2.85 .750" Weldon 1 15S1D-0601084R01 0.625 15.8mm 0.22 0.62 1.00 2.97 .750" Weldon 2 15S1D-0701084R01 0.719 18.2mm 0.22 0.72 1.00 2.97 .750" Weldon 2 15S1D-0701284R01 0.750 19.0mm 0.22 0.75 1.25 3.22 .750" Weldon 2 15S1G-0801284R01 0.813 20.6mm 0.40 0.75 1.25 3.25 .750" Weldon 1 15S1G-0801284R02 0.844 21.4mm 0.40 0.75 1.25 3.25 .750" Weldon 1 15S1F-1001580R01 1.000 25.4mm 0.33 1.00 1.50 3.69 1.000" Weldon 2 15S1G-1102080R01 1.187 30.1mm 0.40 1.18 2.00 4.25 1.000" Weldon 2 15S1G-1202080R01 1.250 31.7mm 0.40 1.25 2.00 4.25 1.000" Weldon 2 15S1G-1302281R01 1.375 34.9mm 0.40 1.38 2.25 4.50 1.250" Weldon 2 15S1G-1502281R01 1.500 38.1mm 0.40 1.50 2.25 4.50 1.250" Weldon 2 15S1J-1602381R01 1.625 41.2mm 0.53 1.63 2.38 4.63 1.250" Weldon 2 15S1J-1702681R01 1.750 44.4mm 0.53 1.75 2.62 4.82 1.250" Weldon 2 15S1J-2003081R01 2.000 50.8mm 0.53 2.00 3.00 5.61 1.250" Weldon 2 Operating guidelines on page 691. HARDWARE 5 Screw Driver Driver 15S1D-0500884R01 SM22-052-00 DS-T07F 15S1D-0601084R01 SM22-052-00 DS-T07F 15S1D-0701084R01 SM22-052-00 DS-T07F 15S1D-0701284R01 SM22-052-00 DS-T07F 15S1G-0801284R01 SM40-080-30 DS-T15T 15S1G-0801284R02 SM40-080-30 DS-T15T 15S1F-1001580R01 SM40-080-30 DS-T15T 15S1G-1102080R01 SM40-093-20 DS-T15T 15S1G-1202080R01 SM40-093-20 DS-T15T 15S1G-1302281R01 SM40-093-20 DS-T15T 15S1G-1502281R01 SM40-093-20 DS-T15T 15S1J-1602381R01 SM50-127-10 DS-T20T 15S1J-1702681R01 SM50-127-10 DS-T20T 15S1J-2003081R01 SM50-127-10 DS-T20T Insert Loading: Insert Series R Right by Wrong v Series R inserts have only two cutting edges and must be loaded into the pockets properly or damage to the tool may result. Optional Inserts Insert Series SHLT110408TN-HR & SHLT140508TN-HR for End Milling. Series 15C1G 15C1J 15S1G and 15S1TJ can use optional insert Series SHLT110408TN-HR & SHLT140508TN-HR. These inserts include a chipbrea-ker designed to enhance chip formation when end milling. Do not use Series SHLT110408TN-HR or SHLT140508TN-HR inserts for counterboring applications. 538
