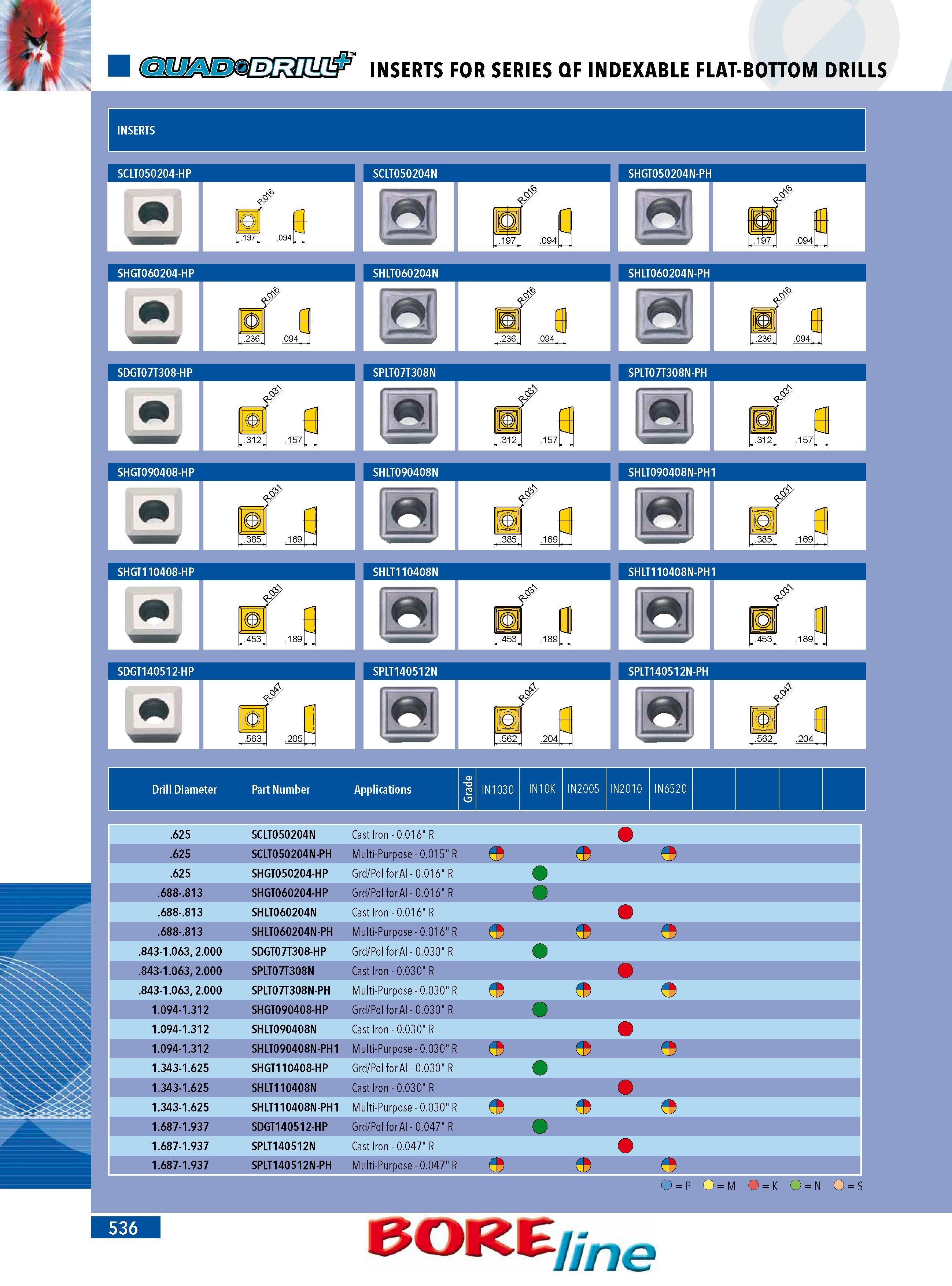

INSERTS FOR SERIES QF INDEXABLE FLAT-BOTTOM DRILLS SCLT050204-HP 9 .197 .094 SCLT050204N Si SHGT050204N-PH SL ffl 197 .094 SHGT060204-HP SHLT060204N a SHLT060204N-PH a SDGT07T308-HP SPLT07T308N a SPLT07T308N-PH SHGT090408-HP H SHLT090408N a SHLT090408N-PH1 a SHGT110408-HP H SHLT110408N & a SHLT110408N-PH1 a SDGT140512-HP SPLT140512N a SPLT140512N-PH 562 .204 Drill Diameter Part Number Applications IN1030 IN10K IN200 IN6520 .625 SCLT050204N Cast Iron - 0.016 R .625 SCLT050204N-PH Multi-Purpose - 0.015 R .625 SHGT050204-HP Grd Pol for Al - 0.016 R .688-.813 SHGT060204-HP Grd Pol for Al - 0.016 R o .688-.813 SHLT060204N Cast Iron - 0.016 R .688-.813 SHLT060204N-PH Multi-Purpose - 0.016 R .843-1.063 2.000 SDGT07T308-HP Grd Pol for Al - 0.030 R .843-1.063 2.000 SPLT07T308N Cast Iron - 0.030 R .843-1.063 2.000 SPLT07T308N-PH Multi-Purpose - 0.030 R 1.094-1.312 SHGT090408-HP Grd Pol for Al - 0.030 R o 1.094-1.312 SHLT090408N Cast Iron - 0.030 R 1.094-1.312 SHLT090408N-PH1 Multi-Purpose - 0.030 R 1.343-1.625 SHGT110408-HP Grd Pol for Al - 0.030 R 1.343-1.625 SHLT110408N Cast Iron - 0.030 R 1.343-1.625 SHLT110408N-PH1 Multi-Purpose - 0.030 R 1.687-1.937 SDGT140512-HP Grd Pol for Al - 0.047 R o 1.687-1.937 SPLT140512N Cast Iron - 0.047 R 1.687-1.937 SPLT140512N-PH Multi-Purpose - 0.047 R O P O M O K O N O S
