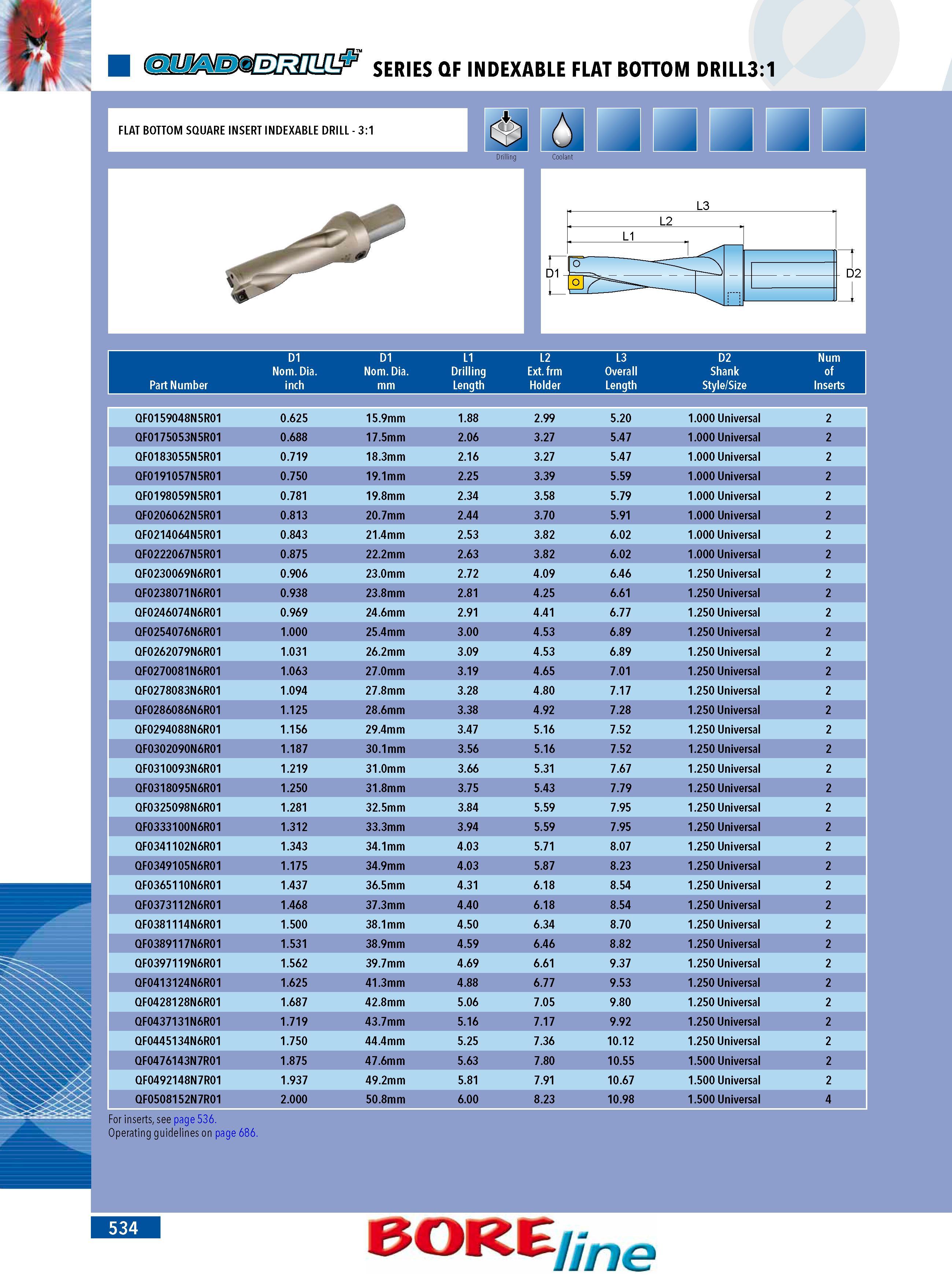

SERIES QF INDEXABLE FLAT BOTTOM DRILL3:1 FLAT BOTTOM SQUARE INSERT INDEXABLE DRILL - 3:1 Drilling Coolant L1 L3 L2 D2 Part Number D1 Nom. Dia. inch D1 Nom. Dia. mm L1 Drilling Length L2 Ext. frm Holder L3 Overall Length D2 Shank Style Size Num of Inserts QF0159048N5R01 0.625 15.9mm 1.88 2.99 5.20 1.000 Universal 2 QF0175053N5R01 0.688 17.5mm 2.06 3.27 5.47 1.000 Universal 2 QF0183055N5R01 0.719 18.3mm 2.16 3.27 5.47 1.000 Universal 2 QF0191057N5R01 0.750 19.1mm 2.25 3.39 5.59 1.000 Universal 2 QF0198059N5R01 0.781 19.8mm 2.34 3.58 5.79 1.000 Universal 2 QF0206062N5R01 0.813 20.7mm 2.44 3.70 5.91 1.000 Universal 2 QF0214064N5R01 0.843 21.4mm 2.53 3.82 6.02 1.000 Universal 2 QF0222067N5R01 0.875 22.2mm 2.63 3.82 6.02 1.000 Universal 2 QF0230069N6R01 0.906 23.0mm 2.72 4.09 6.46 1.250 Universal 2 QF0238071N6R01 0.938 23.8mm 2.81 4.25 6.61 1.250 Universal 2 QF0246074N6R01 0.969 24.6mm 2.91 4.41 6.77 1.250 Universal 2 QF0254076N6R01 1.000 25.4mm 3.00 4.53 6.89 1.250 Universal 2 QF0262079N6R01 1.031 26.2mm 3.09 4.53 6.89 1.250 Universal 2 QF0270081N6R01 1.063 27.0mm 3.19 4.65 7.01 1.250 Universal 2 QF0278083N6R01 1.094 27.8mm 3.28 4.80 7.17 1.250 Universal 2 QF0286086N6R01 1.125 28.6mm 3.38 4.92 7.28 1.250 Universal 2 QF0294088N6R01 1.156 29.4mm 3.47 5.16 7.52 1.250 Universal 2 QF0302090N6R01 1.187 30.1mm 3.56 5.16 7.52 1.250 Universal 2 QF0310093N6R01 1.219 31.0mm 3.66 5.31 7.67 1.250 Universal 2 QF0318095N6R01 1.250 31.8mm 3.75 5.43 7.79 1.250 Universal 2 QF0325098N6R01 1.281 32.5mm 3.84 5.59 7.95 1.250 Universal 2 QF0333100N6R01 1.312 33.3mm 3.94 5.59 7.95 1.250 Universal 2 QF0341102N6R01 1.343 34.1mm 4.03 5.71 8.07 1.250 Universal 2 QF0349105N6R01 1.175 34.9mm 4.03 5.87 8.23 1.250 Universal 2 QF0365110N6R01 1.437 36.5mm 4.31 6.18 8.54 1.250 Universal 2 QF0373112N6R01 1.468 37.3mm 4.40 6.18 8.54 1.250 Universal 2 QF0381114N6R01 1.500 38.1mm 4.50 6.34 8.70 1.250 Universal 2 QF0389117N6R01 1.531 38.9mm 4.59 6.46 8.82 1.250 Universal 2 QF0397119N6R01 1.562 39.7mm 4.69 6.61 9.37 1.250 Universal 2 QF0413124N6R01 1.625 41.3mm 4.88 6.77 9.53 1.250 Universal 2 QF0428128N6R01 1.687 42.8mm 5.06 7.05 9.80 1.250 Universal 2 QF0437131N6R01 1.719 43.7mm 5.16 7.17 9.92 1.250 Universal 2 QF0445134N6R01 1.750 44.4mm 5.25 7.36 10.12 1.250 Universal 2 QF0476143N7R01 1.875 47.6mm 5.63 7.80 10.55 1.500 Universal 2 QF0492148N7R01 1.937 49.2mm 5.81 7.91 10.67 1.500 Universal 2 QF0508152N7R01 2.000 50.8mm 6.00 8.23 10.98 1.500 Universal 4 For inserts see page 536. Operating guidelines on page 6 534
