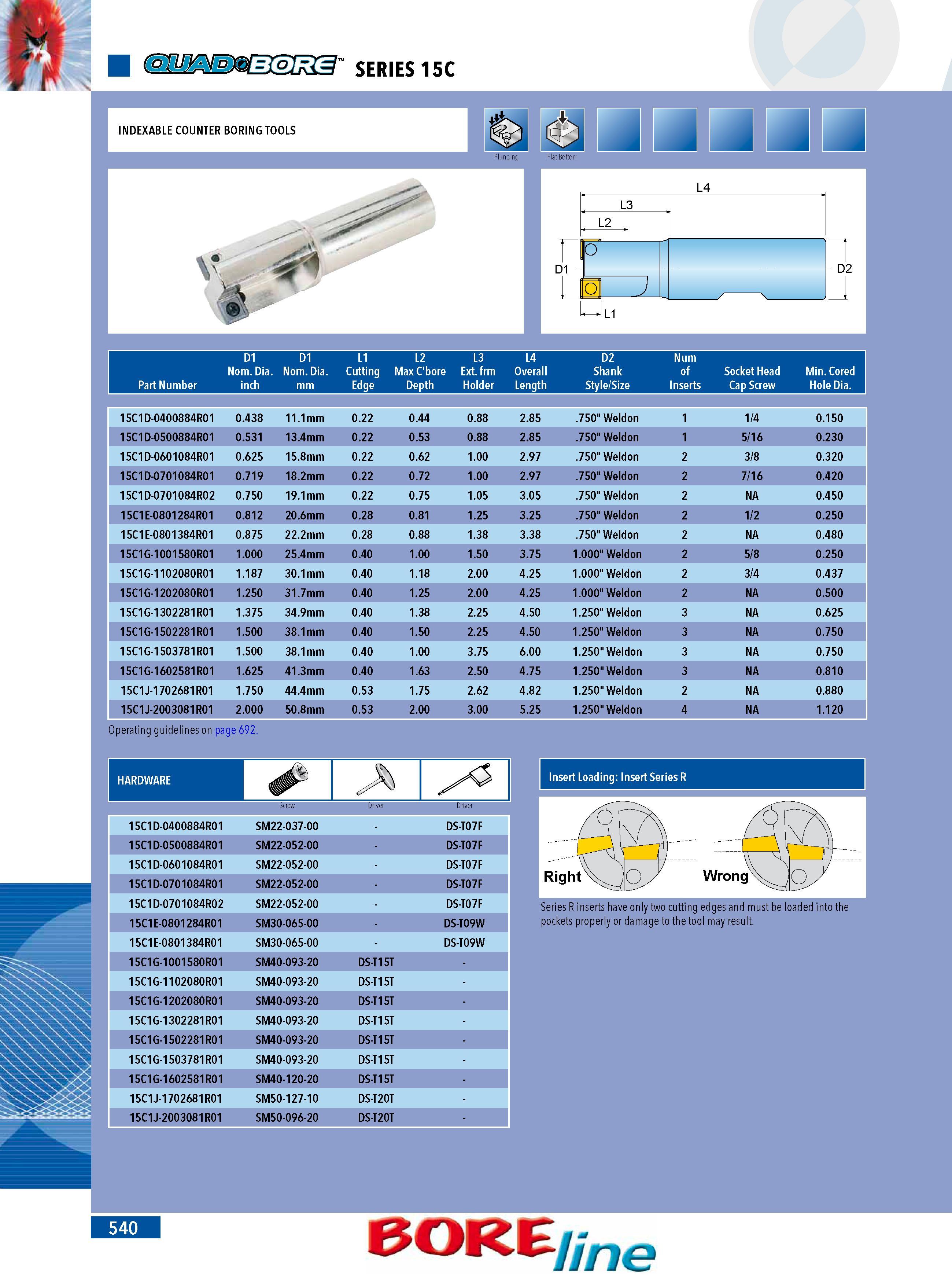

SERIES 15C INDEXABLE COUNTER BORING TOOLS Plunging Flat Bottom L3 L2 D1 J L1 L4 D2 Part Number D1 Nom. Dia. inch D1 Nom. Dia. mm L1 Cutting Edge L2 Max C'bore Depth L3 Ext. frm Holder L4 Overall Length D2 Shank Style Size Num of Inserts Socket Head Cap Screw Min. Cored Hole Dia. 15C1D-0400884R01 0.438 11.1mm 0.22 0.44 0.88 2.85 .750" Weldon 1 1 4 0.150 15C1D-0500884R01 0.531 13.4mm 0.22 0.53 0.88 2.85 .750" Weldon 1 5 16 0.230 15C1D-0601084R01 0.625 15.8mm 0.22 0.62 1.00 2.97 .750" Weldon 2 3 8 0.320 15C1D-0701084R01 0.719 18.2mm 0.22 0.72 1.00 2.97 .750" Weldon 2 7 16 0.420 15C1D-0701084R02 0.750 19.1mm 0.22 0.75 1.05 3.05 .750" Weldon 2 NA 0.450 15C1E-0801284R01 0.812 20.6mm 0.28 0.81 1.25 3.25 .750" Weldon 2 1 2 0.250 15C1E-0801384R01 0.875 22.2mm 0.28 0.88 1.38 3.38 .750" Weldon 2 NA 0.480 15C1G-1001580R01 1.000 25.4mm 0.40 1.00 1.50 3.75 1.000" Weldon 2 5 8 0.250 15C1G-1102080R01 1.187 30.1mm 0.40 1.18 2.00 4.25 1.000" Weldon 2 3 4 0.437 15C1G-1202080R01 1.250 31.7mm 0.40 1.25 2.00 4.25 1.000" Weldon 2 NA 0.500 15C1G-1302281R01 1.375 34.9mm 0.40 1.38 2.25 4.50 1.250" Weldon 3 NA 0.625 15C1G-1502281R01 1.500 38.1mm 0.40 1.50 2.25 4.50 1.250" Weldon 3 NA 0.750 15C1G-1503781R01 1.500 38.1mm 0.40 1.00 3.75 6.00 1.250" Weldon 3 NA 0.750 15C1G-1602581R01 1.625 41.3mm 0.40 1.63 2.50 4.75 1.250" Weldon 3 NA 0.810 15C1J-1702681R01 1.750 44.4mm 0.53 1.75 2.62 4.82 1.250" Weldon 2 NA 0.880 15C1J-2003081R01 2.000 50.8mm 0.53 2.00 3.00 5.25 1.250" Weldon 4 NA 1.120 Operating guidelines on page 692. HARDWARE A 5 Screw Driver Dnver 15C1D-0400884R01 SM22-037-00 DS-T07F 15C1D-0500884R01 SM22-052-00 DS-T07F 15C1D-0601084R01 SM22-052-00 DS-T07F 15C1D-0701084R01 SM22-052-00 DS-T07F 15C1D-0701084R02 SM22-052-00 DS-T07F 15C1E-0801284R01 SM30-065-00 DS-T09W 15C1E-0801384R01 SM30-065-00 DS-T09W 15C1G-1001580R01 SM40-093-20 DS-T15T 15C1G-1102080R01 SM40-093-20 DS-T15T 15C1G-1202080R01 SM40-093-20 DS-T15T 15C1G-1302281R01 SM40-093-20 DS-T15T 15C1G-1502281R01 SM40-093-20 DS-T15T 15C1G-1503781R01 SM40-093-20 DS-T15T 15C1G-1602581R01 SM40-120-20 DS-T15T 15C1J-1702681R01 SM50-127-10 DS-T20T 15C1J-2003081R01 SM50-096-20 DS-T20T Insert Loading: Insert Series R 3 Right v Oy Wrong joy Series R inserts have only two cutting edges and must be loaded into the pockets properly or damage to the tool may result. 540
