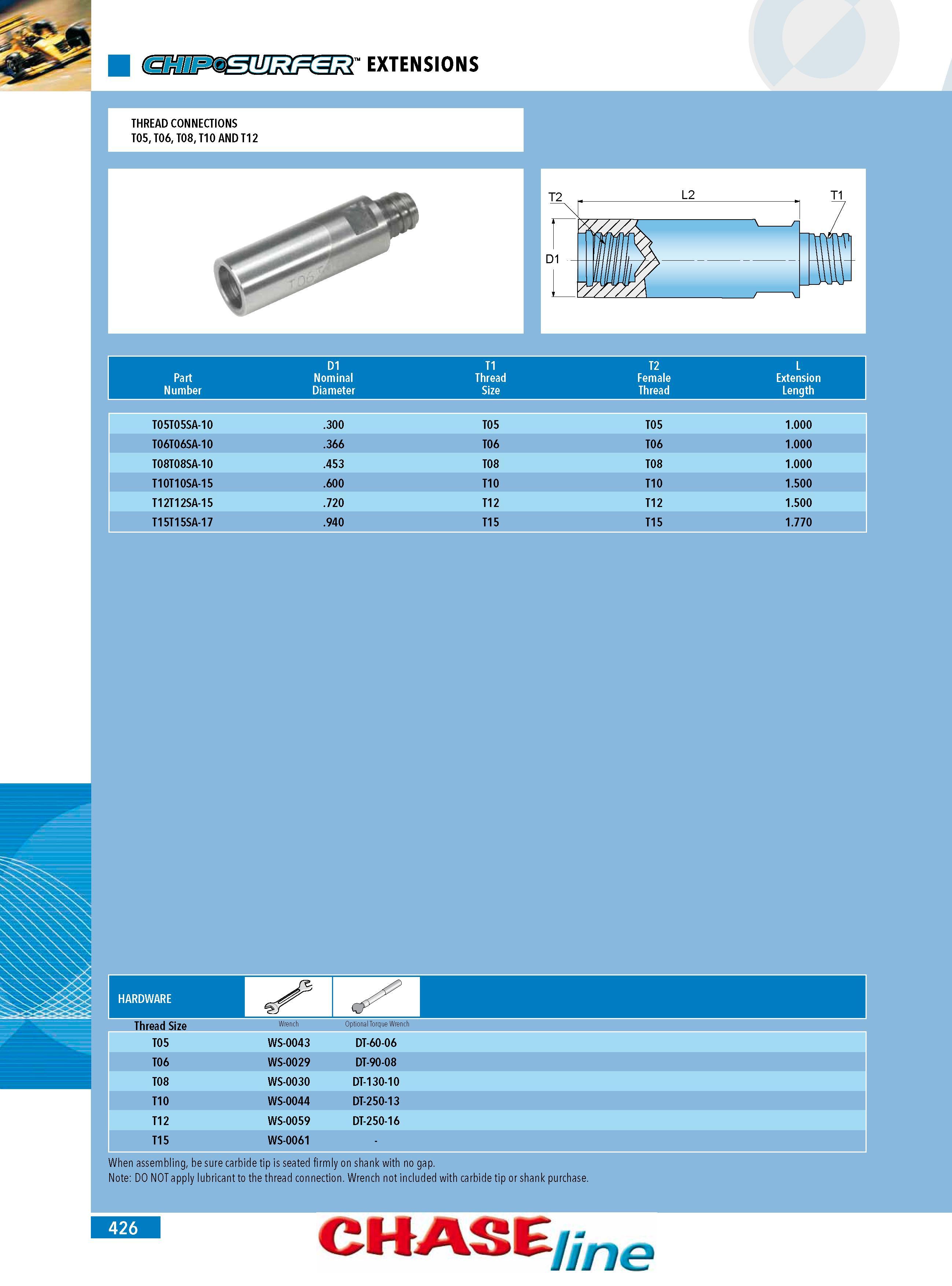

THREAD CONNECTIONS T05 T06 T08 T10 ANDT12 D1 T1 T2 L Part Nominal Thread Female Extension Number Diameter Size Thread Length T05T05SA-10 .300 T05 T05 1.000 T06T06SA-10 .366 T06 T06 1.000 T08T08SA-10 .453 T08 T08 1.000 T10T10SA-15 .600 T10 T10 1.500 T12T12SA-15 .720 T12 T12 1.500 T15T15SA-17 .940 T15 T15 1.770 Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 T15 WS-0061 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. 426 CHASE ne
