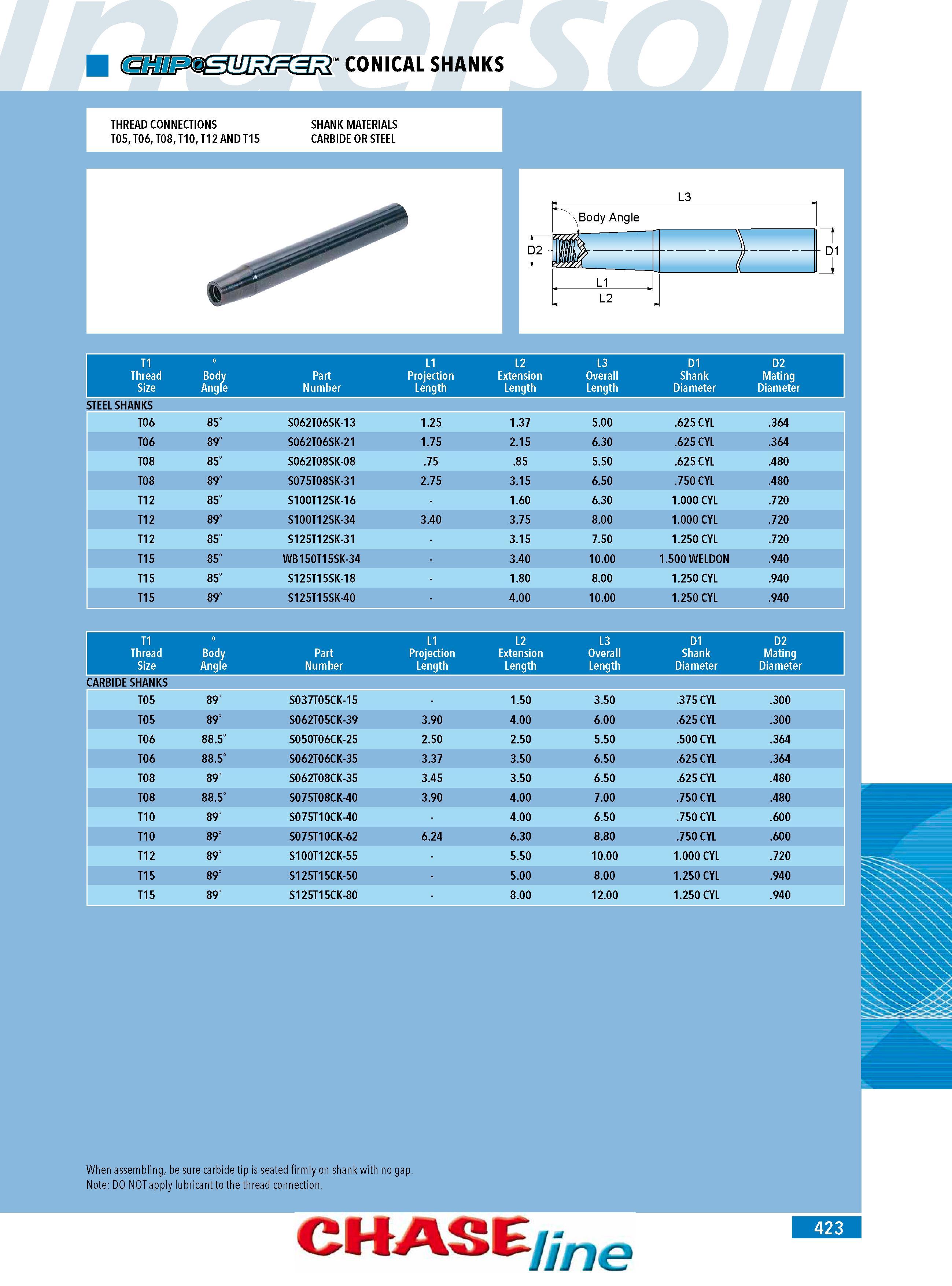

CONICAL SHANKS THREAD CONNECTIONS SHANK MATERIALS T05 T06 T08 T10 T12ANDT15 CARBIDE OR STEEL T1 L1 L2 L3 D1 D2 Thread Body Part Projection Extension Overall Shank Mating Size Angle Number Length Length Length Diameter Diameter STEEL SHANKS T06 85 S062T06SK-13 1.25 1.37 5.00 .625 CYL .364 T06 89 S062T06SK-21 1.75 2.15 6.30 .625 CYL .364 T08 85 S062T08SK-08 .75 .85 5.50 .625 CYL .480 T08 89 S075T08SK-31 2.75 3.15 6.50 .750 CYL .480 T12 85 S100T12SK-16 1.60 6.30 1.000 CYL .720 T12 89 S100T12SK-34 3.40 3.75 8.00 1.000 CYL .720 T12 85 S125T12SK-31 3.15 7.50 1.250 CYL .720 T15 85 WB150T15SK-34 3.40 10.00 1.500 WELDON .940 T15 85 S125T15SK-18 1.80 8.00 1.250 CYL .940 T15 89 S125T15SK-40 4.00 10.00 1.250 CYL .940 T1 L1 L2 L3 D1 D2 Thread Body Part Projection Extension Overall Shank Mating Size Angle Number Length Length Length Diameter Diameter SHANKS T05 89 S037T05CK-15 1.50 3.50 .375 CYL .300 T05 89 S062T05CK-39 3.90 4.00 6.00 .625 CYL .300 T06 88.5 S050T06CK-25 2.50 2.50 5.50 .500 CYL .364 T06 88.5 S062T06CK-35 3.37 3.50 6.50 .625 CYL .364 T08 89 S062T08CK-35 3.45 3.50 6.50 .625 CYL .480 T08 88.5 S075T08CK-40 3.90 4.00 7.00 .750 CYL .480 T10 89 S075T10CK-40 4.00 6.50 .750 CYL .600 T10 89 S075T10CK-62 6.24 6.30 8.80 .750 CYL .600 T12 89 S100T12CK-55 5.50 10.00 1.000 CYL .720 T15 89 S125T15CK-50 5.00 8.00 1.250 CYL .940 T15 89 S125T15CK-80 8.00 12.00 1.250 CYL .940 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. CHASE me 423
