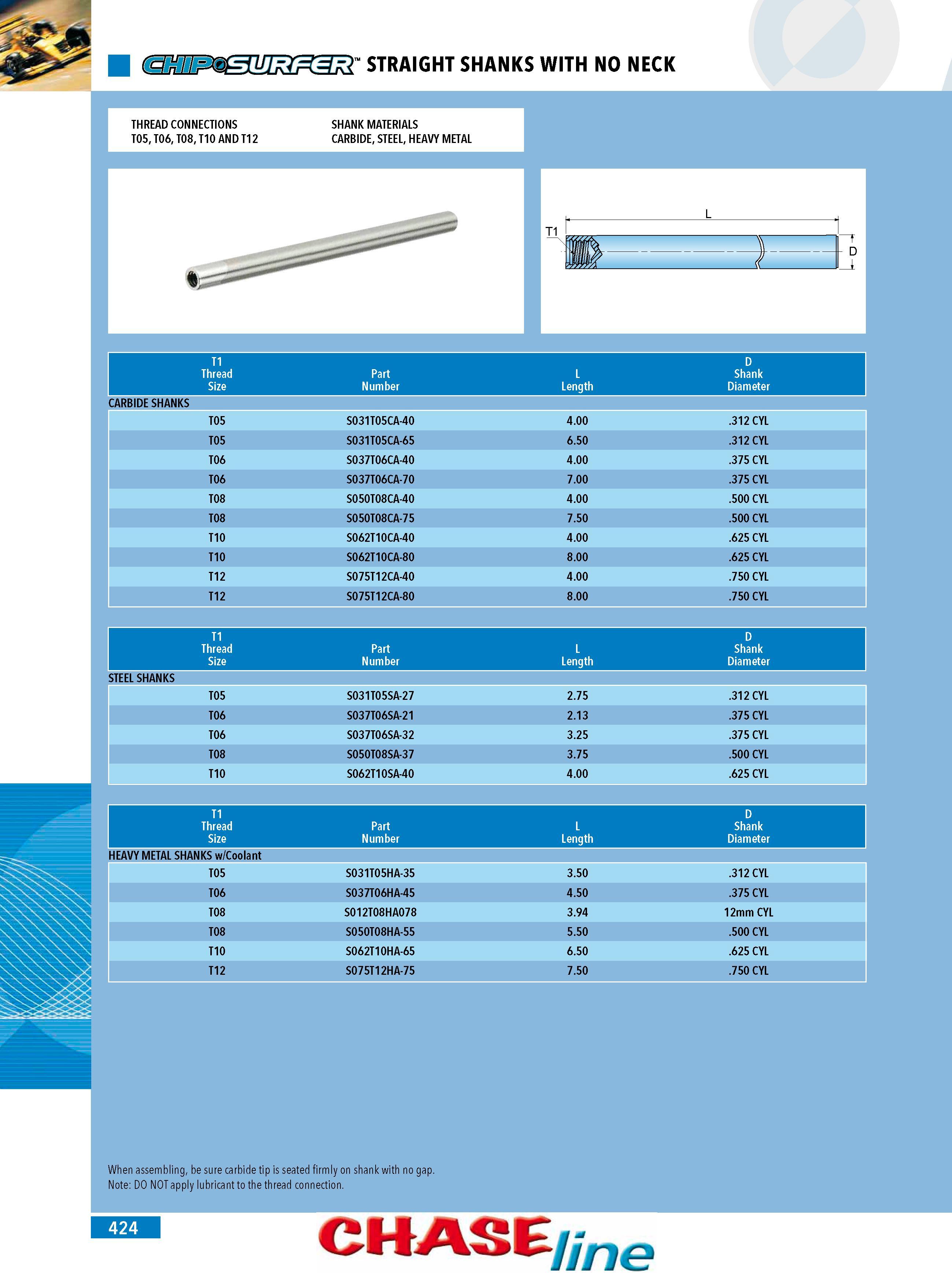

STRAIGHT SHANKS WITH NO NECK THREAD CONNECTIONS SHANK MATERIALS T05 T06 T08 T10 AND T12 CARBIDE STEEL HEAVY METAL T1 D Thread Part L Shank Size Number Length Diameter CARBIDE SHANKS T05 S031T05CA-40 4.00 .312 CYL T05 S031T05CA-65 6.50 .312 CYL T06 S037T06CA-40 4.00 .375 CYL T06 S037T06CA-70 7.00 .375 CYL T08 S050T08CA-40 4.00 .500 CYL T08 S050T08CA-75 7.50 .500 CYL T10 S062T10CA-40 4.00 .625 CYL T10 S062T10CA-80 8.00 .625 CYL T12 S075T12CA-40 4.00 .750 CYL T12 S075T12CA-80 8.00 .750 CYL T1 D Thread Part L Shank Size Number Length Diameter STEEL SHANKS T05 S031T05SA-27 2.75 .312 CYL T06 S037T06SA-21 2.13 .375 CYL T06 S037T06SA-32 3.25 .375 CYL T08 S050T08SA-37 3.75 .500 CYL T10 S062T10SA-40 4.00 .625 CYL HEAVY METAL SHANKS w Coolant T1 D Thread Part L Shank Size Number Length Diameter T05 S031T05HA-35 3.50 .312 CYL T06 S037T06HA-45 4.50 .375 CYL T08 S012T08HA078 3.94 12mm CYL T08 S050T08HA-55 5.50 .500 CYL T10 S062T10HA-65 6.50 .625 CYL T12 S075T12HA-75 7.50 .750 CYL When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. CHASE ne 424
