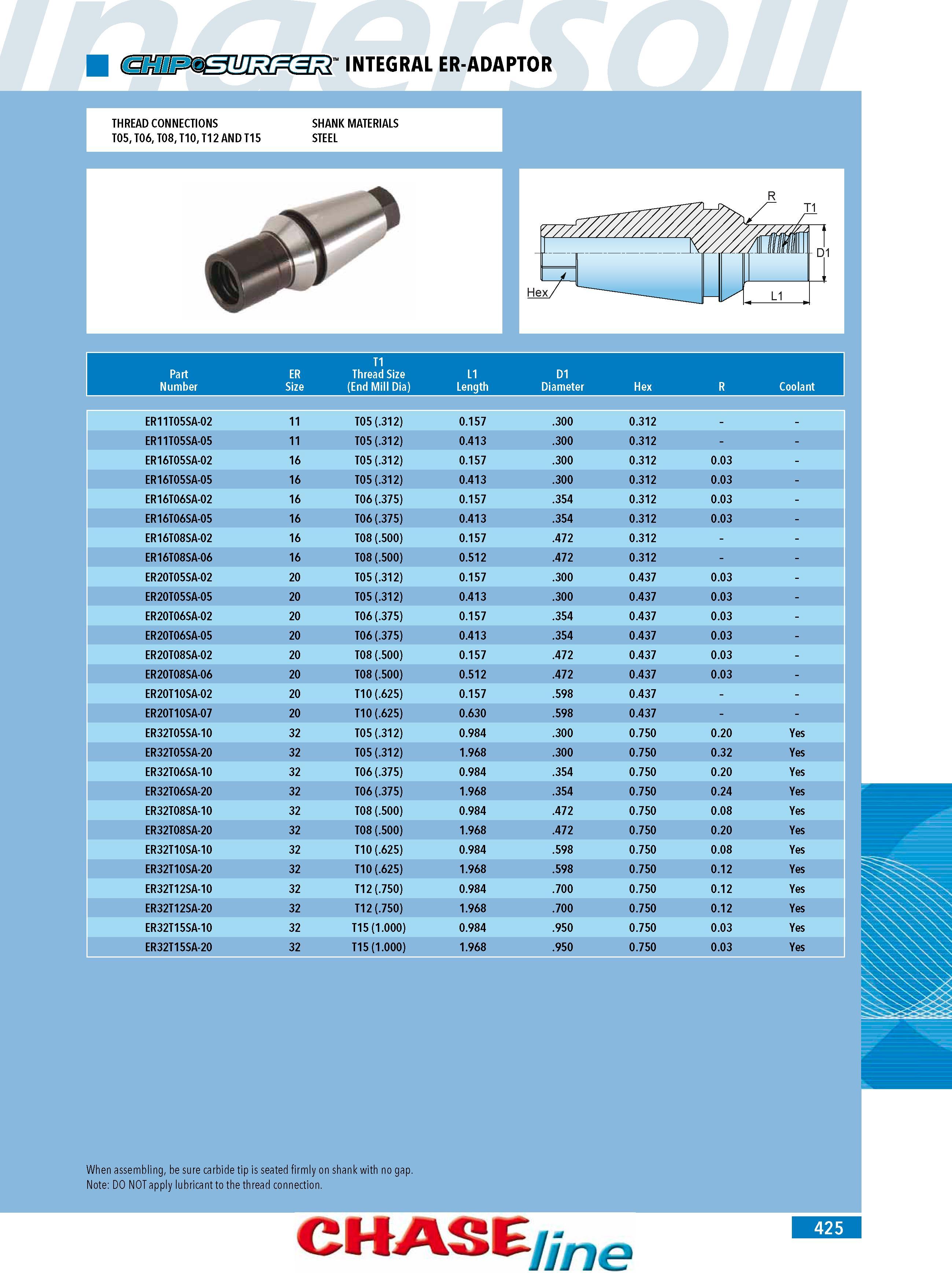

INTEGRAL ER-ADAPTOR THREAD CONNECTIONS SHANK MATERIALS T05 T06 T08 T10 T12 AND T15 STEEL T1 Part ER Thread Size L1 D1 Number Size (End Mill Dia) Length Diameter Hex R Coolant ER11T05SA-02 11 T05 (.312) 0.157 .300 0.312 ER11T05SA-05 11 T05 (.312) 0.413 .300 0.312 ER16T05SA-02 16 T05 (.312) 0.157 .300 0.312 0.03 - ER16T05SA-05 16 T05 (.312) 0.413 .300 0.312 0.03 - ER16T06SA-02 16 T06 (.375) 0.157 .354 0.312 0.03 - ER16T06SA-05 16 T06 (.375) 0.413 .354 0.312 0.03 - ER16T08SA-02 16 T08 (.500) 0.157 .472 0.312 ER16T08SA-06 16 T08 (.500) 0.512 .472 0.312 ER20T05SA-02 20 T05 (.312) 0.157 .300 0.437 0.03 - ER20T05SA-05 20 T05 (.312) 0.413 .300 0.437 0.03 - ER20T06SA-02 20 T06 (.375) 0.157 .354 0.437 0.03 - ER20T06SA-05 20 T06 (.375) 0.413 .354 0.437 0.03 - ER20T08SA-02 20 T08 (.500) 0.157 .472 0.437 0.03 - ER20T08SA-06 20 T08 (.500) 0.512 .472 0.437 0.03 - ER20T10SA-02 20 T10 (.625) 0.157 .598 0.437 ER20T10SA-07 20 T10 (.625) 0.630 .598 0.437 ER32T05SA-10 32 T05 (.312) 0.984 .300 0.750 0.20 Yes ER32T05SA-20 32 T05 (.312) 1.968 .300 0.750 0.32 Yes ER32T06SA-10 32 T06 (.375) 0.984 .354 0.750 0.20 Yes ER32T06SA-20 32 T06 (.375) 1.968 .354 0.750 0.24 Yes ER32T08SA-10 32 T08 (.500) 0.984 .472 0.750 0.08 Yes ER32T08SA-20 32 T08 (.500) 1.968 .472 0.750 0.20 Yes ER32T10SA-10 32 T10 (.625) 0.984 .598 0.750 0.08 Yes ER32T10SA-20 32 T10 (.625) 1.968 .598 0.750 0.12 Yes ER32T12SA-10 32 T12 (.750) 0.984 .700 0.750 0.12 Yes ER32T12SA-20 32 T12 (.750) 1.968 .700 0.750 0.12 Yes ER32T15SA-10 32 T15 (1.000) 0.984 .950 0.750 0.03 Yes ER32T15SA-20 32 T15 (1.000) 1.968 .950 0.750 0.03 Yes When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. CHASE me 425
