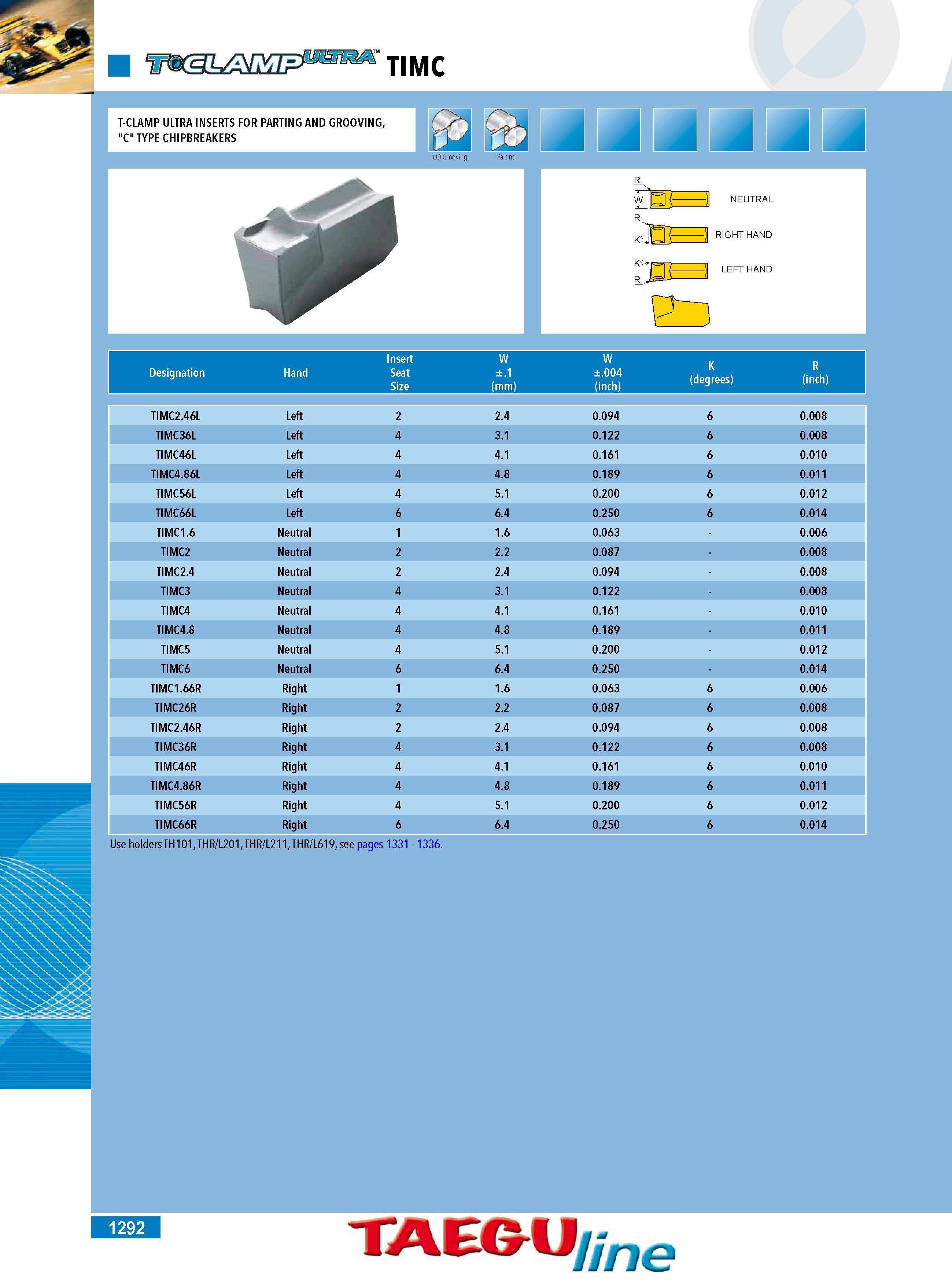

TIMC T-CLAMP ULTRA INSERTS FOR PARTING AND GROOVING "C"TYPE CHIPBREAKERS OD Grooving Designation Hand Insert Seat Size W .1 (mm) W .004 (inch) K (degrees) R (inch) TIMC2.46L Left 2 2.4 0.094 6 0.008 TIMC36L Left 4 3.1 0.122 6 0.008 TIMC46L Left 4 4.1 0.161 6 0.010 TIMC4.86L Left 4 4.8 0.189 6 0.011 TIMC56L Left 4 5.1 0.200 6 0.012 TIMC66L Left 6 6.4 0.250 6 0.014 TIMC1.6 Neutral 1 1.6 0.063 0.006 TIMC2 Neutral 2 2.2 0.087 0.008 TIMC2.4 Neutral 2 2.4 0.094 0.008 TIMC3 Neutral 4 3.1 0.122 0.008 TIMC4 Neutral 4 4.1 0.161 0.010 TIMC4.8 Neutral 4 4.8 0.189 0.011 TIMC5 Neutral 4 5.1 0.200 0.012 TIMC6 Neutral 6 6.4 0.250 0.014 TIMC1.66R Right 1 1.6 0.063 6 0.006 TIMC26R Right 2 2.2 0.087 6 0.008 TIMC2.46R Right 2 2.4 0.094 6 0.008 TIMC36R Right 4 3.1 0.122 6 0.008 TIMC46R Right 4 4.1 0.161 6 0.010 TIMC4.86R Right 4 4.8 0.189 6 0.011 TIMC56R Right 4 5.1 0.200 6 0.012 TIMC66R Right 6 6.4 0.250 6 0.014 Use holders TH101 THR L201 THR L211 THR L619 see pages 1331 - 1336. TAEGU line 1292
