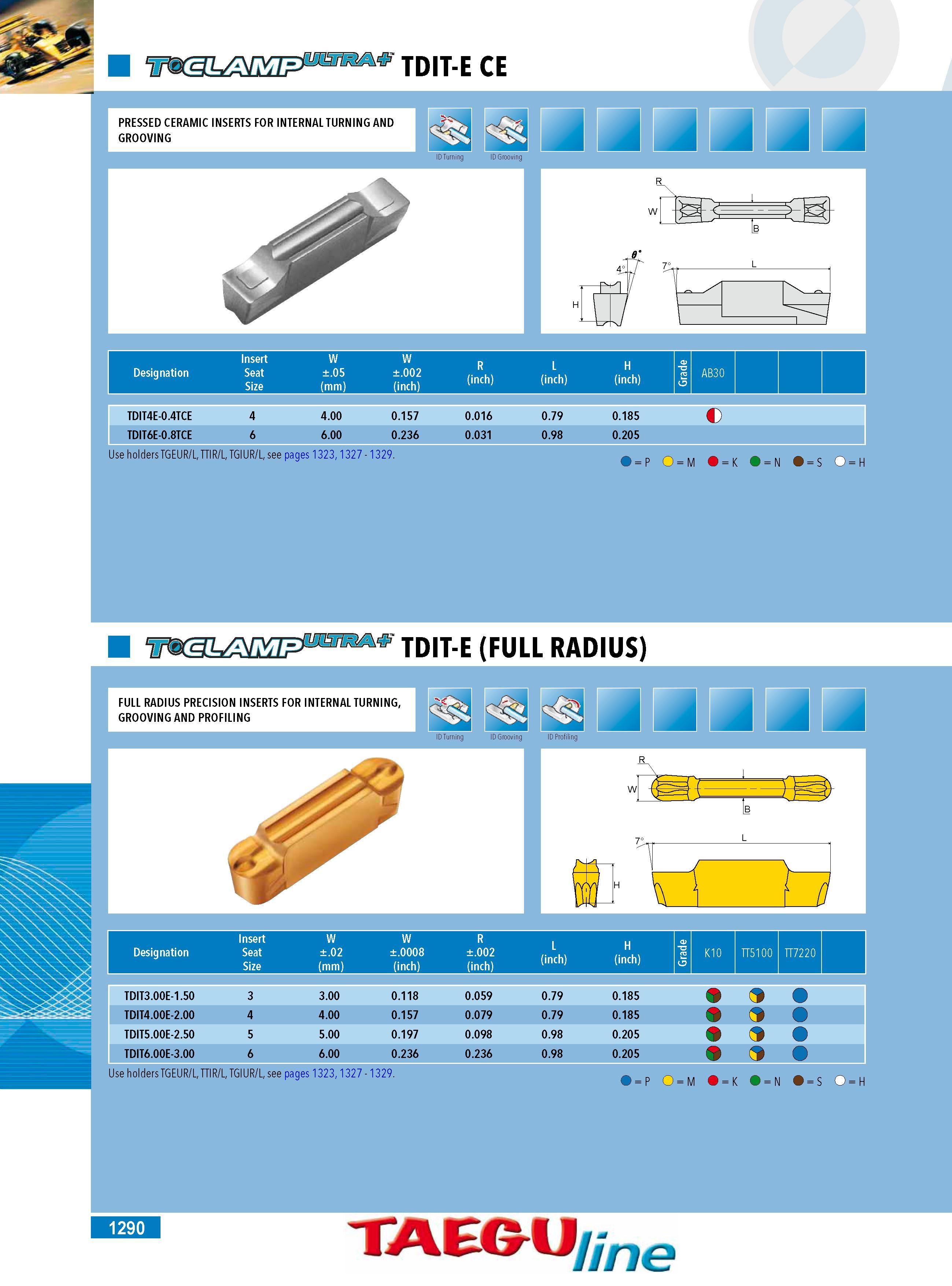

TDIT-E CE PRESSED CERAMIC INSERTS FOR INTERNAL TURNING AND GROOVING Designation ID Turning ID Grooving TDIT4E-0.4TCE 4 4.00 0.157 0.016 0.79 0.185 c TDIT6E-0.8TCE 6 6.00 0.236 0.031 0.98 0.205 Use holders TGEUR L TTIR L TGIUR L see pages 1323 1327 - 1329. O P O M K O N S O H TDIT-E (FULL RADIUS) FULL RADIUS PRECISION INSERTS FOR INTERNAL TURNING GROOVING AND PROFILING Designation ME 1 K10 TT5100 TT7220 (inch) TDIT3.00E-1.50 3 3.00 0.118 0.059 0.79 0.185 TDIT4.00E-2.00 4 4.00 0.157 0.079 0.79 0.185 o TDIT5.00E-2.50 5 5.00 0.197 0.098 0.98 0.205 TDIT6.00E-3.00 6 6.00 0.236 0.236 0.98 0.205 o Use holders TGEUR L TTIR L TGIUR L see pages 1323 1327 1329. P K M N S O H Insert Seat Size W .05 (mm) W .002 (inch) R (inch) L (inch) H (inch) AB30 Insert Seat Size W .02 (mm) W :.0008 (inch) R .002 (inch) L (inch) TAEGU line 1290
