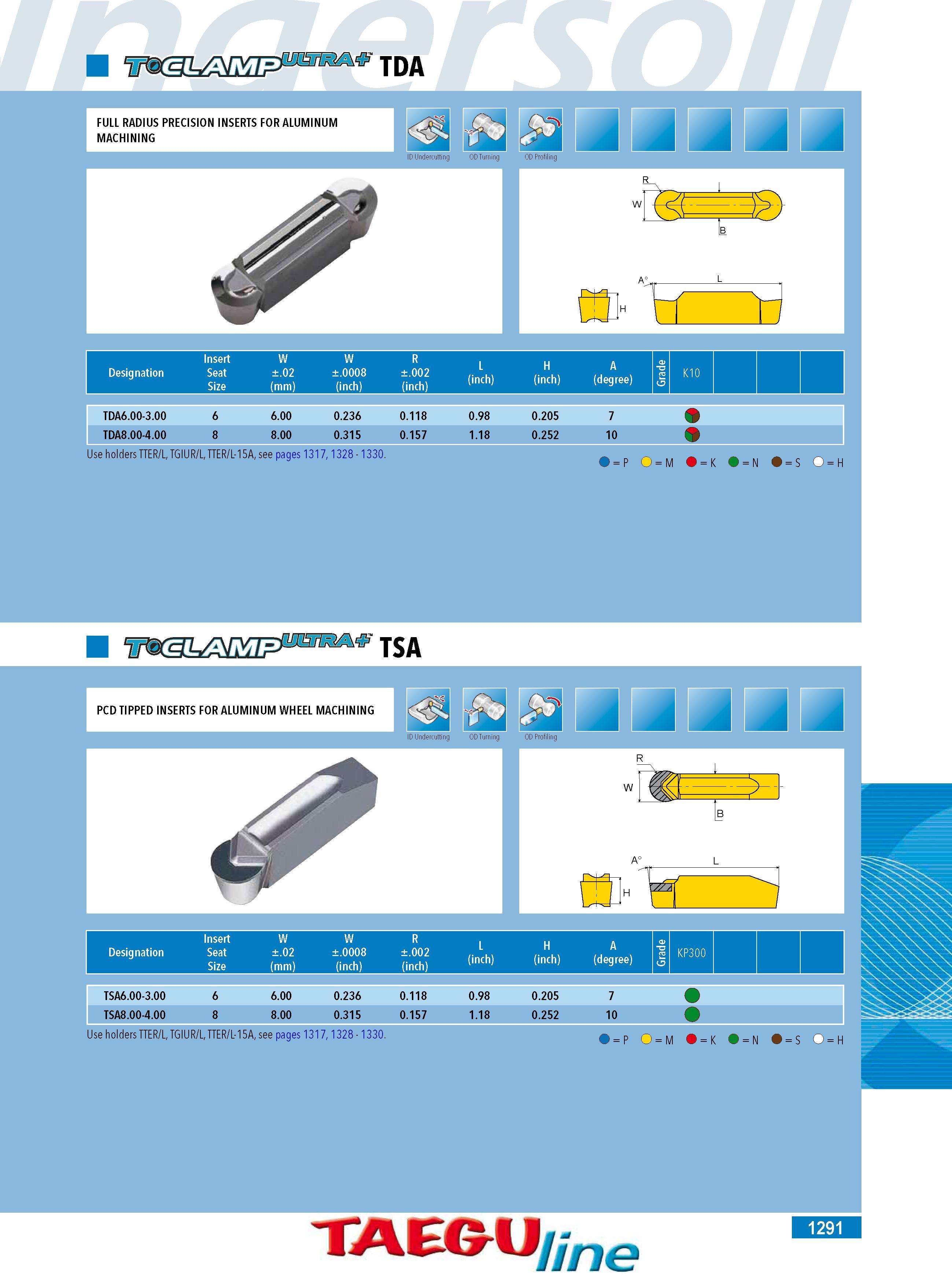

1289 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.1291

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 1291 1289 Lab2u

Insert W W R L (inch) H (inch) e Designation Seat Size .02 (mm) .0008 (inch) .002 (inch) A (degree) d Gr K10 TDA6.00-3.00 6 6.00 0.236 0.118 0.98 0.205 7 TDA8.00-4.00 8 8.00 0.315 0.157 1.18 0.252 10 Use holders TTER L TGIUR L TTER L-15A see pages 1317 1328 - 1330. O P O M O K O N O S O H Designation A (degree) TSA6.00-3.00 6 6.00 0.236 0.118 0.98 0.205 7 TSA8.00-4.00 8 8.00 0.315 0.157 1.18 0.252 10 Use holders TTER L TGIUR L TTER L-15A see pages 1317 1328 - 1330. ) P O M O K ) S O H Insert Seat Size W .02 (mm) W .0008 (inch) R .002 (inch) L (inch) H (inch) N TAEGU line 1291
