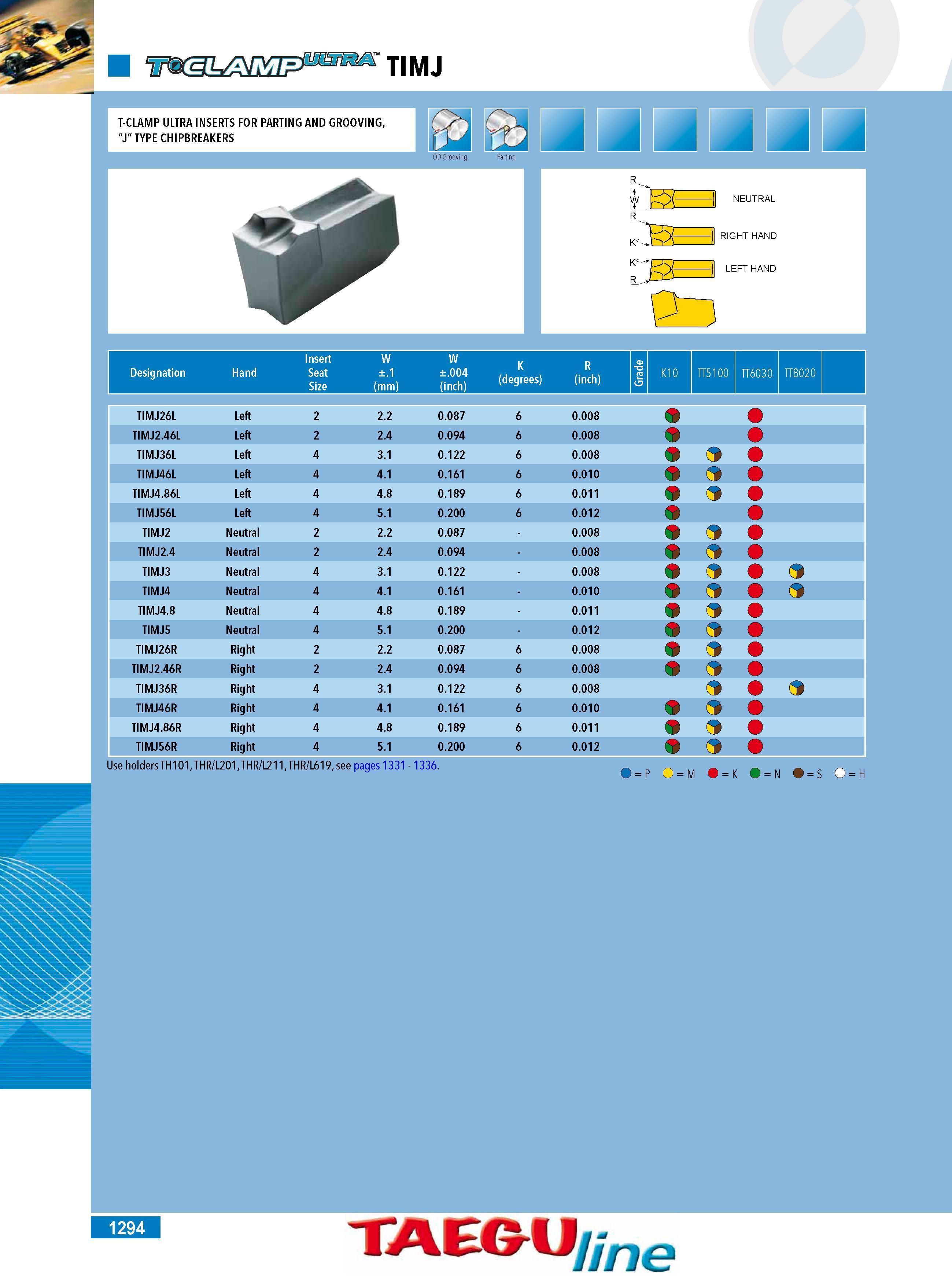

TIMJ T-CLAMP ULTRA INSERTS FOR PARTING AND GROOVING "J" TYPE CHIPBREAKERS OD Grooving Insert W W K R Designation S ( -1) Jj-C-h. (d.g..s1 (inh) Grade K10 TIMJ26L Left 2 2.2 0.087 6 0.008 TIMJ2.46L Left 2 2.4 0.094 6 0.008 TIMJ36L Left 4 3.1 C.122 6 0.008 TIMJ46L Left 4 4.1 0.161 6 0.010 TIMJ4.86L Left 4 4.8 0.189 6 0.011 o TIMJ56L Left 4 5.1 0.200 6 0.012 TIMJ2 Neutral 2 2.2 0.087 0.008 TIMJ2.4 Neutral 2 2.4 0.094 0.008 TIMJ3 Neutral 4 3.1 0.122 0.008 TIMJ4 Neutral 4 4.1 0.161 0.010 TIMJ4.8 Neutral 4 4.8 0.189 0.011 TIMJ5 Neutral 4 5.1 0.200 0.012 TIMJ26R Right 2 2.2 0.087 6 0.008 TIMJ2.46R Right 2 2.4 0.094 6 0.008 TIMJ36R Right 4 3.1 0.122 6 0.008 TIMJ46R Right 4 4.1 0.161 6 0.010 TIMJ4.86R Right 4 4.8 0.189 6 0.011 TIMJ56R Right 4 5.1 0.200 6 0.012 Use holders TH101 THR L201 THR L211 THR L619 see pages 1331 6. 3 3 P K O N S 0 H TAEGU line 1294
